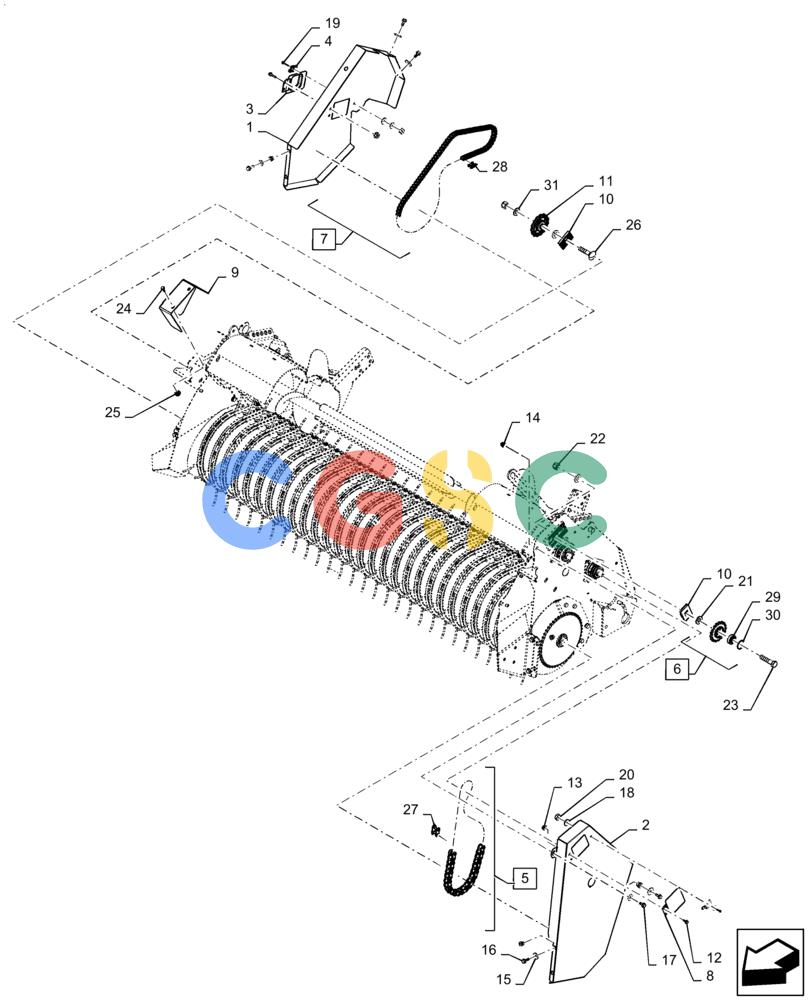

| 1. |
47455602
|
[1] |
SHIELD
|
NH
RH
|
| 2. |
47638748
|
[1] |
SHIELD
|
NH
LH
|
| 3. |
84290564
|
[1] |
COVER
|
NH
|
| 4. |
47325
|
[2] |
CLIP
|
NH
|
| 5. |
84547340
|
[1] |
CHAIN,RC50, 110 Links x 15.88mm = 1746.25mm
|
PLO
RC50, 110 Pitches, Inc 27
|
| 6. |
84553965
|
[1] |
GEAR
|
NH
17T, RC50, Inc 29, 30
|
| 7. |
133027
|
[1] |
CHAIN
|
PA
RC60, 82 Pitches, Inc 28 Superseded by part number: 86502675
|
| 8. |
84290571
|
[1] |
PLATE
|
NH
|
| 9. |
84475446
|
[1] |
COVER
|
PLO
Top
|
| 10. |
47377066
|
[1] |
PLATE
|
NH
|
| 11. |
84602660
|
[1] |
IDLER
|
NH
|
| 12. |
86050272
|
[4] |
BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd
|
NH
|
| 13. |
9804276
|
[4] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 14. |
86610200
|
[8] |
THREADED INSERT,M8 x 1.25
|
NH
|
| 15. |
322358
|
[8] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 16. |
9671714
|
[4] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 17. |
9804258
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 18. |
9824840
|
[4] |
WASHER,4.3mm ID x 9mm OD x 0.8mm Thk
|
NH
Superseded by part number: 89824840
|
| 19. |
385683
|
[2] |
BOLT,M4 x 0.7 x 12.92mm, Cl 8.8
|
NH
Superseded by part number: 5113531
|
| 20. |
100012
|
[2] |
NUT,M4 x 0.7, Cl 8
|
NH
Superseded by part number: 57121
|
| 21. |
87365
|
[4] |
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
|
NH
|
| 22. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 23. |
120092
|
[1] |
BOLT,M16 x 70mm, Cl 8.8
|
NH
|
| 24. |
9804256
|
[2] |
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
|
NH
|
| 25. |
86610198
|
[2] |
INSERT,M6 x 1
|
NH
|
| 26. |
47487761
|
[1] |
CARRIAGE BOLT,Reg Sq Nk, M16 x 2 x 70mm, Cl 8.8
|
NH
|
| 27. |
84545610
|
[1] |
CONNECTING LINK
|
PLO
|
| 28. |
84134452
|
[1] |
CONNECTING LINK,RC60, 3/4" Pitch
|
NH
|
| 29. |
66553
|
[1] |
BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W
|
NH
|
| 30. |
300644
|
[1] |
SNAP RING,M40, Internal
|
NH
|
| 31. |
140048
|
[1] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
