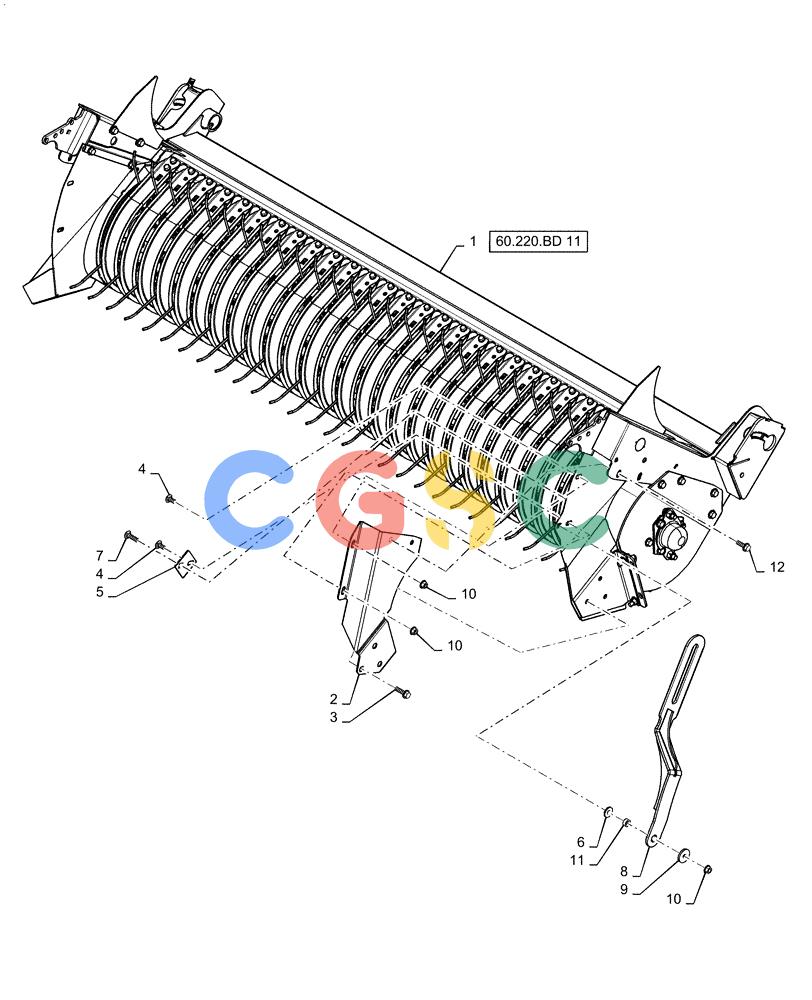

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (60.220.BD[10]) - VAR - 726916 - 1.8M PICKUP MOUNTING, OVERSHOT FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
1022 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9804262
|
[1] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 2. |
84353327
|
[1] |
MOUNT
|
NH
LH
|
| 3. |
86511845
|
[3] |
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
|
GI
|
| 4. |
120041
|
[2] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 5. |
84569145
|
[1] |
MOUNT
|
NH
|
| 6. |
29962
|
[1] |
WASHER
|
NH
|
| 7. |
412183
|
[1] |
CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8
|
DUB
Superseded by part number: 9833222
|
| 8. |
84544942
|
[1] |
LINK
|
NH
|
| 9. |
213404
|
[1] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
|
| 10. |
9804278
|
[3] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 11. |
87020910
|
[1] |
SPACER,10.4mm ID x 19mm OD x 8.9mm Thk
|
PA
|
