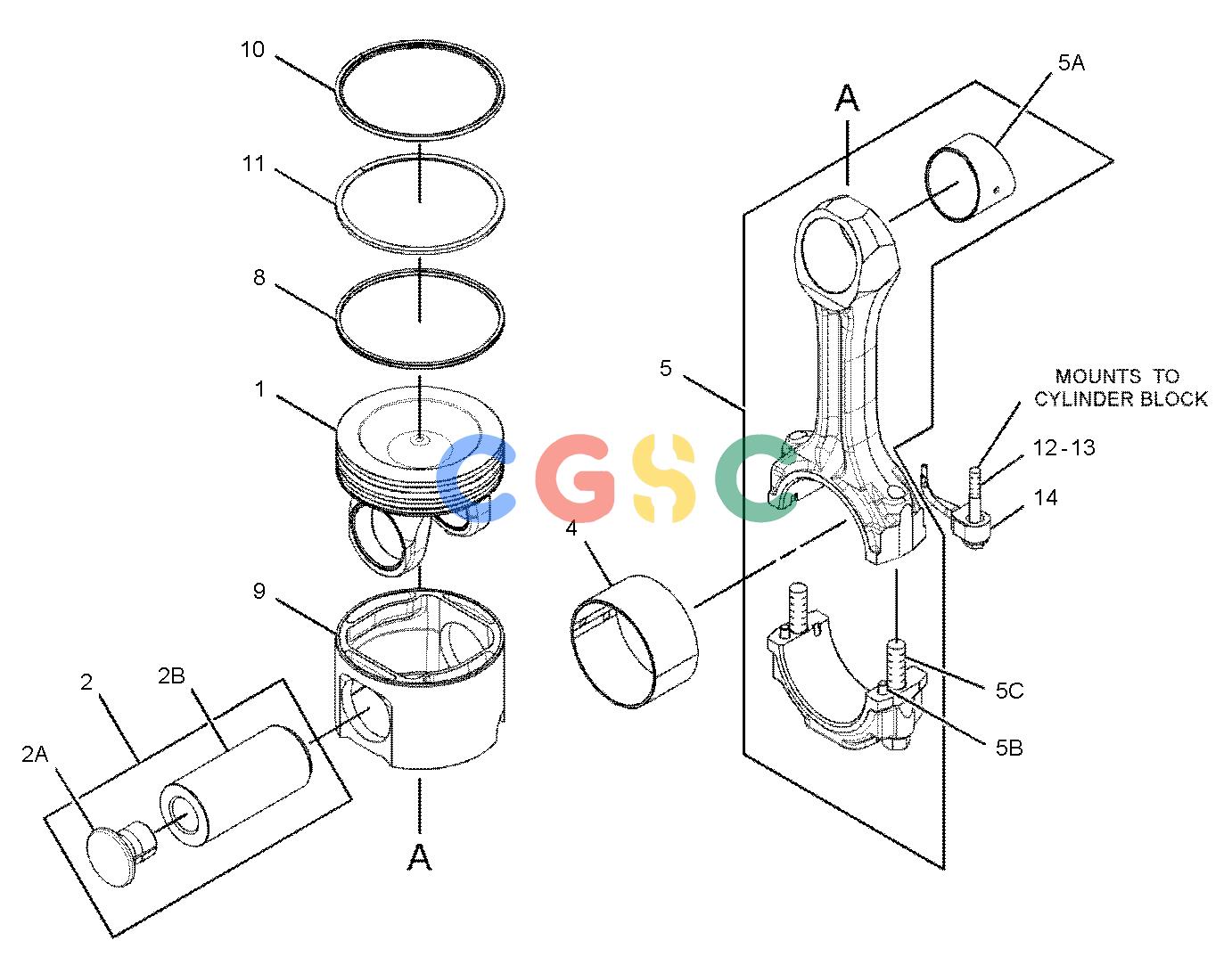

卡特零件查询（725） 132-3203: PISTON & ROD GP
广数供应链运营团队, 14 02月, 2025，浏览：
417 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 133-7098 | [1] | CROWN AS-PISTON | |
| 2. | 197-9335 | [1] | PIN AS | |
| 2A. | 6I-2720 | [2] | PLUG-PIN | |
| 2B. | 168-7276 | [1] | PIN-PISTON | |
| 4. | 217-0577 | [1] | BEARING-CONNECTING ROD(STANDARD) | |
| | 128-0390AB | | BEARING-CONNECTING ROD(0.51-MM US) | |
| | 128-0391AB | | BEARING-CONNECTING ROD(0.76-MM US) | |
| 5. | 155-6629 | [1] | ROD AS-CONNECTING | |
| 5A. | 7W-5844 | [1] | BEARING | |
| 5B. | 219-4458 | [2] | PIN-DOWEL | |
| 5C. | 7C-8639M | [2] | BOLT-CONNECTING ROD | |
| 8. | 4P-1659 | [1] | RING-PISTON(OIL) | |
| 9. | 238-2710 | [1] | SKIRT-PISTON | |
| 10. | 168-7212 | [1] | RING-PISTON(TOP) | |
| 11. | 109-5319 | [1] | RING-PISTON(INTERMEDIATE) | |
| 12. | 8T-0100M | [1] | BOLT(M8X1.25X60-MM) | |
| 13. | 3E-4352 | [1] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 14. | 274-1587 | [1] | TUBE AS-OIL JET | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
