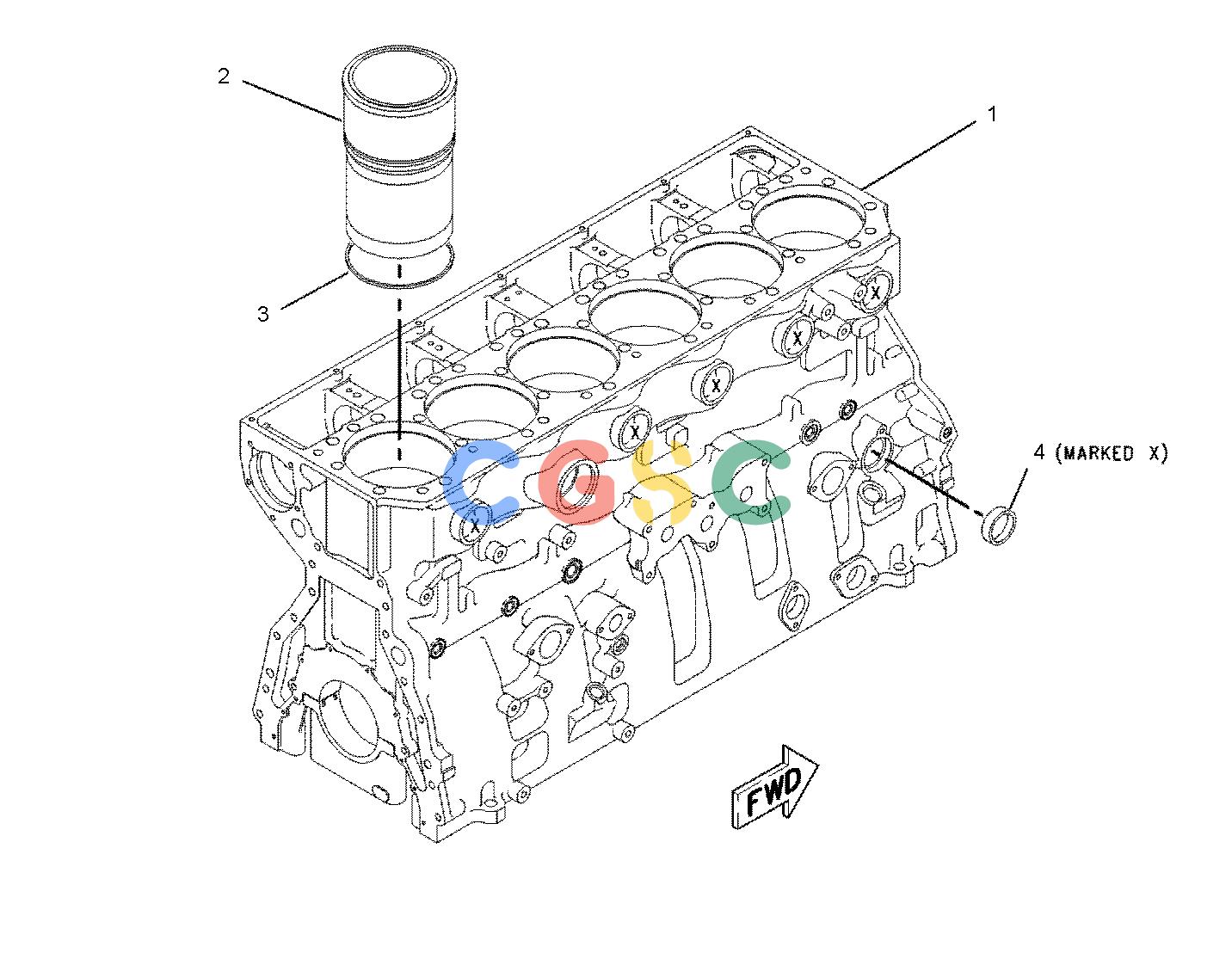

卡特零件查询（725） 204-3450: CYLINDER BLOCK AS
广数供应链运营团队, 14 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 200-2054Y | [1] | CYLINDER BLOCK AS | |
| 2. | 469-5314 | [6] | LINER-CYLINDER | |
| 3. | 437-1409 | [6] | SEAL-LINER | |
| 4. | 4F-5695 | [6] | PLUG-CUP | |
| | | | |
| | | | AVAILABLE REPLACEMENT PART(S): |
| | 168-7363ABJ | | SHIM-LINER(0.22-MM THK) | |
| | 168-7364ABJ | | SHIM-LINER(0.25-MM THK) | |
| | 168-7365ABJ | | SHIM-LINER(0.28-MM THK) | |
| | 168-7366ABJ | | SHIM-LINER(0.5-MM THK) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | USED TO SET LINER PROTRUSION ON REBUILT MID-SUPPORT LINER ENGINE |
| | Y | | SEPARATE ILLUSTRATION |
