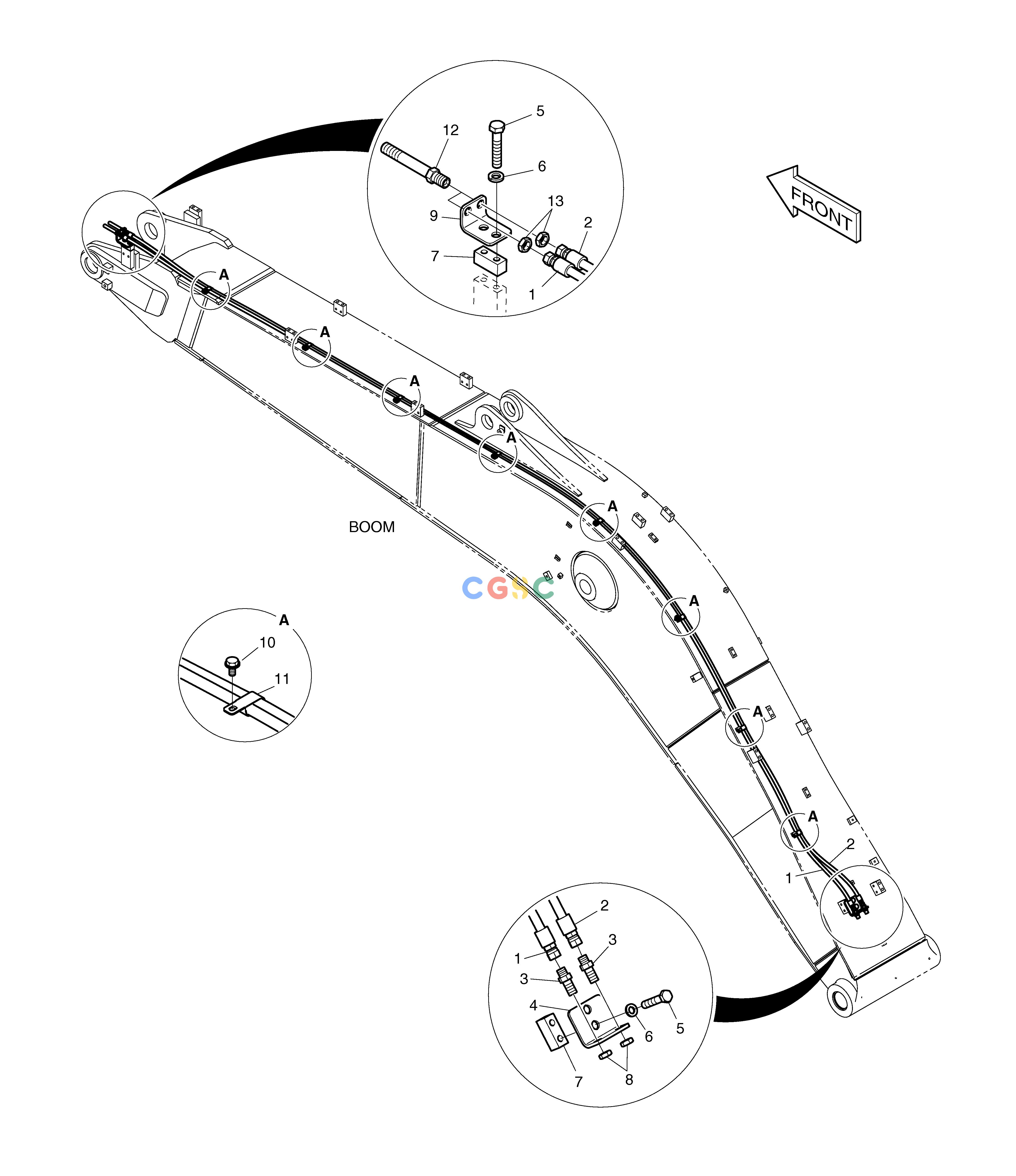

斗山零件查询BOOM PIPING - BOOM 5.7m(QUICK CLAMP) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1041837
|
[-] |
BOOM PIPING-QUICK FIT
|
|
| -. |
420212-07959
|
[-] |
|
|
| 1. |
DS2053849
|
[1] |
HOSE
|
|
| 10. |
K1001029
|
[8] |
BOLT
|
|
| 11. |
DS2805009
|
[8] |
CLIP
|
|
| 12. |
K1000356
|
[2] |
ADAPTER
|
|
| 13. |
121-00010D7
|
[2] |
NUT
|
|
| 2. |
DS2053953
|
[1] |
HOSE
|
|
| 3. |
181-00078D5
|
[2] |
ADAPTER
|
|
| 4. |
195-00163
|
[1] |
BRACKET
|
|
| 5. |
S0563366
|
[4] |
BOLT
|
|
| 6. |
120804-00080
|
[4] |
WASHER
|
|
| 7. |
K1004006
|
[2] |
PLATE
|
|
| 8. |
121-00010D1
|
[2] |
NUT
|
|
| 9. |
K1010847
|
[1] |
BRACKET
|
|
