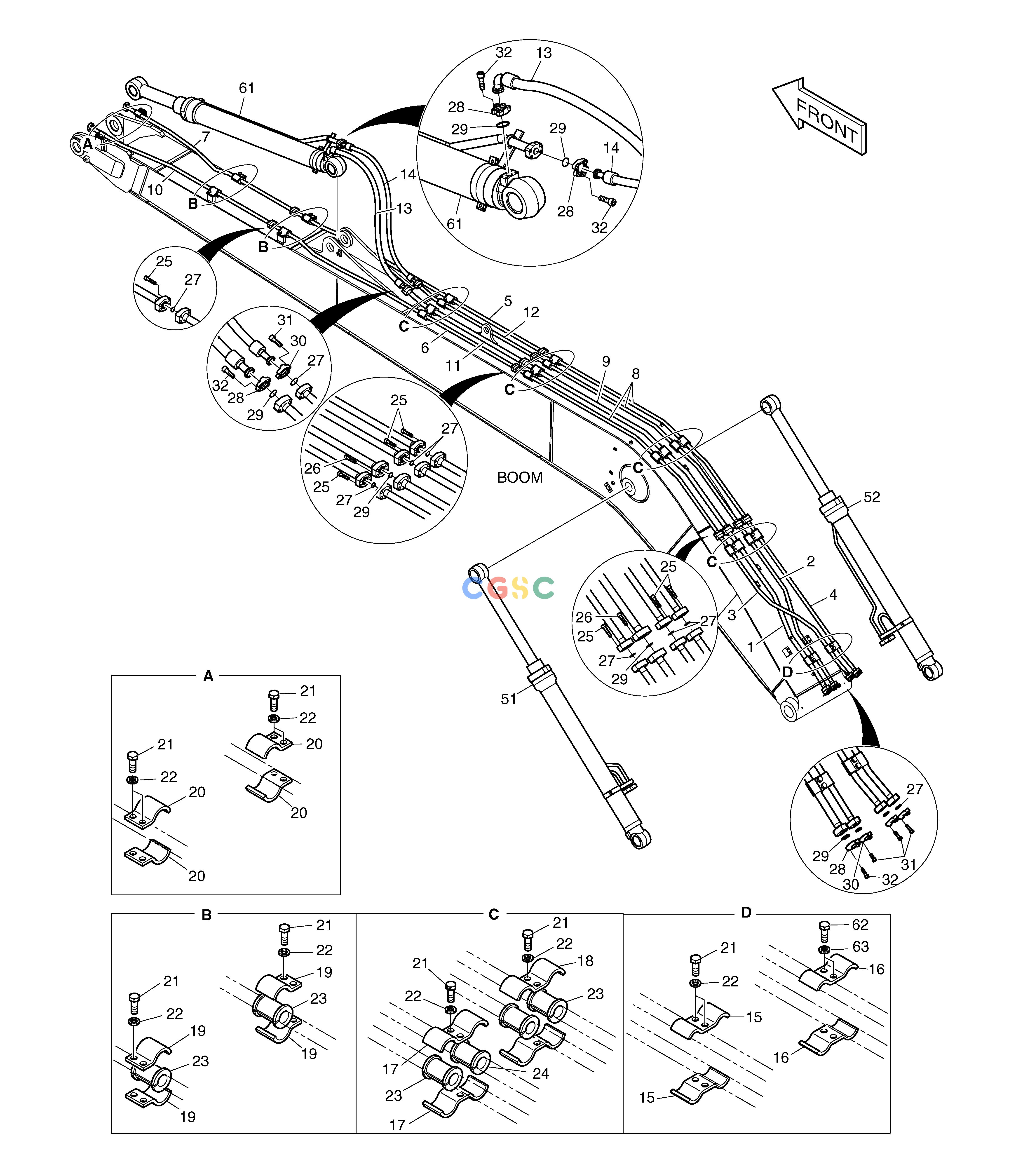

斗山零件查询BOOM PIPING - BOOM 8.5m DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
900 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1045837
|
[-] |
BOOM PIPING
|
|
| 1. |
K1045852
|
[1] |
PIPE
|
|
| 10. |
K1018109
|
[1] |
PIPE
|
|
| 11. |
K1018709
|
[1] |
PIPE
|
|
| 12. |
K1018710
|
[1] |
PIPE
|
|
| 13. |
DS2040637
|
[1] |
HOSE
|
|
| 14. |
DS2038226
|
[1] |
HOSE
|
|
| 15. |
124-00367
|
[2] |
CLAMP;PIPE
|
|
| 16. |
124-00300
|
[2] |
CLAMP;PIPE
|
|
| 17. |
124-00368
|
[8] |
CLAMP;PIPE
|
|
| 18. |
K1011211
|
[8] |
CLAMP
|
|
| 19. |
124-00302
|
[8] |
CLAMP;PIPE
|
|
| 2. |
K1045853
|
[1] |
PIPE
|
|
| 20. |
124-00303
|
[4] |
CLAMP
|
|
| 21. |
S0562766
|
[18] |
BOLT
|
|
| 22. |
120804-00080
|
[18] |
WASHER
|
|
| 23. |
161-00574
|
[16] |
RUBBER
|
180308-00411
|
| 23. |
180308-00411
|
[16] |
|
|
| 24. |
161-00281
|
[4] |
RUBBER
|
180308-00235
|
| 24. |
180308-00235
|
[4] |
|
|
| 25. |
S2212566
|
[32] |
BOLT
|
|
| 26. |
S2212666
|
[8] |
BOLT;SOCKET M10X1.5X50
|
|
| 27. |
2180-1026D2
|
[12] |
O-RING
|
|
| 28. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 29. |
2180-1026D19
|
[6] |
O-RING
|
|
| 3. |
K1045854
|
[1] |
PIPE
|
|
| 30. |
2181-9079
|
[8] |
FLANGE
|
|
| 31. |
S2212366
|
[16] |
BOLT
|
|
| 32. |
S2212466
|
[16] |
BOLT
|
|
| 4. |
K1045855
|
[1] |
PIPE
|
|
| 5. |
K1018659
|
[1] |
PIPE
|
|
| 51. |
400309-00341B
|
[1] |
|
|
| 51. |
400309-00341C
|
[1] |
|
|
| 51. |
K1044989B
|
[1] |
CYLINDER;BOOM (LH)
|
400309-00341
|
| 51. |
400309-00341
|
[1] |
|
400309-00341A
|
| 51. |
400309-00341A
|
[1] |
|
400309-00341B
|
| 52. |
400309-00343B
|
[1] |
|
|
| 52. |
400309-00343C
|
[1] |
|
|
| 52. |
K1044990B
|
[1] |
CYLINDER;BOOM (RH)
|
400309-00343
|
| 52. |
400309-00343
|
[1] |
|
400309-00343A
|
| 52. |
400309-00343A
|
[1] |
|
400309-00343B
|
| 6. |
K1018660
|
[1] |
PIPE
|
|
| 61. |
400305-00219B
|
[1] |
|
|
| 61. |
K1044991A
|
[1] |
CYLINDER;ARM
|
400305-00219
|
| 61. |
400305-00219
|
[1] |
|
400305-00219A
|
| 61. |
400305-00219A
|
[1] |
|
|
| 62. |
S0562766
|
[2] |
BOLT
|
|
| 63. |
120804-00080
|
[2] |
WASHER
|
|
| 7. |
K1018706
|
[1] |
PIPE
|
|
| 8. |
K1045856
|
[3] |
PIPE
|
|
| 9. |
K1045857
|
[1] |
PIPE
|
|
