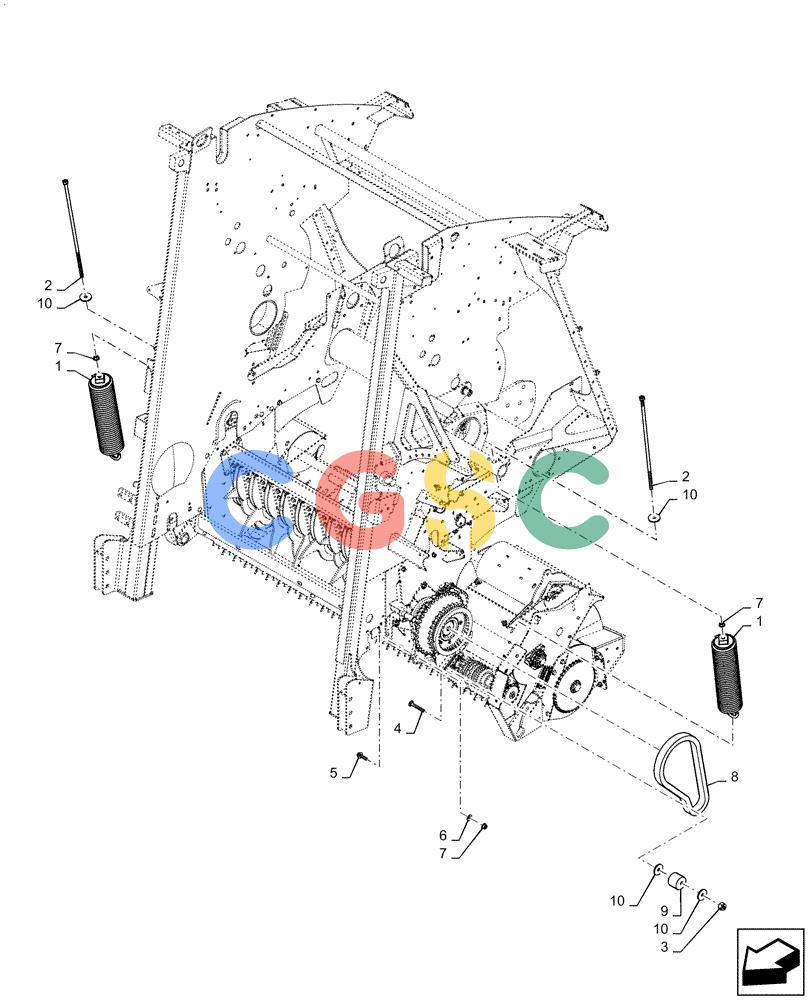

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (60.220.BD [04]) - VAR - 726805 - 1.8M PICKUP, FLOTATION Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84472287
|
[2] |
SPRING
|
PLO
Assembly, Flotation
|
| 2. |
84423031
|
[2] |
THREADED ROD,M12 x 1.75 x 541mm L
|
PLO
|
| 3. |
100038
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 4. |
300662
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8
|
NH
|
| 5. |
9804268
|
[8] |
BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 6. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 7. |
9804279
|
[10] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 8. |
84300121
|
[1] |
CHAIN,RC80, 44 Links x 25.4mm = 1117.6mm
|
PLO
RC80, 44 Pitches, Incl 11
|
| 9. |
84351002
|
[1] |
IDLER,13.2mm ID x 60mm OD x 48mm L
|
PLO
|
| 10. |
29684
|
[4] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
|
| 11. |
84356440
|
[1] |
LINK,25.4mm Pitch
|
NH
|
