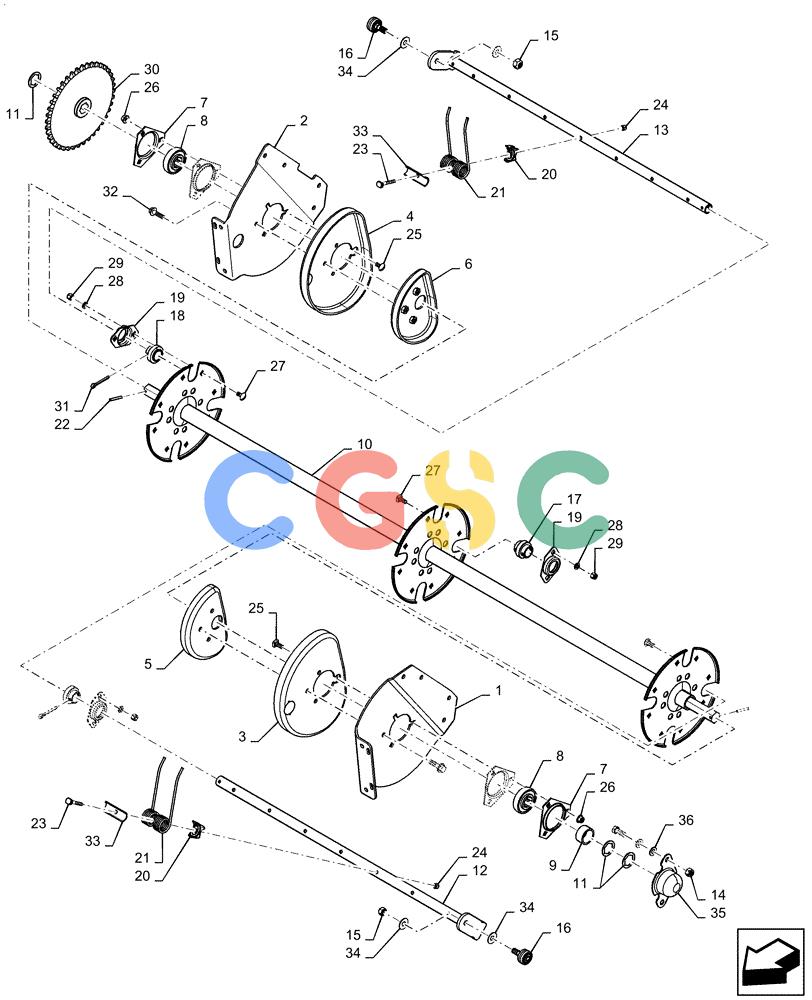

| 1. |
84532236
|
[1] |
PLATE
|
PLO
LH
|
| 2. |
84424256
|
[1] |
PLATE
|
PLO
RH
|
| 3. |
84291845
|
[1] |
CAM
|
NH
LH Outer
|
| 4. |
84291843
|
[1] |
CAM
|
NH
RH Outer
|
| 5. |
84327846
|
[1] |
CAM
|
NH
LH Inner
|
| 6. |
84327847
|
[1] |
CAM
|
NH
RH Inner
|
| 7. |
578189
|
[4] |
FLANGE
|
NH
Superseded by part number: 86620026
|
| 8. |
86594423
|
[2] |
BEARING,28.6mm Hex x 72mm OD x 25mm W
|
NH
Superseded by part number: 84330069
|
| 9. |
84427184
|
[1] |
SPACER,37.3mm ID x 45.3mm OD x 22.5mm Thk
|
PLO
|
| 10. |
84296759
|
[1] |
REEL
|
NH
|
| 11. |
47447659
|
[3] |
SPACER,44 mm OD x 2mm Thk
|
NH
|
| 12. |
84296780
|
[4] |
ARM
|
NH
LH
|
| 13. |
84296784
|
[4] |
ARM
|
NH
RH
|
| 14. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 15. |
88130
|
[8] |
NUT,1/2"-20, GC
|
NH
|
| 16. |
84350126
|
[8] |
CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L
|
NH
|
| 17. |
84266808
|
[4] |
BEARING ASSY,27.28mm ID x 47mm OD x 12.7mm W
|
NH
|
| 18. |
86641856
|
[8] |
BEARING,27.1 mm ID x 47 mm OD x 25.4 mm
|
PA
Superseded by part number: 54770
|
| 19. |
54695
|
[12] |
BEARING HOUSING
|
NH
|
| 20. |
84427925
|
[56] |
TOOTH
|
PLO
|
| 21. |
84133738
|
[56] |
TINE
|
PLO
|
| 22. |
47432155
|
[2] |
COILED PIN,7/32" OD x 1-3/4" L
|
NH
|
| 23. |
130891
|
[56] |
BOLT,Tine, 5/16" - 18 x 2"
|
NH
Superseded by part number: 87642989
|
| 24. |
86629544
|
[56] |
NUT,5/16” – 18, GR B
|
NH
Superseded by part number: 280736
|
| 25. |
86633356
|
[2] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 26. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 27. |
86508748
|
[24] |
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5
|
BAS
|
| 28. |
80680
|
[24] |
LOCK WASHER,3/8 0.381 CST ZND
|
NH
|
| 29. |
9637692
|
[24] |
NUT,3/8"-16, GB
|
NH
|
| 30. |
87053413
|
[1] |
SPROCKET
|
NH
40T, RC60
|
| 31. |
136521
|
[12] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
|
| 32. |
86511845
|
[6] |
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
|
GI
|
| 33. |
134921
|
[56] |
BRACKET
|
NH
Superseded by part number: 87643386
|
| 34. |
84420719
|
[16] |
WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk
|
PLO
|
| 35. |
47390411
|
[1] |
COVER
|
NH
|
| 36. |
87364
|
[4] |
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
|
NH
|
