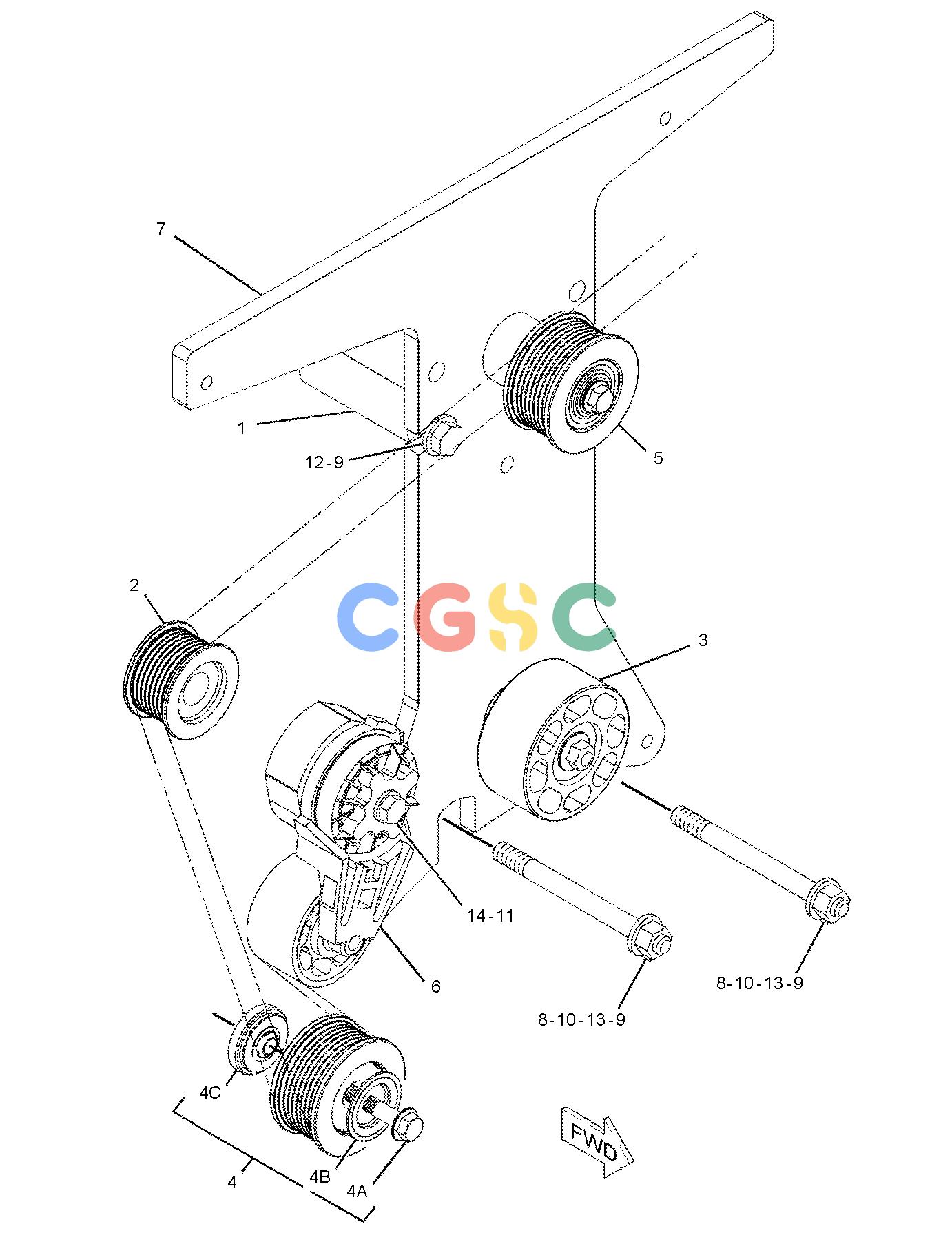

卡特零件查询（725） 196-6920: BELT TENSIONER GP
广数供应链运营团队, 14 02月, 2025，浏览：
855 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9Y-5631 | [2] | SPACER(13X26X89.9-MM THK) | |
| 2. | 123-0790 | [1] | PULLEY(8-GROOVE) | |
| 3. | 142-2011Y | [1] | PULLEY GP-IDLER | |
| 4. | 173-1498 | [1] | PULLEY AS-IDLER(8-GROOVE) | |
| 4A. | 151-2900M | [1] | BOLT(M10X1.5X54.25-MM) | |
| 4B. | 166-6358 | [1] | COVER-DUST | |
| 4C. | 173-1500 | [1] | SPACER(10.4X45.1X1.8-MM THK) | |
| 5. | 230-4171 | [1] | PULLEY AS-IDLER | |
| 6. | 190-0649 | [1] | BELT TENSIONER | |
| 7. | 196-6921 | [1] | PLATE | |
| 8. | 123-0764M | [2] | STUD-TAPERLOCK(M12X1.75X138.7-MM) | |
| 9. | 5P-8245 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 5R-7137 | [2] | WASHER-SEALING | |
| 11. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 12. | 6V-8004M | [2] | BOLT(M12X1.75X120-MM) | |
| 13. | 6V-8149M | [2] | NUT(M12X1.75-THD) | |
| 14. | 8T-0643M | [1] | BOLT(M10X1.5X80-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
