神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (06-005) - AIR CLEARANCE INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
278 次

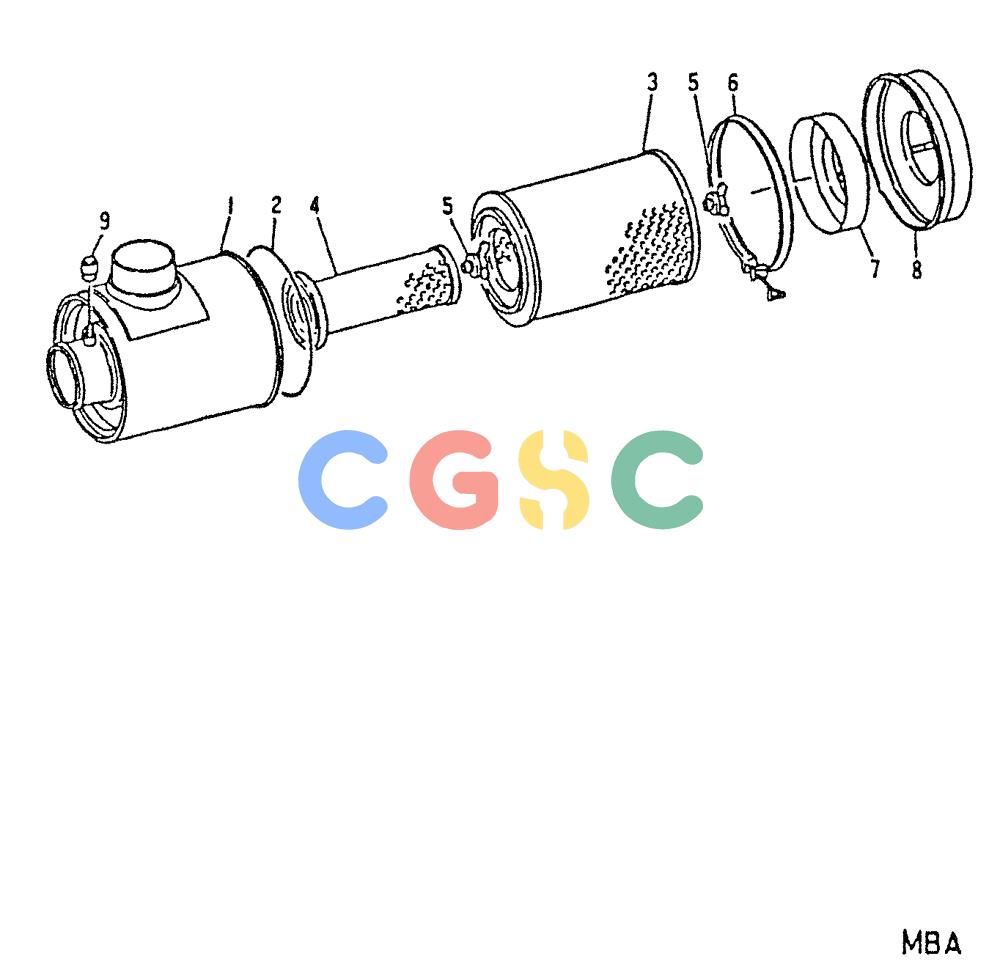

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VA3003090051 | [1] | AIR CLEANER ASSY AIR CLEANER ASSY FHG12 | AIR CLEANER ASSY AIR CLEANER ASSY FHG12 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY, A/CLNR |
| 2. | VA3113016900 | [1] | O-RING | |
| 3. | VA3113016400 | [1] | AIR CLEANER | KOBELEMENT, A/CLNR, OUTER |
| 4. | VA3003083100 | [1] | AIR FILTER | KOBELEMENT, A/CLHR, INNER |
| 5. | VAME063304 | [2] | NUT | KOBWING |
| 6. | VA3113016800 | [1] | CLAMP ASSY CLAMP | CLAMP ASSY CLAMP |
| 7. | VA3113016600 | [1] | BAFFLE | |
| 8. | VA3003093200 | [1] | CUP | |
| . . | VA3083030800 | [1] | PLATE, CAUTION | |
| 9. | VA3123011300 | [1] | INDICATOR | KOBINDICATOR, DUST, 762 |
