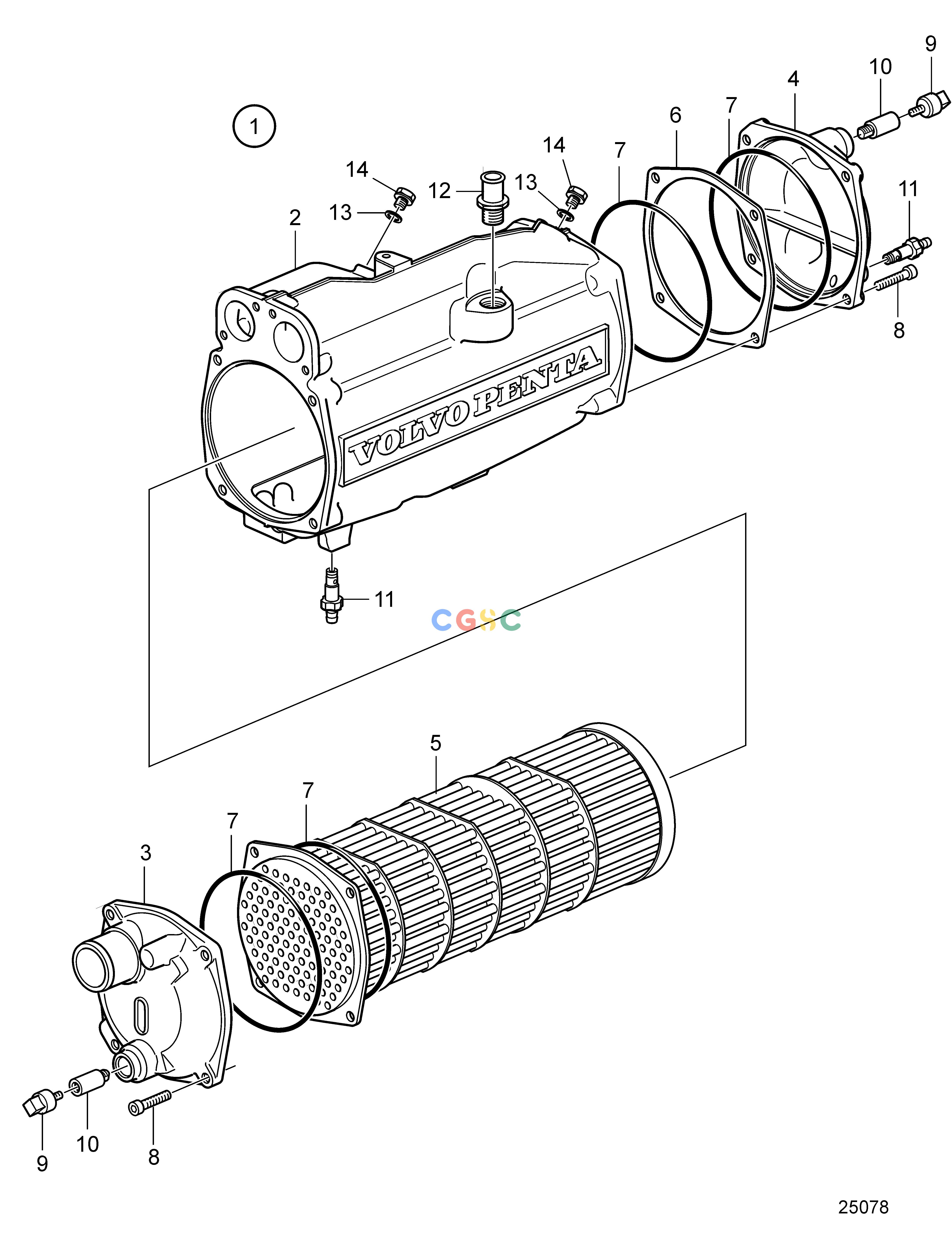

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Cooling SystemHeat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
276 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21146768
|
[1] |
Heat exchanger
|
|
| 2. |
|
|
|
|
| 3. |
3588542
|
[1] |
Cover
|
|
| 4. |
3588541
|
[1] |
Cover
|
|
| 5. |
3887309
|
[1] |
Heat exchanger eleme
|
|
| 6. |
3588537
|
[1] |
Spacer
|
|
| 7. |
3588536
|
[4] |
O-ring
|
|
| 8. |
3838337
|
[8] |
Screw
|
|
| 9. |
838928
|
[2] |
Plug
|
|
| 10. |
838929
|
[1] |
Anode
|
|
| 11. |
3583822
|
[2] |
Draining nipple
|
|
| 12. |
990410
|
[1] |
Hose nipple
|
|
| 13. |
947282
|
[2] |
Gasket
|
|
| 14. |
960629
|
[2] |
Plug
|
|
