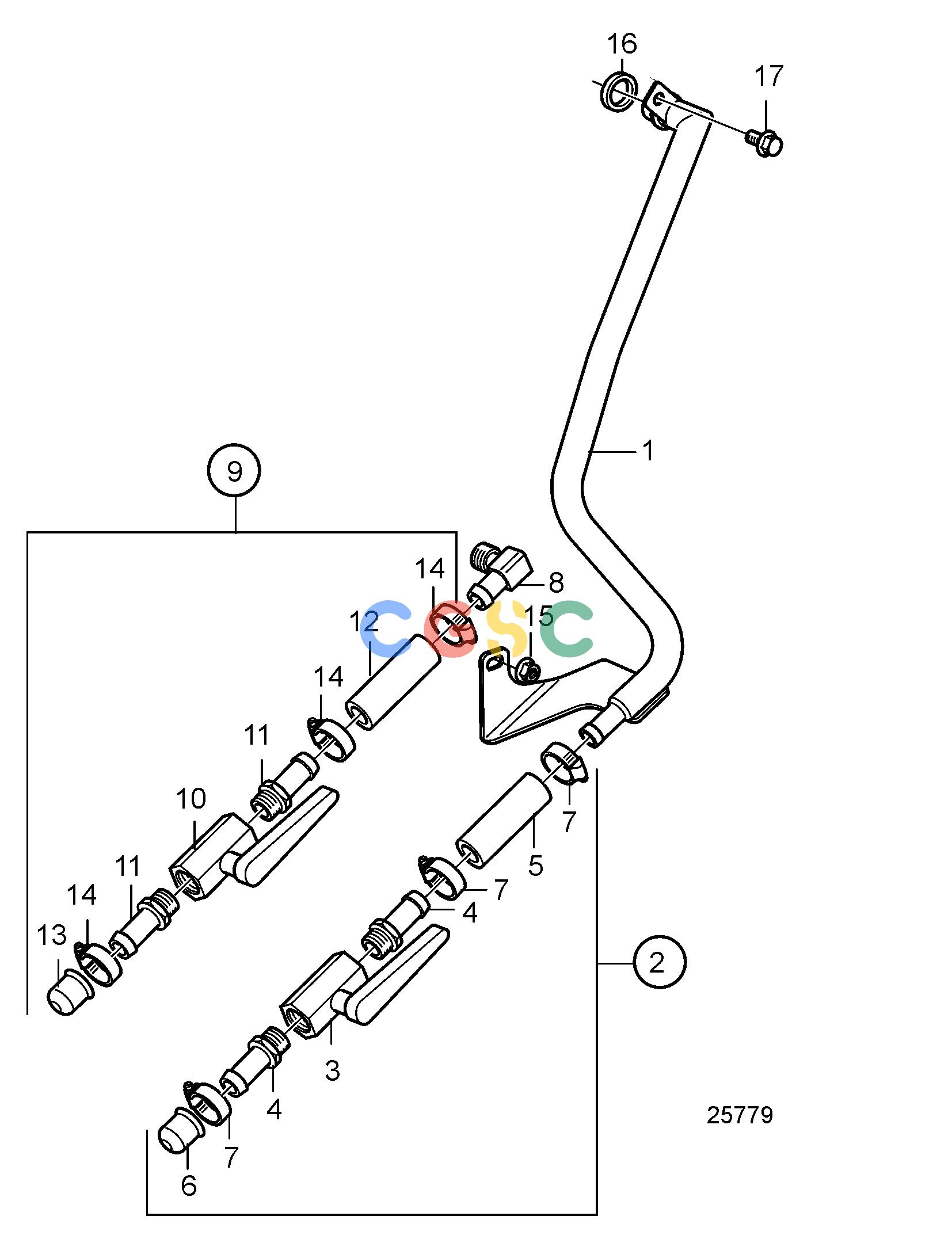

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Cooling SystemHot Water OutletEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
330 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21277742
|
[1] |
Water outlet pipe
|
|
| 2. |
21149299
|
[2] |
Valve
|
|
| 3. |
1140097
|
[1] |
Ball valve
|
|
| 4. |
961657
|
[2] |
Hose nipple
|
|
| 5. |
952969
|
[1] |
Hose
|
|
| 6. |
842235
|
[1] |
Cap
|
|
| 7. |
961665
|
[3] |
Hose clamp
|
|
| 8. |
992927
|
[1] |
Hose nipple
|
|
| 9. |
21149299
|
[1] |
Valve
|
|
| 10. |
1140097
|
[1] |
Ball valve
|
|
| 11. |
961657
|
[2] |
Hose nipple
|
|
| 12. |
952969
|
[1] |
Hose
|
|
| 13. |
842235
|
[1] |
Cap
|
|
| 14. |
961665
|
[3] |
Hose clamp
|
|
| 15. |
990940
|
[1] |
Flange nut
|
|
| 16. |
1547252
|
[1] |
Sealing ring
|
|
| 17. |
944926
|
[1] |
Flange screw
|
|
