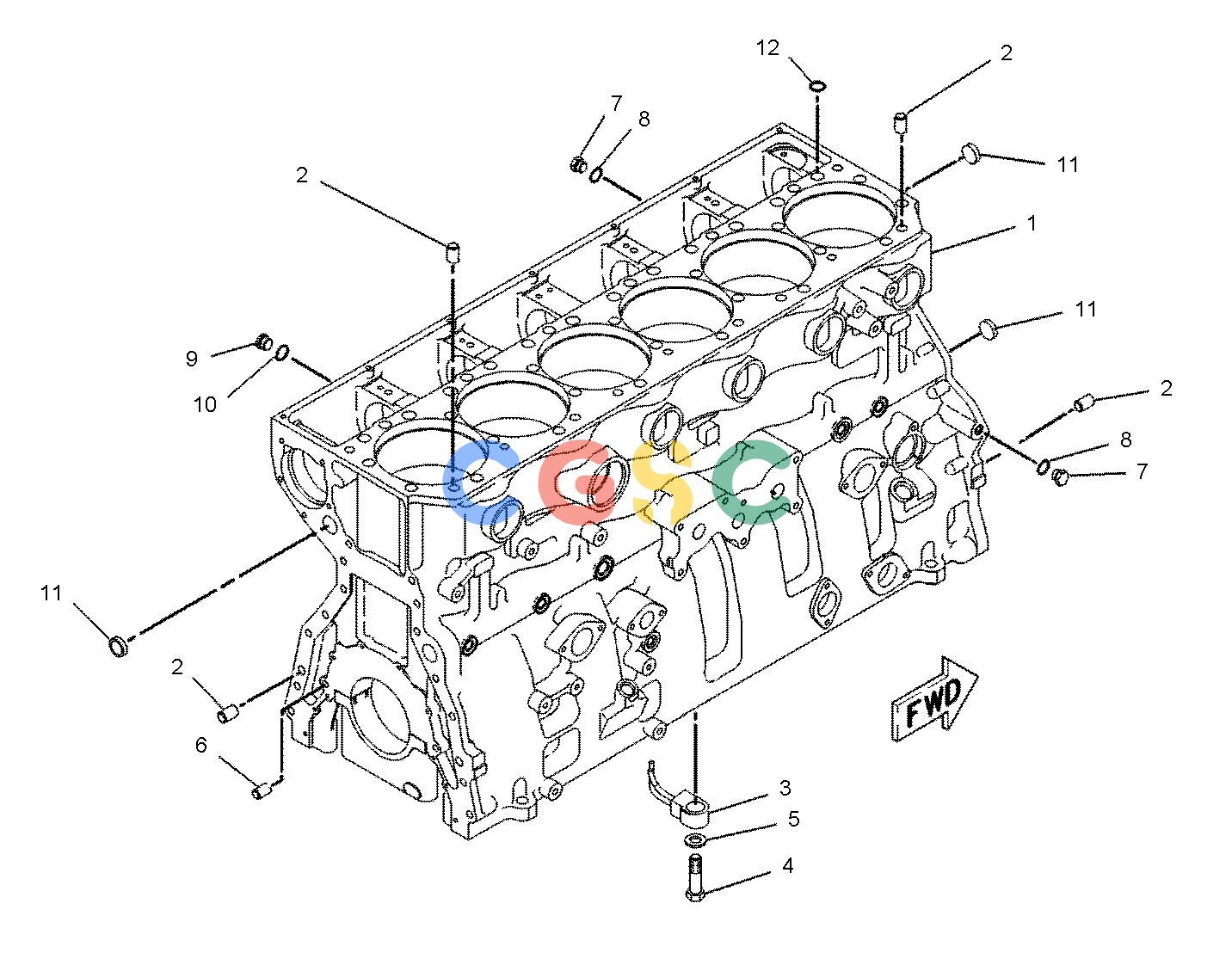

卡特零件查询（725） 115-2982: CYLINDER BLOCK GP
广数供应链运营团队, 14 02月, 2025，浏览：
503 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-2095CY | [1] | CYLINDER BLOCK AS | |
| 2. | 7N-5683 | [6] | DOWEL | |
| 3. | 7E-4043 | [6] | JET AS-PISTON COOLING | |
| 4. | 8T-0100M | [6] | BOLT(M8X1.25X60-MM) | |
| 5. | 3E-4352 | [6] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 6. | 6V-3538 | [2] | DOWEL | |
| 7. | 1N-5999 | [2] | PLUG-O-RING | |
| 8. | 5P-7813 | [2] | SEAL-O-RING | |
| 9. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 10. | 6V-5048 | [1] | SEAL-O-RING | |
| 11. | 3B-0623 | [3] | PLUG-CUP | |
| 12. | 4G-4972 | [6] | SEAL-O-RING | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
