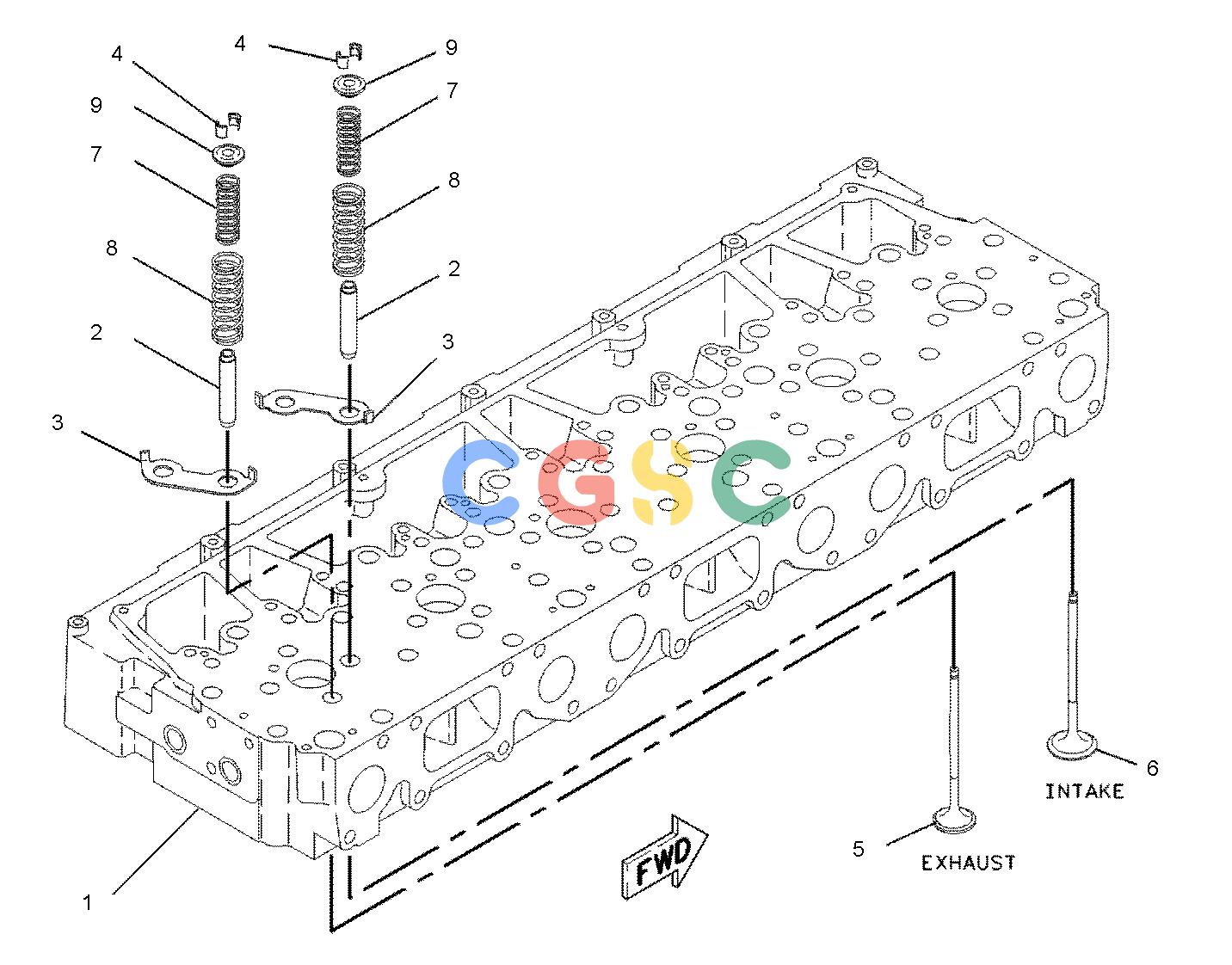

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-2150Y | [1] | CYLINDER HEAD AS | |
| 2. | 100-8150 | [24] | GUIDE-VALVE(STANDARD) | |
| | 103-0734ABF | | GUIDE-VALVE(0.127-MM OS) | |
| | 103-0735ABF | | GUIDE-VALVE(0.508-MM OS) | |
| 3. | 6I-1638 | [12] | BASE-INJECTOR POSITIONING | |
| 4. | 2A-4429 | [48] | LOCK-RETAINER | |
| 5. | 133-7029 | [12] | VALVE-EXHAUST | |
| 6. | 7E-9578 | [12] | VALVE-INLET | |
| 7. | 7W-7083 | [24] | SPRING-VALVE(INNER) | |
| 8. | 7W-7082 | [24] | SPRING-VALVE(OUTER) | |
| 9. | 6I-2663 | [24] | ROTOCOIL AS | |
| | | | (EACH INCLUDES) |
| | 6I-2662 | [1] | SHIELD | |
| | 7C-8581 | [1] | ROTOCOIL AS | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | F | | NOT SHOWN |
| | Y | | SEPARATE ILLUSTRATION |
