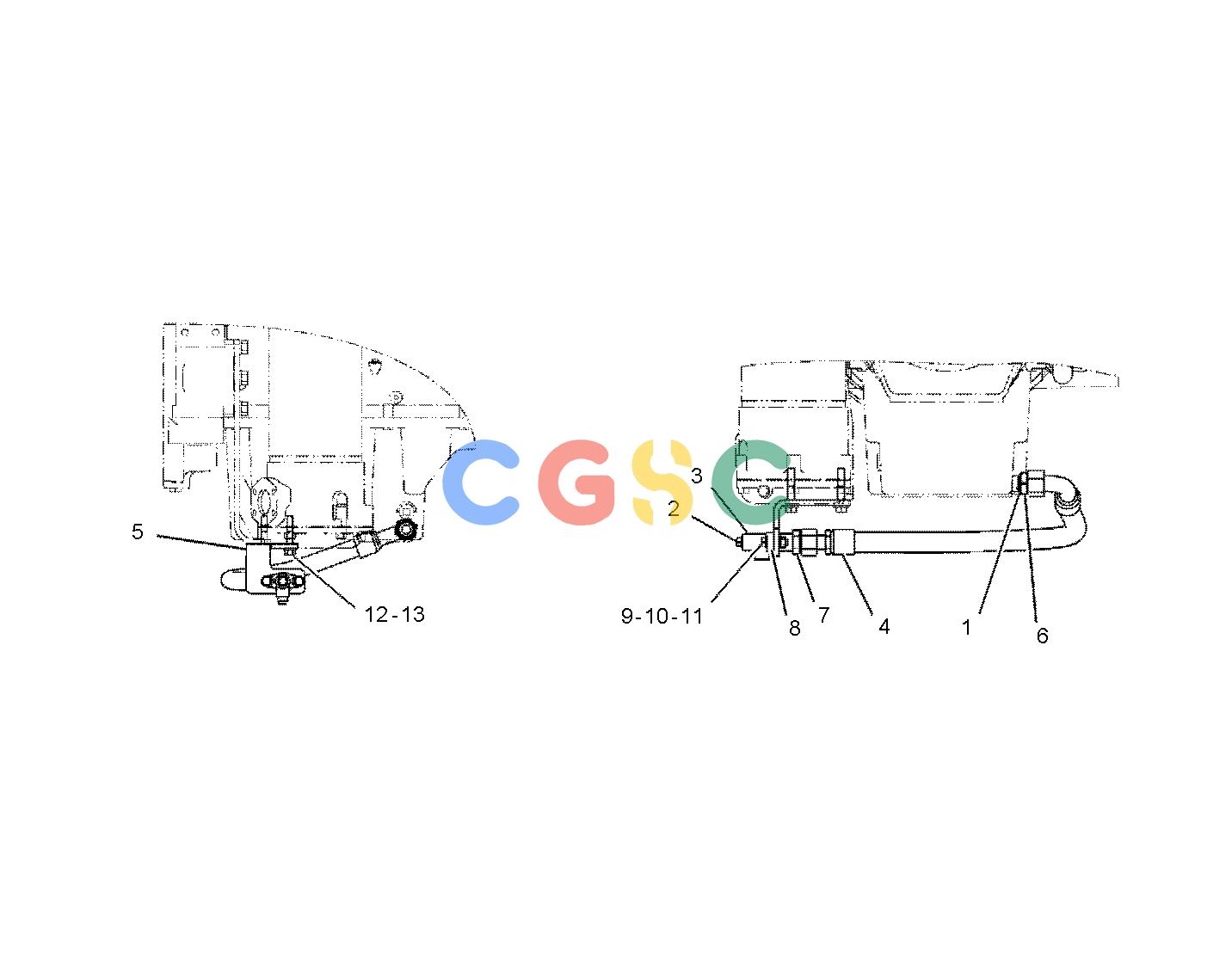

卡特零件查询（725） 149-0017: DRAIN GP-ENGINE OIL
广数供应链运营团队, 14 02月, 2025，浏览：
775 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-0453 | [1] | WASHER-BONDED | |
| 2. | 4B-7739 | [1] | PLUG-DRAIN(ENGINE OIL PAN) | |
| 3. | 8H-9819 | [1] | ADAPTER-PLUG | |
| 4. | 150-7954I | [1] | HOSE AS | |
| 5. | 175-2159 | [1] | BRACKET AS | |
| 6. | 175-0302 | [1] | ADAPTER | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 7. | 8C-3370 | [1] | CONNECTOR | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| 8. | 8H-9818 | [1] | GASKET | |
| 9. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 11. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 12. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 8T-9389 | [2] | BOLT(1/2-13X2.75-IN) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
