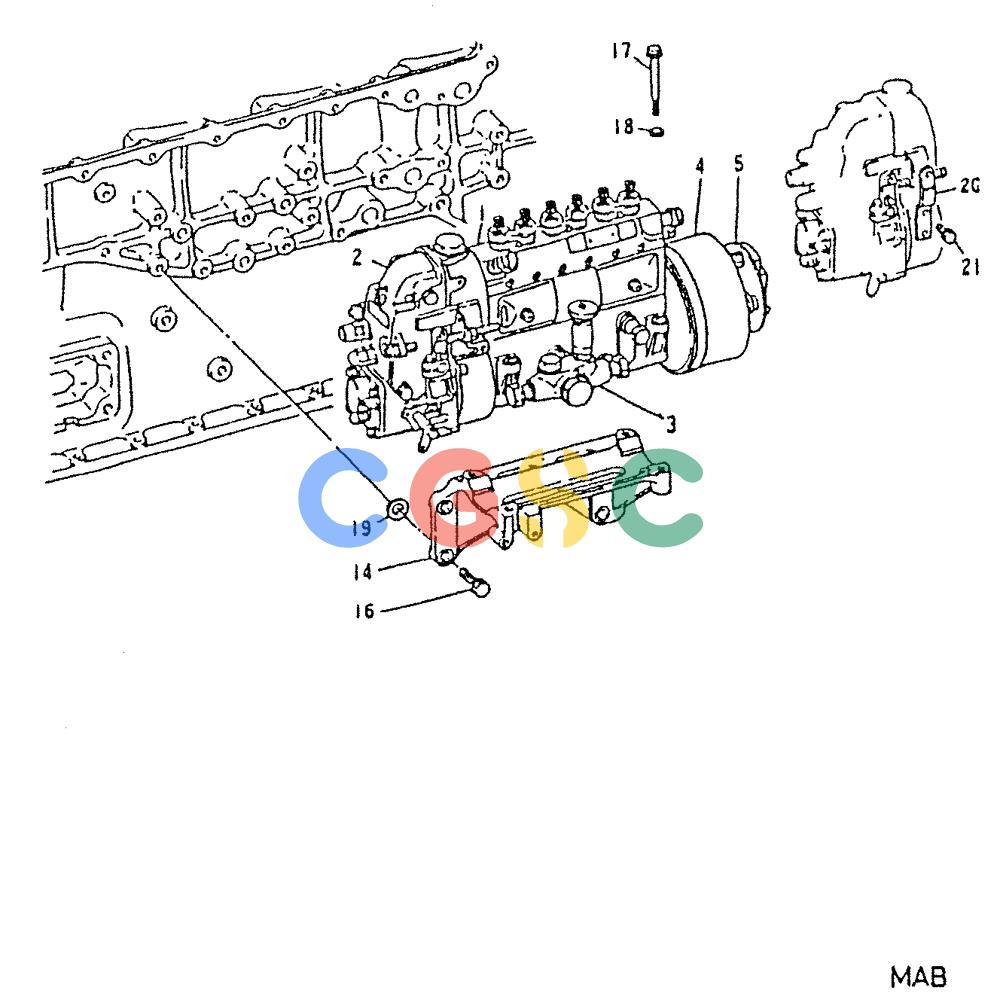

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (03-001) - FUEL INJECTION PUMP GENERAL 040-130A Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
558 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VAME059604 | [1] | ING PUMP ASSY GENERAL, (DKC 1016031790) | ING PUMP ASSY GENERAL, (DKC 1016031790) |
| 1. | VAME059655 | [1] | INJECTION PUMP ASSY, AD TYPE, Serial Range: GN040-GN131A | |
| 2. | VAME059656 | [1] | GOVERNOR | KOBRSV TYPE, Serial Range: GN040-GN132A |
| 3. | VA3096100700 | [1] | SENDER UNIT | KOBFUEL FEED PUMP ASSY, KE TYPE, (DKC 1052104150), Serial Range: GN040-GN133A Superseded by part number: VA1052104151 |
| 4. | VA3096100500 | [1] | TIMER | KOBAUTOMATIC TIMER ASSY, SA TYPE, Serial Range: GN040-GN134A |
| 5. | VAME056100 | [1] | COUPLING | KOBCOUPLING ASSY, Serial Range: GN040-GN135A |
| 14. | VAME056632 | [1] | BRACKET, I/P | |
| 16. | VAMH000707 | [4] | BOLT | KOBBOLT, FLANGE 10X30 |
| 17. | VAMF140240 | [4] | BOLT | KOBBOLT, FLANGE 8X75 |
| 18. | VA3006101501 | [4] | WASHER | KOB Superseded by part number: VA3006101500 |
| 19. | VA3016101200 | [1] | SHIM | KOBT=0.1 Superseded by part number: 133429A1 |
| 19. | VA3116101800 | [1] | SHIM | KOBT=0.2 Superseded by part number: 3116101800 |
| 20. | VAME059619 | [1] | LEVER | KOBLEVER, GOV |
| 21. | VAMF241226 | [2] | BOLT | KOBBOLT, W/WSR 6X18 |
