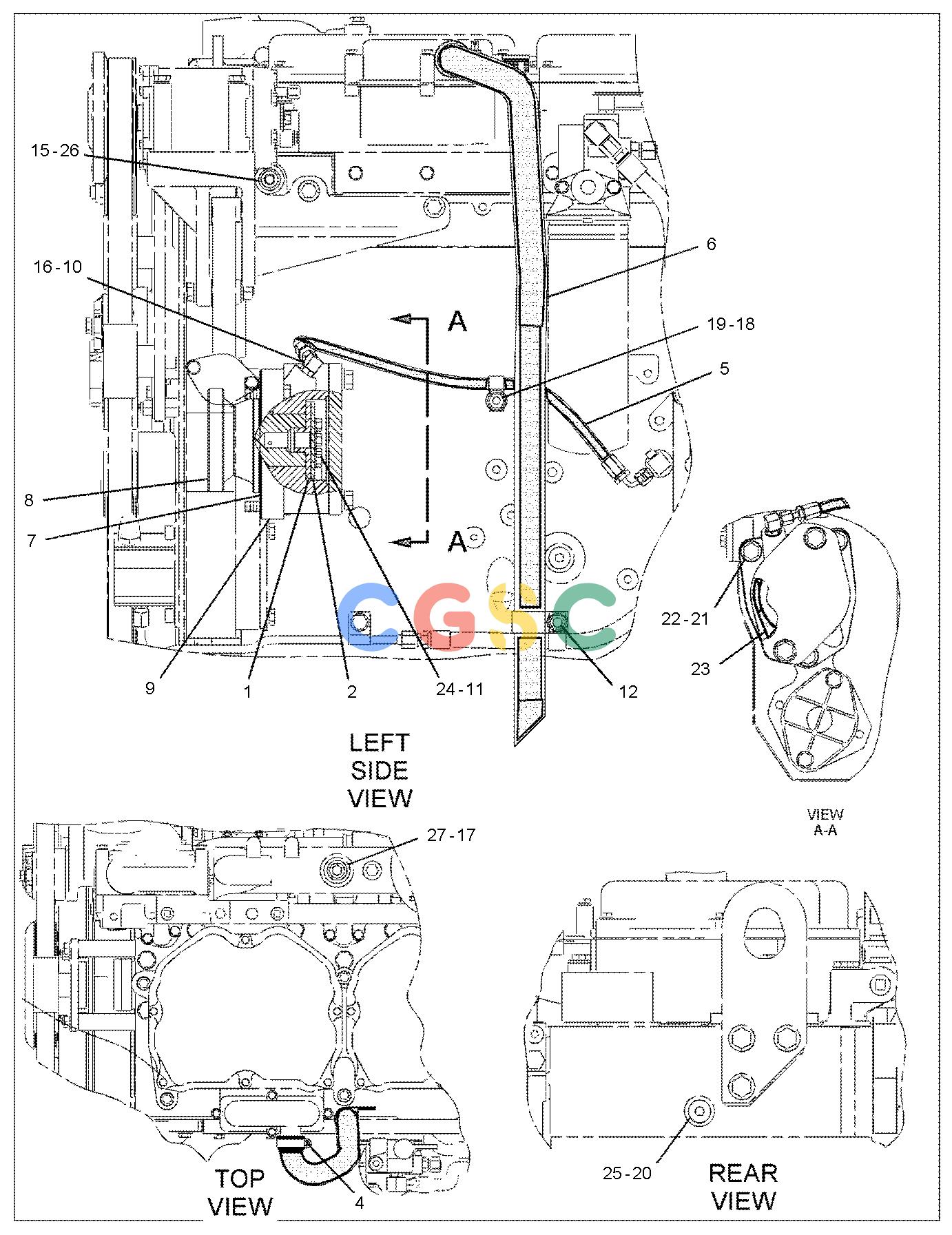

卡特零件查询（725） 180-3707: DRIVE GP-ACCESSORY
广数供应链运营团队, 14 02月, 2025，浏览：
612 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1N-3974 | [1] | COUPLING | |
| 2. | 1N-3975 | [1] | COVER-RETAINER | |
| 3. | 8P-1438 | [1] | COVER | |
| 4. | 9M-2904 | [1] | CLAMP-HOSE | |
| 5. | 124-5049I | [1] | HOSE AS | |
| 6. | 126-0146 | [1] | HOSE-FUMES DISPOSAL | |
| 7. | 129-2181 | [1] | SEAL-INTEGRAL | |
| 8. | 155-2946 | [1] | GEAR(42-TEETH) | |
| 9. | 180-3706 | [1] | BEARING | |
| 10. | 030-7946 | [1] | ELBOW | |
| 11. | 2B-2695 | [8] | BOLT(5/16-18X0.875-IN) | |
| 12. | 2S-2053 | [1] | CLIP(LOOP) | |
| 13. | 4K-8864 | [1] | CLIP(LOOP) | |
| 14. | 5P-2566 | [2] | BOLT(1/2-13X1.5-IN) | |
| 15. | 6V-3251 | [1] | SEAL-O-RING | |
| 16. | 6V-5048 | [1] | SEAL-O-RING | |
| 17. | 6V-5063 | [1] | SEAL-O-RING | |
| 18. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 19. | 6V-6317M | [1] | BOLT(M10X1.5X20-MM) | |
| 20. | 6V-6609 | [1] | SEAL-O-RING | |
| 21. | 8T-4184M | [3] | BOLT(M12X1.75X45-MM) | |
| 22. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 23. | 9H-8872 | [1] | GASKET | |
| 24. | 9M-1974 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 25. | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| 26. | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 27. | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
