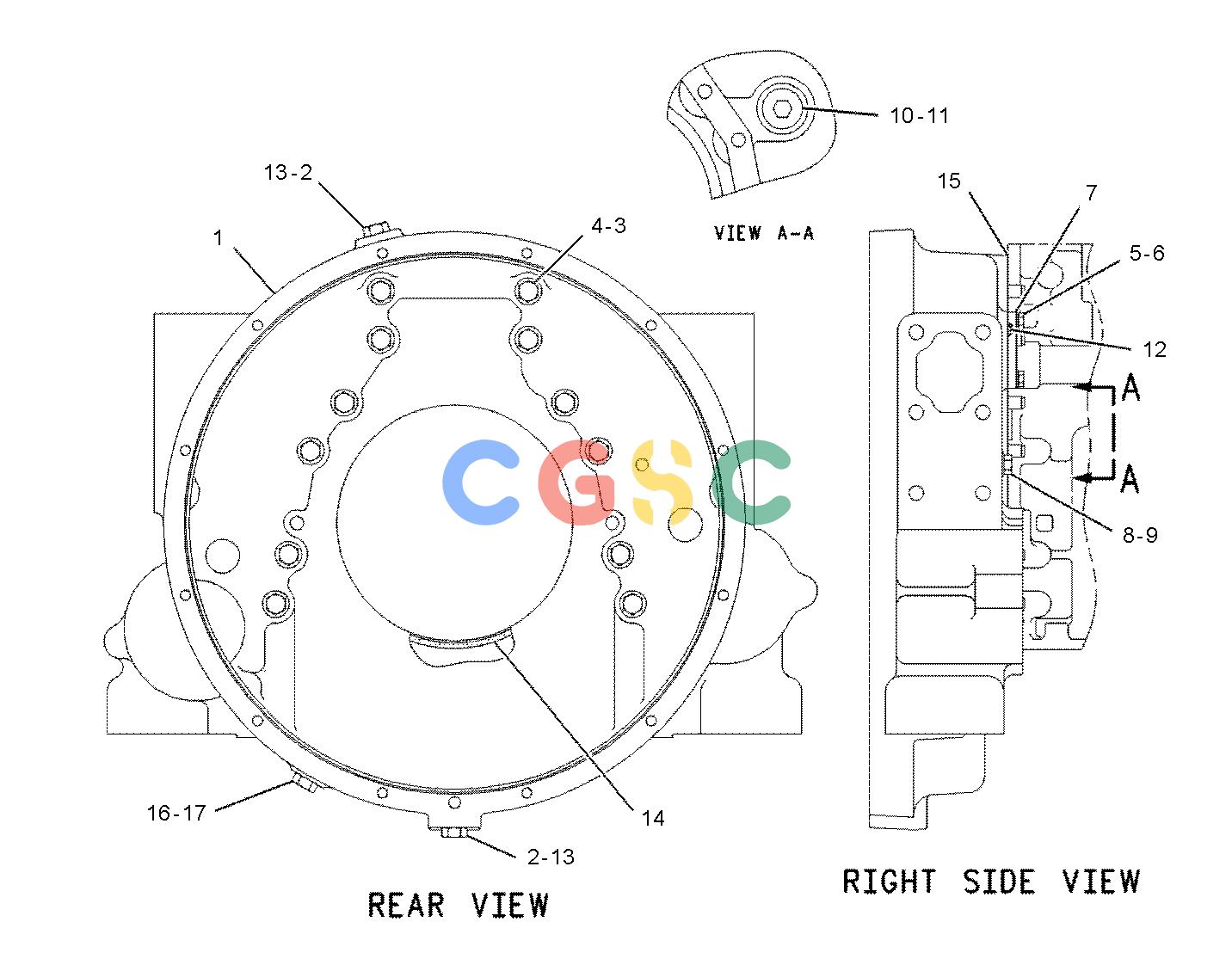

卡特零件查询（725） 179-6417: HOUSING GP-FLYWHEEL
广数供应链运营团队, 14 02月, 2025，浏览：
608 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 179-6376 | [1] | HOUSING-FLYWHEEL | |
| 2. | 9S-4185 | [2] | PLUG(3/4-16-THD) | |
| 3. | 6V-8197M | [12] | BOLT(M12X1.75X40-MM) | |
| 4. | 5P-8245 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 5. | 6V-5219M | [2] | BOLT(M8X1.25X40-MM) | |
| 6. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 7C-1445 | [1] | COVER | |
| 8. | 3K-8460 | [1] | PLUG(1/2-20-THD) | |
| 9. | 5P-7814 | [1] | SEAL-O-RING | |
| 10. | 9S-9334 | [1] | PLUG(1-5/16-12-THD) | |
| 11. | 5P-7701 | [1] | SEAL-O-RING | |
| 12. | 061-9455 | [1] | SEAL-O-RING | |
| 13. | 8L-2786 | [2] | SEAL-O-RING | |
| 14. | 5D-9344 | [1] | SEAL-O-RING | |
| 15. | 1U-8846B | | SEALANT-GASKET | |
| 16. | 5F-0304 | [1] | PLUG | |
| 17. | 2A-1162 | [1] | GASKET | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
