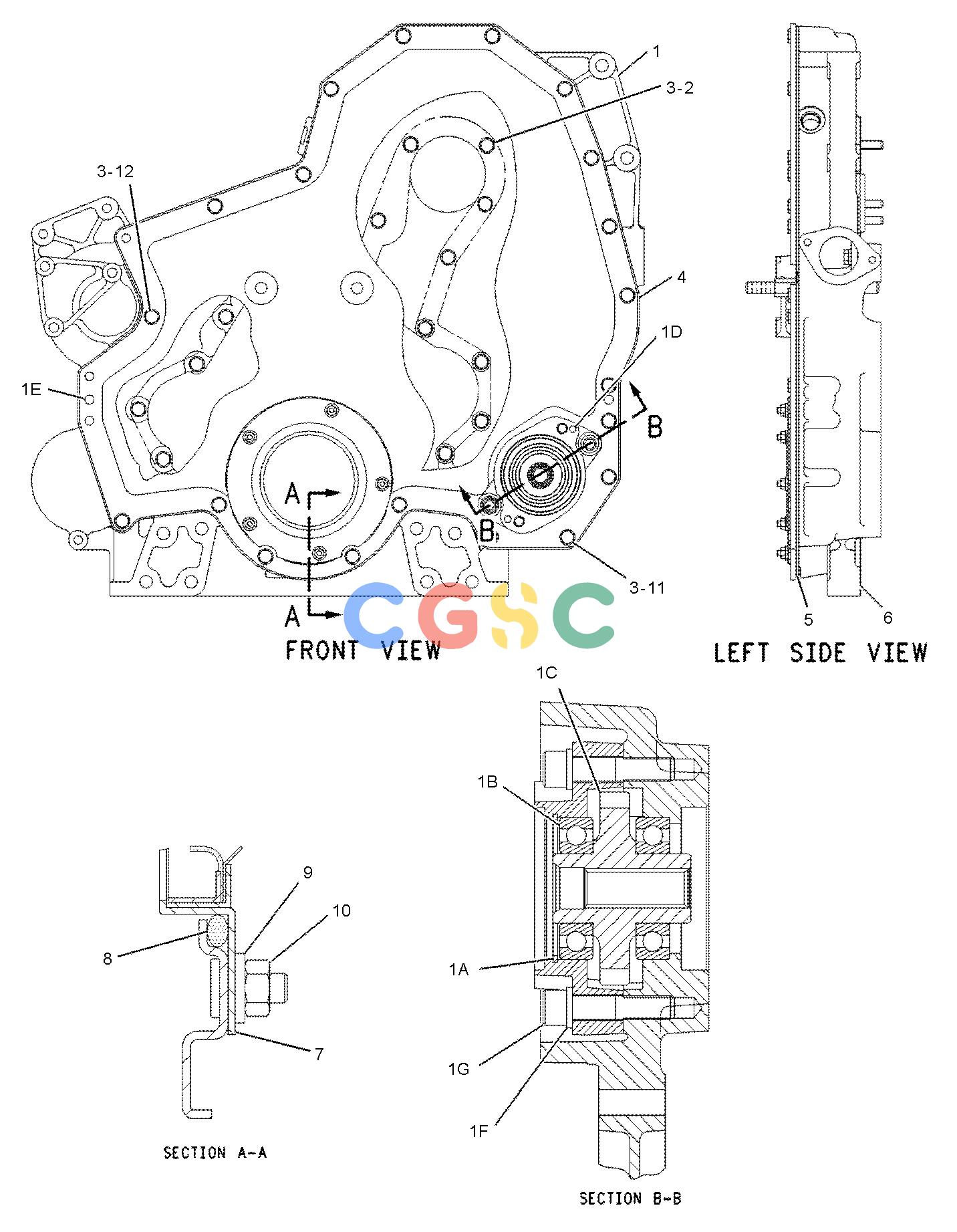

卡特零件查询（725） 133-7075: HOUSING GP-FRONT
广数供应链运营团队, 14 02月, 2025，浏览：
327 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 169-4170C | [1] | HOUSING AS-FRONT | |
| 1A. | 2H-5549 | [1] | RING-RETAINING | |
| 1B. | 8H-9789 | [2] | BALL BEARING | |
| 1C. | 115-9424 | [1] | GEAR-PUMP DRIVE(34-TEETH) | |
| 1D. | 2A-3348 | [2] | DOWEL | |
| 1E. | 6V-3538 | [2] | DOWEL | |
| 1F. | 3H-7654 | [2] | WASHER-HARD(13.5X22.5X3-MM THK) | |
| 1G. | 8T-0343M | [2] | BOLT-SOCKET HEAD(M12X1.75X55-MM) | |
| 2. | 204-0712M | [13] | BOLT(M8X1.25X30-MM) | |
| | | | -OR- |
| | 6V-5219M | [13] | BOLT(M8X1.25X40-MM) | |
| 3. | 9M-1974 | [33] | WASHER-HARD(8.8X16X2-MM THK) | |
| 4. | 262-7131 | [1] | COVER GP-FRONT HOUSING | |
| 5. | 174-2475 | [1] | SEAL-INTEGRAL | |
| 6. | 262-8382 | [1] | GASKET | |
| 7. | 226-4755 | [1] | SEAL GP-CRANKSHAFT | |
| 8. | 220-3373 | [1] | SEAL-RING(CRANKSHAFT) | |
| 9. | 5P-0537 | [5] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 10. | 6V-8225M | [5] | NUT(M6X1-THD) | |
| 11. | 6V-2317M | [19] | BOLT(M8X1.25X30-MM) | |
| 12. | 3E-8016M | [1] | BOLT-SELF-LOCKING(M8X1.25X25-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
