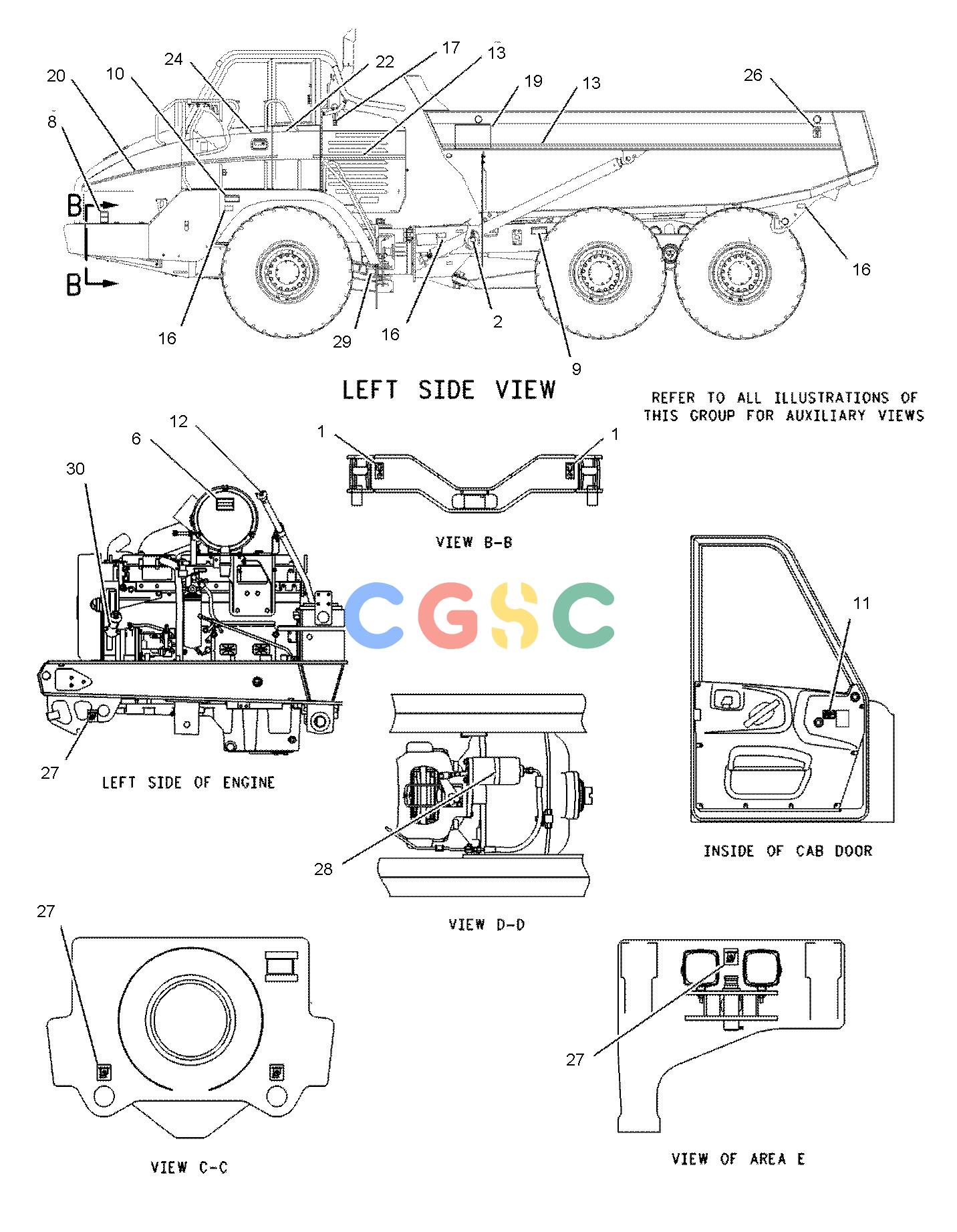

卡特零件查询（725） 149-0155: PLATE & FILM GP
广数供应链运营团队, 14 02月, 2025，浏览：
790 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 137-0246 | [2] | PLATE-WARNING(NO CLEARANCE) | |
| 2. | 180-5937 | [1] | PLATE-WARNING(HIGH PRESSURE OIL) | |
| 3. | 194-4757 | [2] | PLATE-WARNING(ACCUMULATOR) | |
| 4. | 194-8560 | [1] | FILM-INSTRUCTION(RETARDING GUIDELINES) | |
| 5. | 2U-7544 | [2] | PLATE-WARNING(HIGH PRESSURE OIL) | |
| 6. | 4P-6464 | [1] | FILM-INFORMATION(AIR CLEANER) | |
| 7. | 5P-8197 | [1] | PLATE-WARNING(READ OMM) | |
| 8. | 6V-4611 | [2] | FILM-WARNING(JUMP START, READ OMM) | |
| 9. | 6U-7529 | [2] | PLATE-WARNING(DUMP BODY PROP) | |
| 10. | 6U-7837 | [1] | PLATE-WARNING(CAB TILT CYLINDER PIN) | |
| 11. | 110-6393 | [1] | PLATE-INSTRUCTION(AIR CONDITIONER) | |
| 12. | 118-1225 | [2] | FILM-IDENTIFICATION(TRANSMISSION TANK FILL CAP) | |
| 13. | 120-0210BE | | FILM-STRIPE(RED) | |
| 14. | 143-7089 | [2] | FILM-WARNING(ACCUMULATOR) | |
| 15. | BE | | FILM-STRIPE(RED REFLECTIVE) |
| 16. | BE | | FILM-STRIPE(YELLOW REFLECTIVE) |
| 17. | 190-2938 | [1] | FILM-WARNING(ENG COOLANT PRESSURE, READ OMM) | |
| 18. | 195-1054 | [1] | FILM(HYDRAULIC TEST POINTS) | |
| 19. | 199-3103 | [2] | FILM-IDENTIFICATION(725) | |
| 20. | 200-4144 | [1] | FILM-STRIPE(HOOD, LH) | |
| 21. | 200-4145 | [1] | FILM-STRIPE(HOOD, RH) | |
| 22. | 200-4146 | [1] | FILM-IDENTIFICATION(CAT, CAB, LH) | |
| 23. | 200-4147 | [1] | FILM-IDENTIFICATION(CAT CAB, RH) | |
| 24. | 200-4148 | [1] | FILM-STRIPE(RED ACCENT, DOOR) | |
| 25. | 1P-2807 | [2] | FILM-IDENTIFICATION(LIFT EYE LOCATION) | |
| 26. | 1P-2808 | [2] | FILM-IDENTIFICATION(LIFT EYE LOCATION) | |
| 27. | 7X-7644 | [5] | FILM-IDENTIFICATION(TIE-DOWN) | |
| 28. | 8T-7532 | [1] | FILM-WARNING(RECOIL SPRING)(PARKING BRAKE CYLINDER) | |
| 29. | 9X-1878 | [1] | PLATE-IDENTIFICATION(PRODUCT IDENTIFICATION) | |
| 30. | 9X-6340 | [1] | FILM-INSTRUCTION(ENGINE OIL) | |
| | | | |
| | 2U-2720BF | [4] | SCREW-DRIVE(NO 6X3/8-IN) | |
| | 6L-7008BF | [3] | STRAP-CABLE | |
| | 6U-9078BF | [8] | FASTENER | |
| | 033-7291BF | [38] | RIVET-POP | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | F | | NOT SHOWN |
