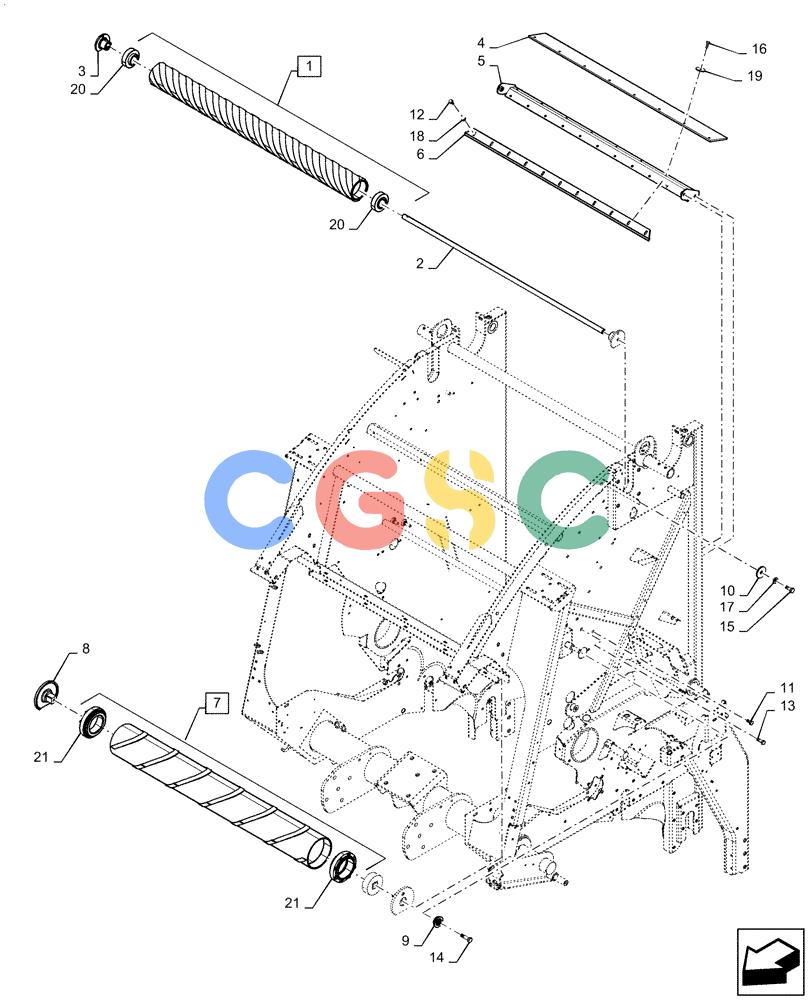

| 1. |
84600591
|
[1] |
ROLL
|
PLO
Backwrap, Incl 20
|
| 2. |
9823371
|
[1] |
SHAFT
|
NH
Superseded by part number: 87023402
|
| 3. |
86521602
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87023400
|
| 4. |
87385929
|
[1] |
RUBBER STRIP,1140mm L x 112mm W x 7.5mm Thk
|
PA
|
| 5. |
84322929
|
[1] |
ANGLE
|
NH
|
| 6. |
84322928
|
[1] |
SCRAPER
|
NH
|
| 7. |
86565880
|
[1] |
ROLLER
|
PA
Sledge Follower, Incl 21
|
| 8. |
86553395
|
[2] |
SUPPORT
|
NH
|
| 9. |
87398962
|
[2] |
HUB,12.5mm ID x 47.42mm OD x 13.2mm L
|
PA
|
| 10. |
29684
|
[2] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
|
| 11. |
43138
|
[2] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 12. |
9804258
|
[11] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
43140
|
[2] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 14. |
412087
|
[2] |
BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd
|
BHB
Superseded by part number: 86639031
|
| 15. |
43260
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
|
BHB
|
| 16. |
280519
|
[8] |
SELF-TAP SCREW,Hex, 5/16" - 12 x 1"
|
NH
|
| 17. |
65319
|
[2] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 18. |
322358
|
[11] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 19. |
322
|
[8] |
WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk
|
NH
|
| 20. |
84259867
|
[2] |
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
|
PLO
|
| 21. |
86553396
|
[2] |
BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE
|
NH
|
