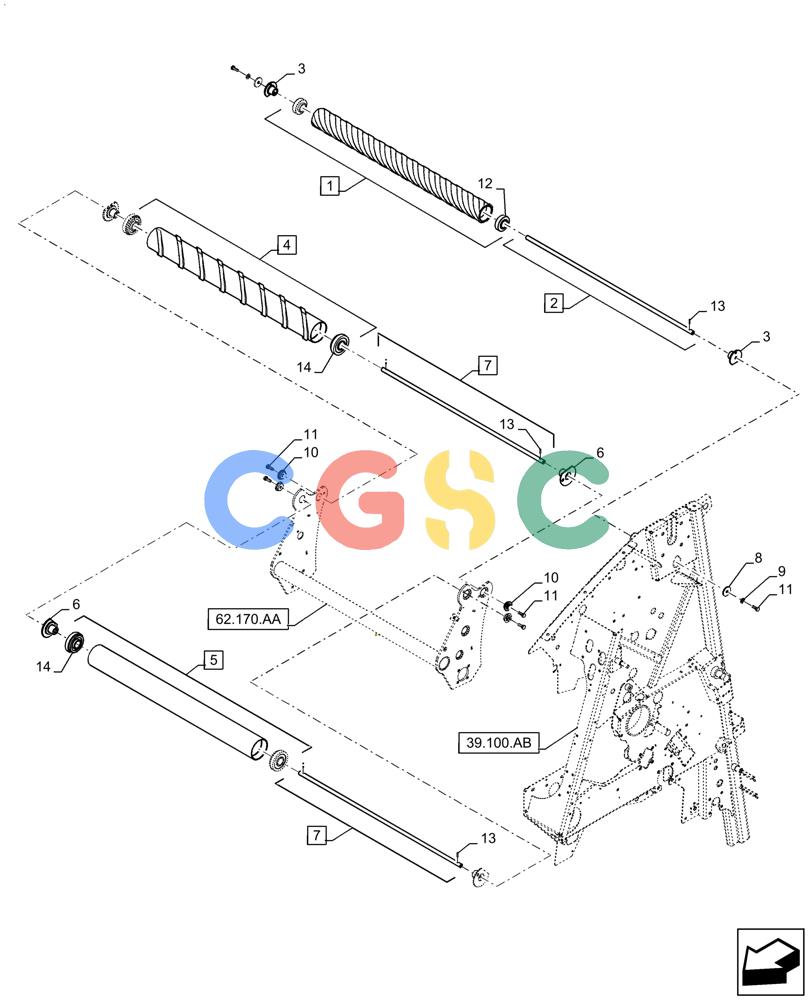

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (62.140.AC[08]) - LOOPED FOLLOWER ROLL, BACKWRAP ROLL ,YGN193203 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84600591
|
[1] |
ROLL
|
PLO
Backwrap, Rubber, Incl 12
|
| 2. |
9823371
|
[1] |
SHAFT
|
NH
Incl 13 Superseded by part number: 87023402
|
| 3. |
86521602
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87023400
|
| 4. |
47974946
|
[1] |
ROLL
|
NH
Chop, Loop Follower, Incl 14
|
| 5. |
47986356
|
[1] |
ROLL
|
NH
Smooth Follower, Incl 14
|
| 6. |
47962843
|
[4] |
SUPPORT
|
NH
|
| 7. |
9823372
|
[2] |
SHAFT,1135mm L
|
NH
Incl 13
|
| 8. |
29684
|
[2] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
|
| 9. |
65319
|
[2] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 10. |
87398962
|
[4] |
HUB,12.5mm ID x 47.42mm OD x 13.2mm L
|
PA
|
| 11. |
43260
|
[6] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
|
BHB
|
| 12. |
84259867
|
[6] |
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
|
PLO
|
| 13. |
130045
|
[3] |
PIN,5mm OD x 26mm L, Slotted
|
NH
|
| 14. |
47935418
|
[4] |
BEARING HOUSING
|
NH
Incl 12
|
