神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (03-013) - AUTOMATIC TIMER (INNER PARTS) 040-134B Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
220 次

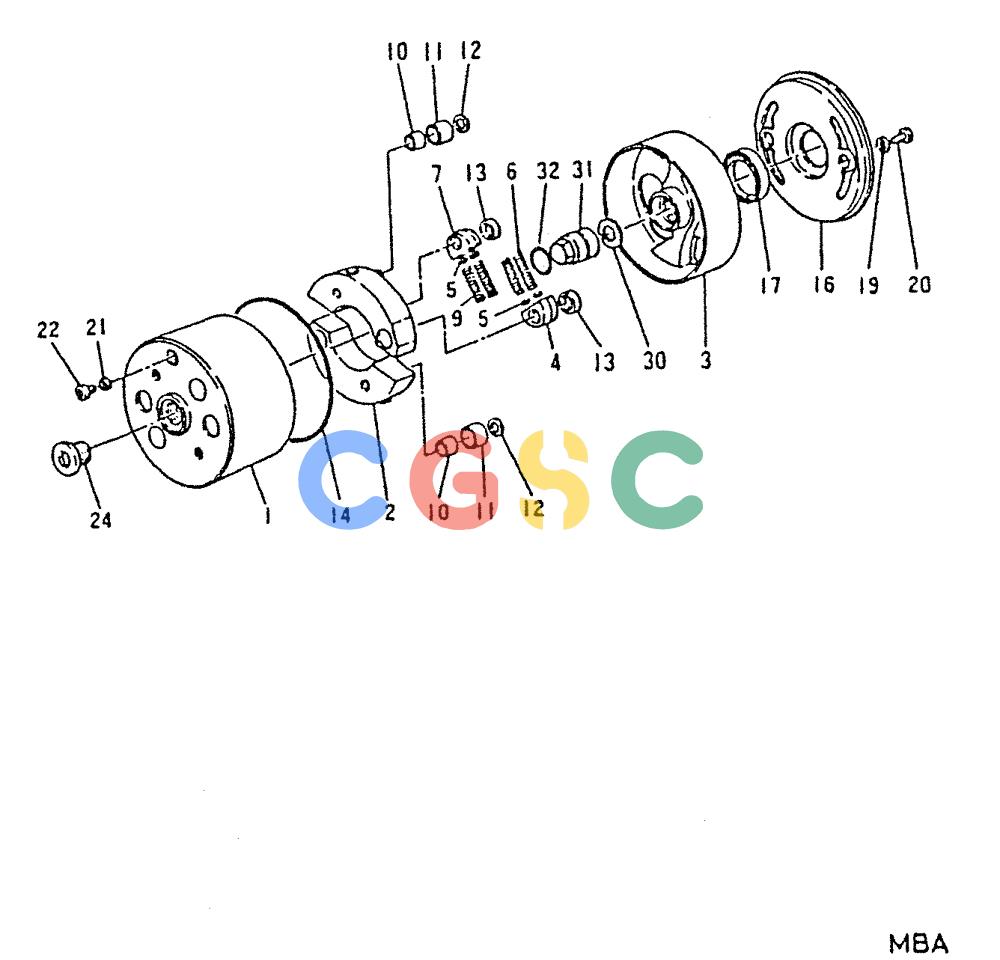

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-32. | VAME723861 | [1] | AUTOMATIC T TIMER ASSY, SP TYPE | AUTOMATIC T TIMER ASSY, SP TYPE |
| 1. | VAME723993 | [1] | HOUSING, TIMER | |
| 2. | VAME726154 | [2] | FLYWEIGHT | |
| 3. | VAME723477 | [1] | FLANGE | FLANGE |
| 4. | VAME705071 | [2] | SEAT, SPG | |
| 5. | VAME705297 | [1] | SHIM, T=0.2 | |
| . . | VAME705298 | [1] | SHIM, T=0.4 | |
| . . | VAME705299 | [1] | SHIM, T=0.5 | |
| . . | VAME705300 | [1] | SHIM, T=0.6 | |
| . . | VAME705301 | [1] | SHIM, T=0.7 | |
| . . | VAME705302 | [1] | SHIM, T=1.0 | |
| . . | VAME717802 | [1] | SHIM, T=0.3 | |
| . . | VAME717803 | [1] | SHIM, T=0.8 | |
| . . | VAME717804 | [1] | SHIM, T=0.9 | |
| . . | VAME717805 | [1] | SHIM, T=0.1 | |
| . . | VAME716752 | [1] | SHIM, T=1.5 | |
| . . | VAME716753 | [1] | SHIM, T=2.0 | |
| 6. | VAME726157 | [2] | SPRING, TIMER | |
| 7. | VAME705071 | [2] | SEAT, SPG | |
| 9. | VAME726157 | [2] | SPRING, TIMER | |
| 10. | VAME705074 | [2] | BUSHING | KOB |
| 11. | VAME705040 | [1] | ROLLER, D=23.9 | |
| . . | VAME705041 | [1] | ROLLER, D=24.0 | |
| . . | VAME705042 | [1] | ROLLER | KOBD=24.1 |
| . . | VAME705043 | [1] | D=24.2 | |
| 12. | VAME705303 | [2] | WASHER | |
| 13. | VAME717625 | [2] | RETAINER | |
| 14. | VAME705045 | [1] | O-RING | KOB |
| 16. | VAME717644 | [1] | COVER | |
| 17. | VAME717627 | [1] | SEAL | KOB |
| 19. | VAME717628 | [2] | GASKET | KOB |
| 20. | VAME717629 | [2] | BOLT | |
| 21. | VAME705271 | [1] | GASKET | GASKET |
| 22. | VAME705014 | [1] | PLUG | PLUG |
| 24. | VAME705140 | [1] | CAP | |
| 30. | VAME705305 | [1] | WASHER, SPG | |
| 31. | VAME704260 | [1] | NUT | |
| 32. | VAME705355 | [1] | O-RING | KOB Superseded by part number: VA0296328010 |
