神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (03-012) - AUTOMATIC TIMER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
533 次

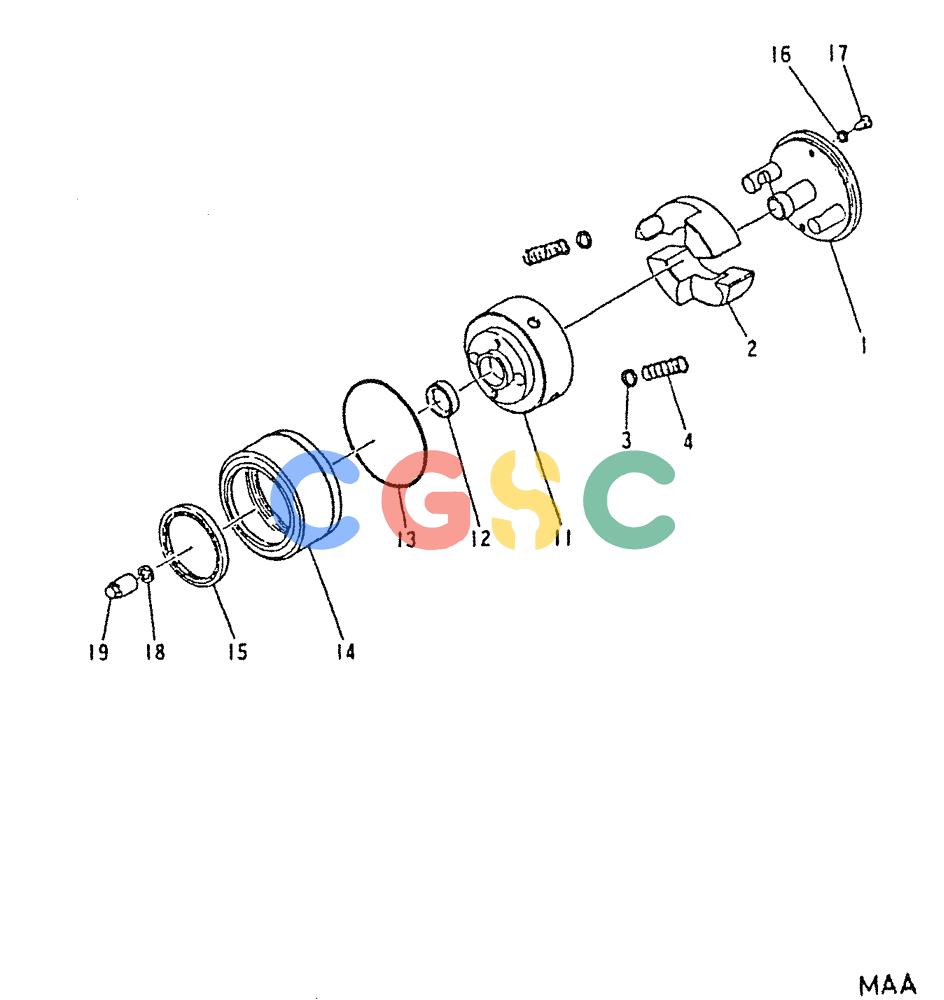

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-19. | VA3096100500 | [1] | TIMER | KOBAUTOMATIC TIMER ASSY, SA TYPE |
| 1. | VAME705024 | [1] | HOLDER, FLYWEIGHT | |
| 2. | VAME705025 | [2] | FLYWEIGHT | |
| 3. | VAME717740 | [1] | SHIM, T=0.5 | |
| . . | VAME717741 | [1] | SHIM, T=1.0 | |
| . . | VAME717742 | [1] | SHIM, T=0.1 | |
| . . | VAME717743 | [1] | SHIM, T=0.2 | |
| . . | VAME717744 | [1] | SHIM, T=1.5 | |
| . . | VAME7I7747 | [1] | SHIM, T=0.15 | |
| 4. | VAME717603 | [1] | SPRING, TIMER | |
| 11. | VAME705130 | [2] | FLANGE | |
| 12. | VAME717745 | [1] | OIL SEAL | KOB |
| 13. | VAME705080 | [1] | O-RING | KOBO-RING Superseded by part number: VA1561170100 |
| 14. | VAME705081 | [1] | CASE | |
| 15. | VAME705083 | [1] | OIL SEAL | KOB |
| 16. | VAME705389 | [2] | PACKING | KOB Superseded by part number: 134686A1 |
| 17. | VAME705100 | [2] | PLUG | |
| 18. | VAME705213 | [1] | WASHER, SPG | |
| 19. | VAME705109 | [1] | NUT | |
