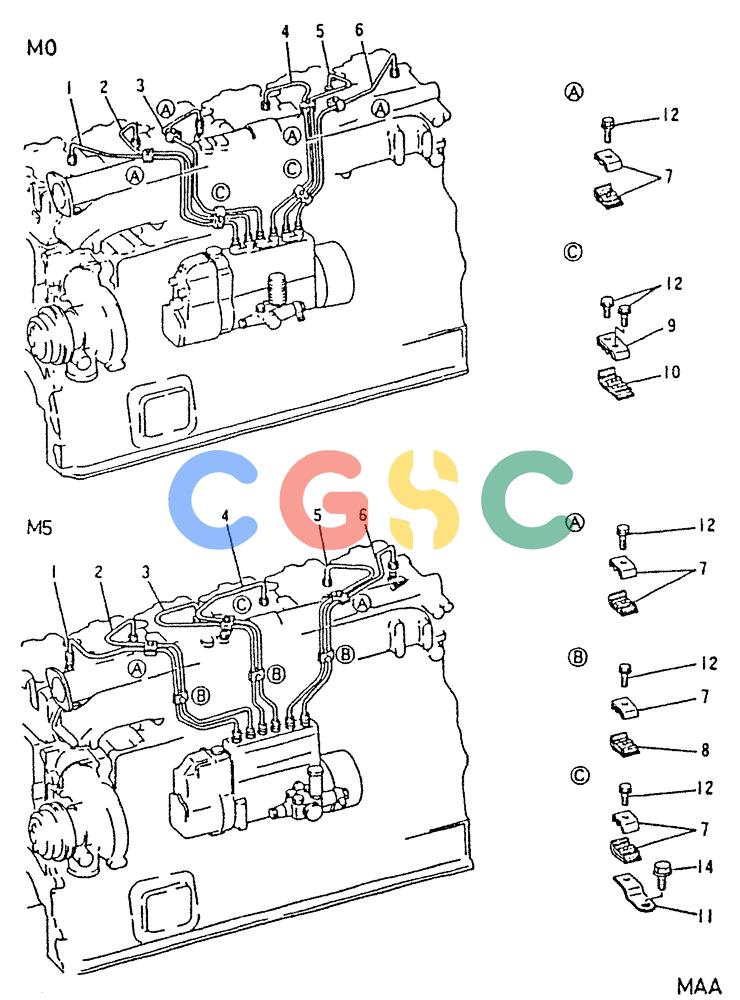

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (03-016) - FUEL INJECTION PIPE 040-140A Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
346 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME056361 | [1] | INJECTION PIPE | KOBINJECTION, M0 ONLY |
| . . | VAME157001 | [1] | PIPE | KOBINJECTION, M5 ONLY |
| 2. | VAME056362 | [1] | INJECTION PIPE | KOBINJECTION, M0 ONLY |
| . . | VAME157002 | [1] | PIPE | KOBINJECTION, M5 ONLY |
| 3. | VAME056363 | [1] | PIPE | KOBINJECTION, M0 ONLY |
| . . | VAME157003 | [1] | PIPE | KOBINJECTION, M5 ONLY |
| 4. | VAME056364 | [1] | INJECTION PIPE | KOBINJECTION, M0 ONLY |
| . . | VAME056679 | [1] | INJECTION PIPE | KOBM5 ONLY |
| 5. | VAME056365 | [1] | PIPE | KOBINJECTION, M0 ONLY |
| . . | VAME056680 | [1] | PIPE | KOBM5 ONLY |
| 6. | VAME056366 | [1] | PIPE | KOBINJECTION, M0 ONLY |
| . . | VAME056681 | [1] | PIPE | KOBM5 ONLY |
| . . | VA3096101309 | [1] | PIPE PIPE, INJECTION STRAIGHT, D2 L=640, M0 ONLY, (FOR SERVICE ONLY) | PIPE PIPE, INJECTION STRAIGHT, D2 L=640, M0 ONLY, (FOR SERVICE ONLY) |
| . . | VAME157004 | [1] | INJECTION PIPE | KOBSTRAIGHT, D2 L=650, M5 ONLY, (FOR SERVICE ONLY) |
| 7. | VAMH020258 | [8] | CLAMP | KOBCLAMP, A, M0 ONLY Superseded by part number: 134717A1 |
| 8. | VAMH020259 | [3] | CLAMP | KOBCLAMP, B, M5 ONLY Superseded by part number: 134718A1 |
| 9. | VAMH021250 | [2] | CLAMP | KOBCLAMP, M0 ONLY |
| 10. | VAMH021251 | [2] | CLAMP | KOBCLAMP, M0 ONLY |
| 11. | VAME930001 | [1] | STAY | KOBM5 ONLY Superseded by part number: 133325A1 |
| 12. | VAMF140009 | [8] | SCREW | KOBBOLT, FLANGE 6X25, M0 ONLY Superseded by part number: 134719A1 |
| 14. | VAMH000706 | [1] | SCREW | KOBBOLT, FLANGE 10X16, M5 ONLY Superseded by part number: 132289A1 |
