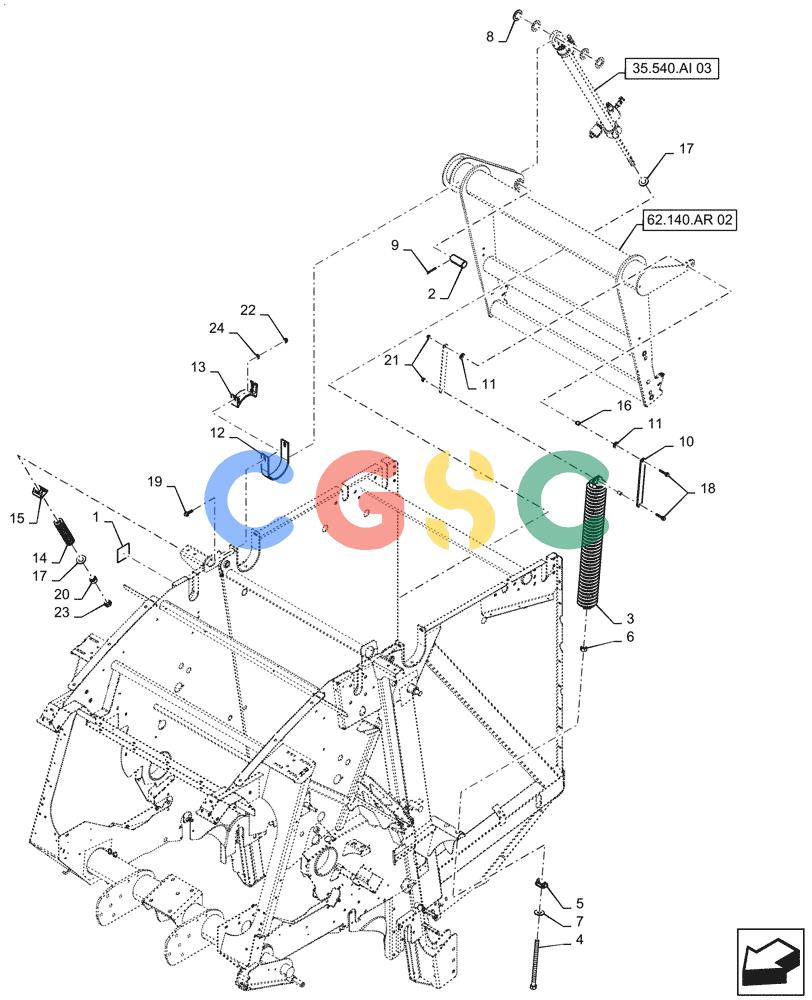

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (62.140.AQ[14]) - VAR - 727159 - BALE TENSION TAKE UP ARM AND ONE SPRING, SINGLE HYD. CYLINDER, OVERSHOT FEEDER, IN CAB CONTROL, SILAGE ,YGN193203 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
750 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87022793
|
[1] |
DECAL
|
PA
|
| 2. |
86515940
|
[1] |
PIN,38.1mm OD x 91.5mm L
|
PA
Superseded by part number: 86637228
|
| 3. |
9608196
|
[1] |
SPARE PART
|
A
Superseded by part number: 87654704
|
| 4. |
633038
|
[1] |
THREADED ROD,3/4" - 10 x 11-1/2" L
|
NH
|
| 5. |
625098
|
[1] |
PIVOT
|
NH
|
| 6. |
280954
|
[1] |
NUT,3/4"-10, G5
|
NH
|
| 7. |
86511191
|
[1] |
WASHER,0.81" ID x 2" OD x 0.15" Thk
|
NH
|
| 8. |
28581
|
[4] |
WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk
|
NH
Superseded by part number: 86611730
|
| 9. |
87400
|
[2] |
COTTER PIN,3/16" x 2"
|
WIN
|
| 10. |
47888240
|
[2] |
LINK,296mm L
|
NH
|
| 11. |
52828
|
[2] |
WASHER
|
PA
|
| 12. |
9617265
|
[2] |
BAND
|
NH
|
| 13. |
9617266
|
[2] |
BEARING CAP,145.6 mm OD
|
PA
Superseded by part number: 86636552
|
| 14. |
9846489
|
[1] |
SPRING,Compression, 1.81" OD x 9.44" L
|
NH
|
| 15. |
226131
|
[1] |
PIVOT
|
NH
Superseded by part number: 87654703
|
| 16. |
768624
|
[2] |
SPACER
|
PA
Superseded by part number: 86636659
|
| 17. |
257163
|
[2] |
WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk
|
NH
|
| 18. |
9804264
|
[2] |
FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8
|
NH
Superseded by part number: 16587625
|
| 19. |
9804268
|
[4] |
BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 20. |
9849647
|
[1] |
NUT,7/8"-9, G5
|
NH
|
| 21. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 22. |
86619803
|
[4] |
FLANGE NUT
|
NH
|
| 23. |
87314
|
[1] |
JAM NUT,Jam, 7/8"-9, G2
|
NH
|
| 24. |
87364
|
[4] |
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
|
NH
|
