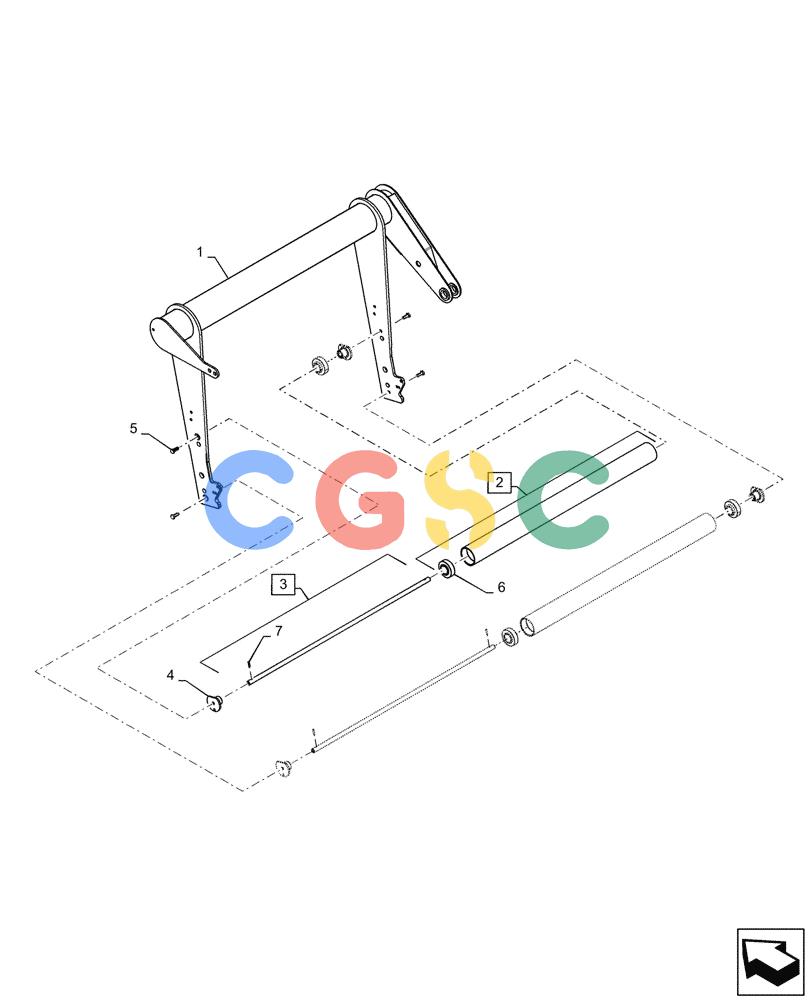

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (62.140.AR[01]) - BALE DENSITY TAKE UP ARM AND ROLLERS, DRY HAY, YGN193203 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47689083
|
[1] |
ARM
|
NH
Take Up
|
| 2. |
84356720
|
[2] |
ROLL,88.9mm OD x 1142mm L
|
PLO
Incl 6
|
| 3. |
9823372
|
[2] |
SHAFT,1135mm L
|
NH
Incl 7
|
| 4. |
86521605
|
[4] |
FLANGE NUT,5/16"-18, Cl 5
|
NH
|
| 5. |
86627635
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9
|
NH
|
| 6. |
84259867
|
[2] |
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
|
PLO
|
| 7. |
130045
|
[2] |
PIN,5mm OD x 26mm L, Slotted
|
NH
|
