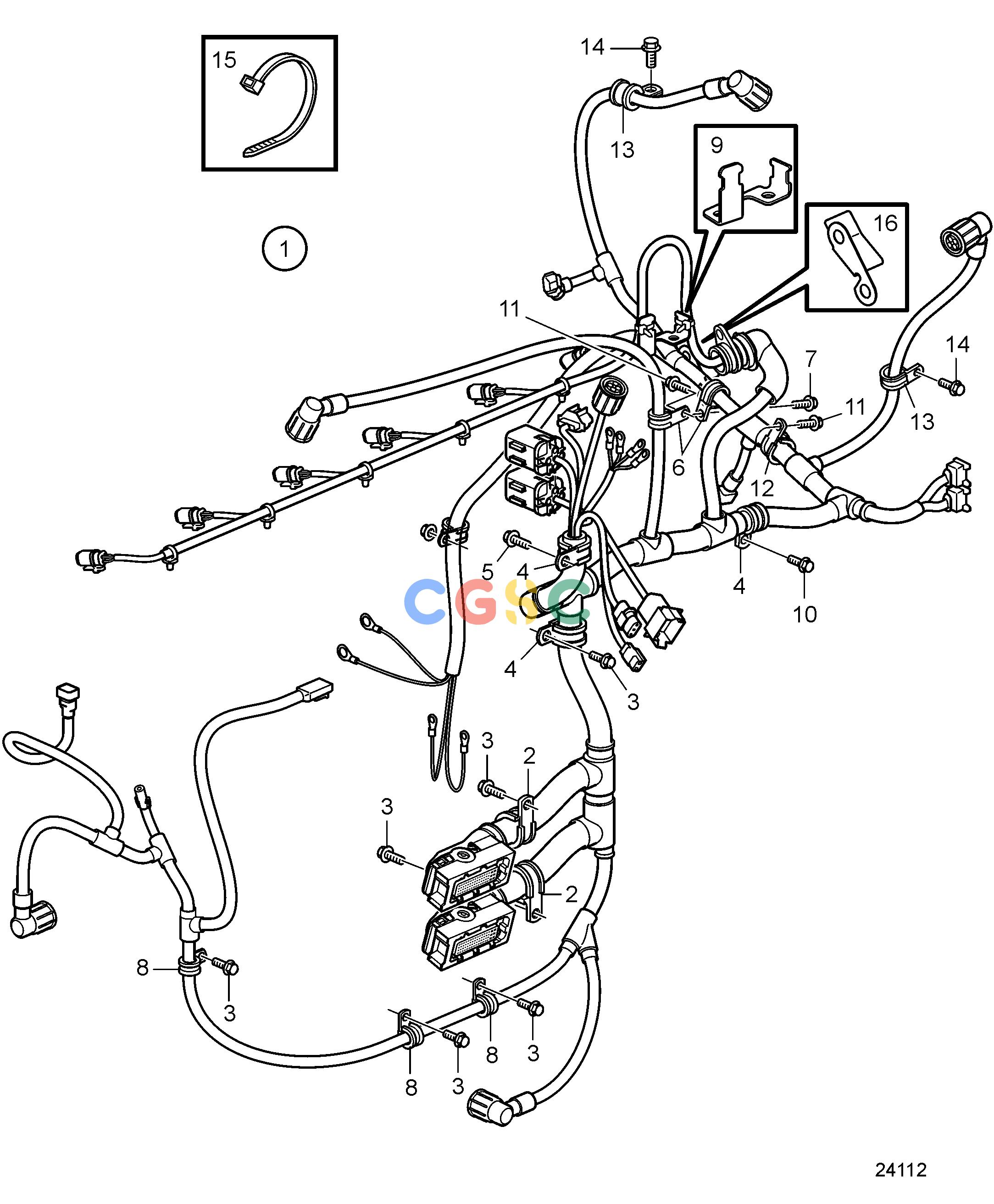

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Electrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
164 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3883464
|
[1] |
Wiring harness
|
24V, SN-7011190474
|
| 2. |
949997
|
[2] |
Clamp
|
|
| 3. |
984733
|
[6] |
Flange screw
|
|
| 4. |
947827
|
[2] |
Clamp
|
|
| 5. |
984734
|
[1] |
Flange screw
|
|
| 6. |
952629
|
[2] |
Clamp
|
|
| 7. |
984725
|
[2] |
Flange screw
|
|
| 8. |
949746
|
[3] |
Clamp
|
|
| 9. |
|
|
|
|
| 10. |
984734
|
[1] |
Flange screw
|
|
| 11. |
984726
|
[2] |
Flange screw
|
|
| 12. |
952632
|
[1] |
Clamp
|
|
| 13. |
952627
|
[2] |
Clamp
|
|
| 14. |
984725
|
[2] |
Flange screw
|
|
| 15. |
948211
|
[1] |
Cable tie
|
|
| 16. |
|
|
|
|
