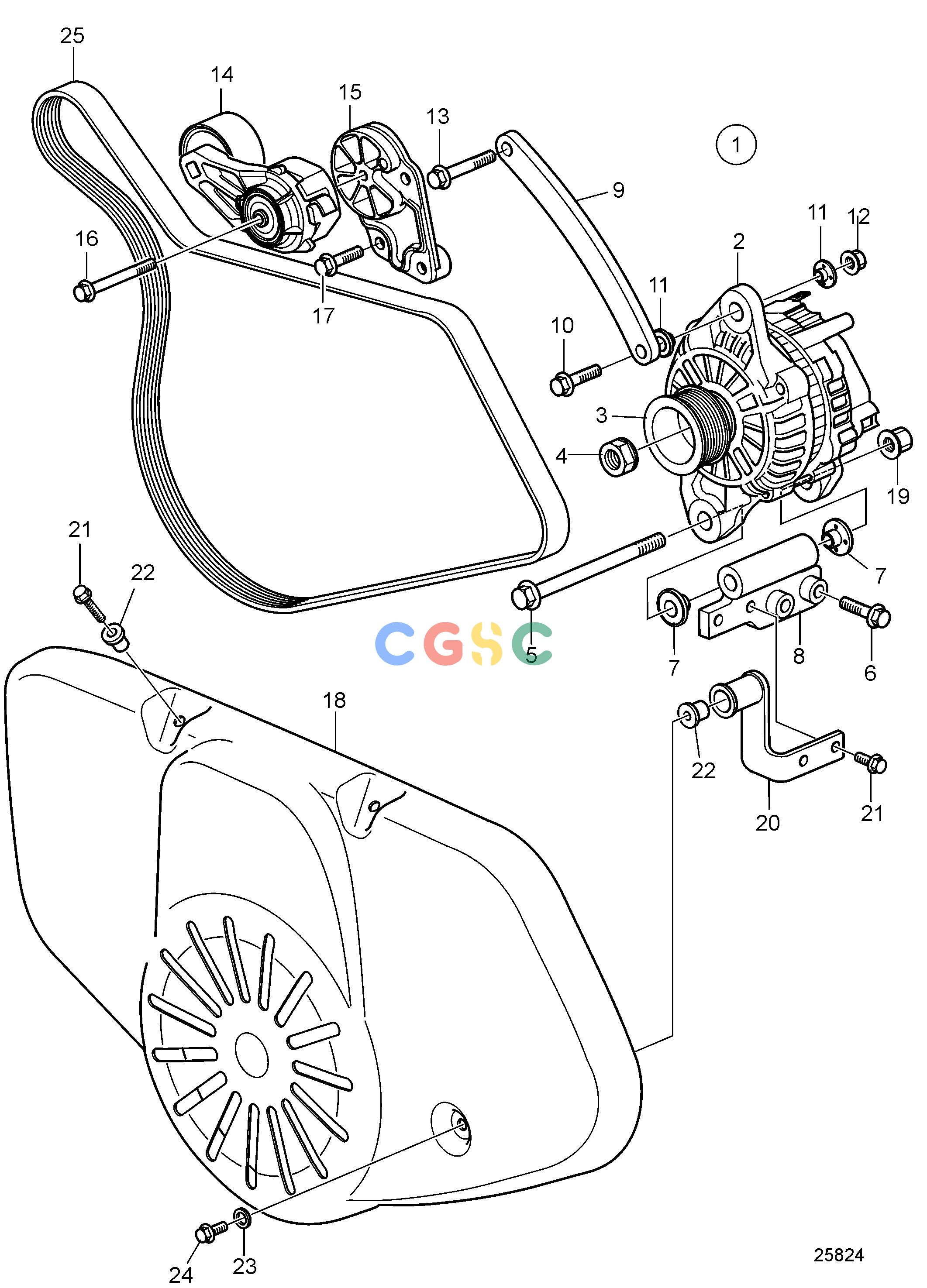

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Electrical SystemExtra Alternator 14V 115A, 28V 80AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
835 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803846
|
[1] |
Alternator, exch
|
|
| 1. |
3587216
|
[1] |
Alternator
|
|
| 1. |
3803845
|
[1] |
Alternator, exch
|
|
| 1. |
3587218
|
[1] |
Alternator
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
984826
|
[1] |
Flange screw
|
|
| 6. |
984755
|
[2] |
Flange screw
|
|
| 7. |
21308514
|
[2] |
Insulating bushing
|
|
| 8. |
3595216
|
[1] |
Alternator anchorage
|
|
| 9. |
3594067
|
[1] |
Alternator bracket
|
|
| 10. |
984756
|
[2] |
Flange screw, belt tensioner
|
|
| 11. |
21328137
|
[2] |
Insulating bushing
|
|
| 12. |
971098
|
[1] |
Flange lock nut
|
|
| 13. |
994395
|
[1] |
Flange screw
|
|
| 14. |
21422765
|
[1] |
Belt tensioner
|
|
| 15. |
3849931
|
[1] |
Bracket
|
|
| 16. |
984759
|
[1] |
Flange screw
|
|
| 17. |
946472
|
[2] |
Flange screw
|
|
| 18. |
3849039
|
[1] |
Belt protector
|
|
| 19. |
990960
|
[1] |
Flange lock nut
|
|
| 20. |
3818185
|
[1] |
Bracket
|
|
| 21. |
984734
|
[4] |
Flange screw
|
|
| 22. |
930762
|
[3] |
Expanding nut, expander
|
|
| 23. |
976944
|
[1] |
Washer
|
|
| 24. |
984735
|
[1] |
Flange screw
|
|
| 25. |
21354715
|
[1] |
V-ribbed belt
|
|
