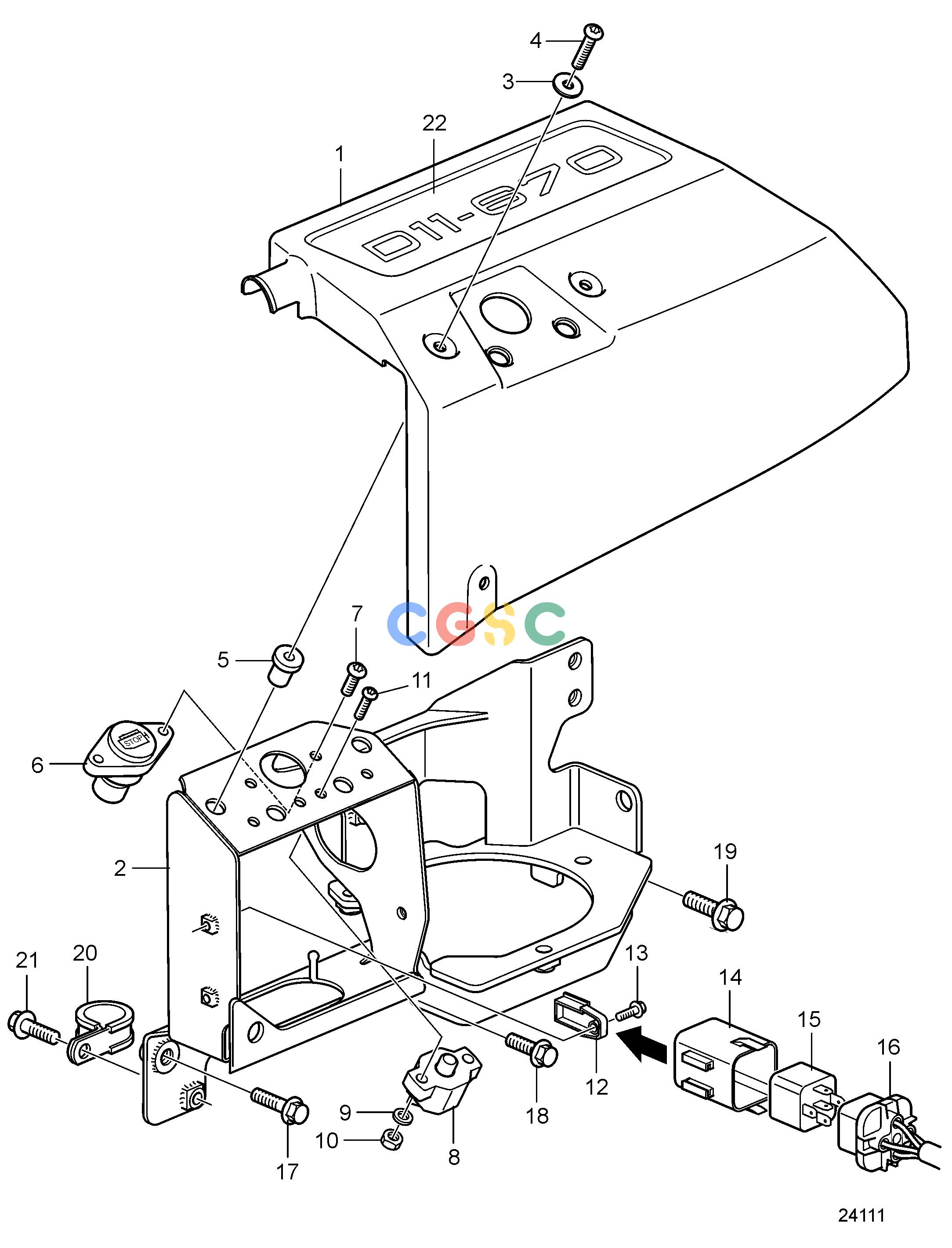

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Electrical SystemFuse and Relay HolderEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
887 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21168958
|
[1] |
Cover
|
|
| 2. |
21845943
|
[1] |
Bracket
|
|
| 3. |
976943
|
[4] |
Washer
|
|
| 4. |
|
|
|
|
| 5. |
930760
|
[2] |
Expanding nut
|
|
| 6. |
21847110
|
[1] |
Stop button
|
|
| 7. |
986214
|
[2] |
Six point socket scr
|
|
| 8. |
873952
|
[2] |
Automatic fuse
|
|
| 9. |
940090
|
[4] |
Washer
|
|
| 10. |
955780
|
[4] |
Hexagon nut
|
|
| 11. |
969408
|
[4] |
Six point socket scr
|
|
| 12. |
3587174
|
[1] |
Relay retainer
|
12V
|
| 13. |
969407
|
[1] |
Six point socket scr
|
|
| 14. |
3587173
|
[1] |
Relay box
|
|
| 15. |
3171420
|
[1] |
Relay
|
|
| 16. |
3587172
|
[1] |
Relay socket
|
|
| 17. |
948336
|
[1] |
Flange screw
|
|
| 18. |
968288
|
[1] |
Flange screw
|
|
| 19. |
984752
|
[1] |
Flange screw
|
|
| 20. |
947827
|
[1] |
Clamp
|
|
| 21. |
984734
|
[1] |
Flange screw
|
|
| 22. |
22063582
|
[1] |
Decal
|
D11-725
|
| 22. |
21169744
|
[1] |
Decal
|
D11-670
|
| 22. |
22063580
|
[1] |
Decal
|
D11-625
|
| 22. |
21505692
|
[1] |
Label
|
|
| 22. |
22063578
|
[1] |
Decal
|
D11-510
|
| 22. |
22063587
|
[1] |
Decal
|
IPS-950
|
| 22. |
21218582
|
[1] |
Decal
|
IPS-900
|
| 22. |
21306260
|
[1] |
Decal
|
IPS-850
|
| 22. |
21306261
|
[1] |
Decal
|
IPS-800
|
| 22. |
22063583
|
[1] |
Decal
|
IPS-650
|
