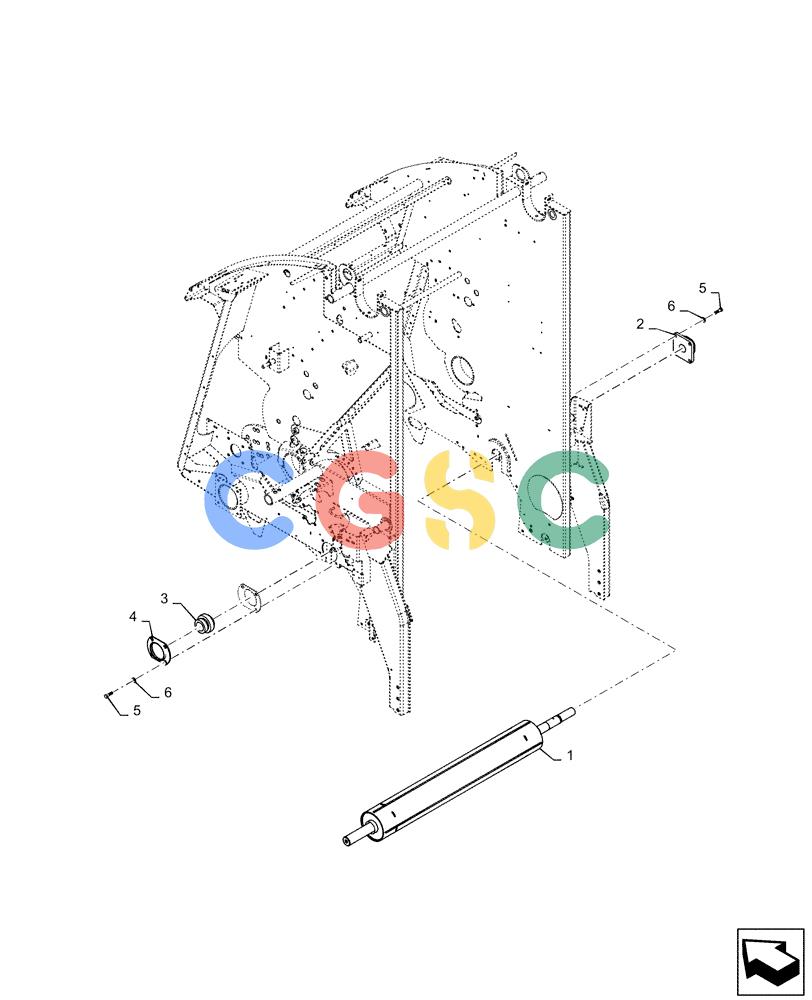

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (62.150.AB[02]) - STARTER ROLL, ROTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
865 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47500251
|
[1] |
ROLL
|
NH
Starter, Rotor
|
| 1. |
47587935
|
[1] |
ROLL
|
NH
Starter, Rotor, Optional
|
| 2. |
86609558
|
[1] |
BEARING ASSY,45mm ID
|
NH
|
| 3. |
685728
|
[1] |
BALL BEARING,50.8mm ID x 86.2mm OD x 25mm W
|
GI
|
| 4. |
76450
|
[2] |
FLANGE
|
PA
|
| 5. |
86629541
|
[8] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 6. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 7. |
47473621
|
[1] |
RAKE
|
PLO
Optional
|
| 8. |
47473637
|
[1] |
SHIM,17.5mm OD x 0.4mm Thk
|
PLO
Optional
|
