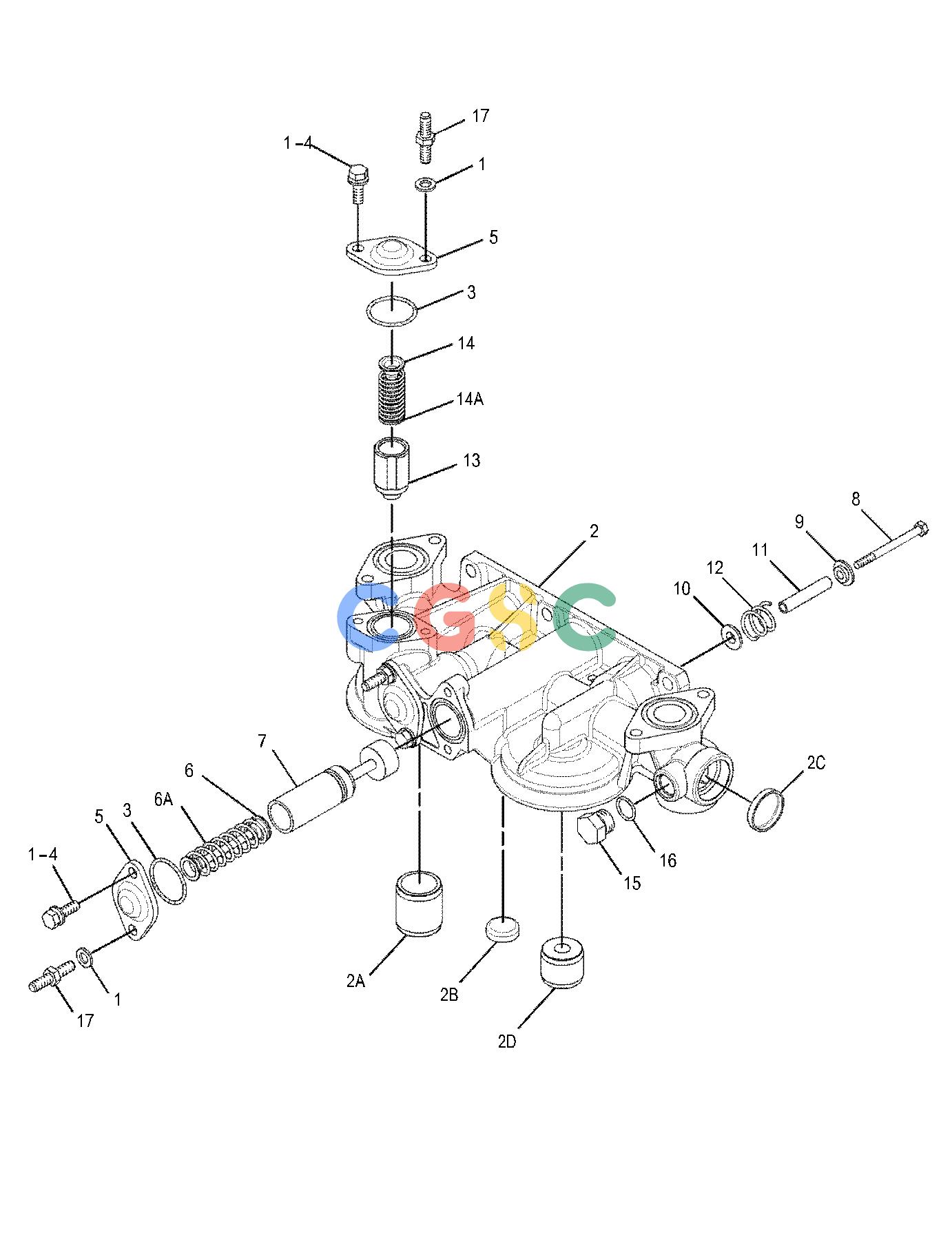

卡特零件查询（725） 166-1329: BASE GP-OIL FILTER
广数供应链运营团队, 14 02月, 2025，浏览：
722 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9M-1974 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 2. | 166-1328 | [1] | BASE AS | |
| 2A. | 2P-4304 | [1] | STUD-HOLLOW | |
| 2B. | 3B-0623 | [1] | PLUG-CUP | |
| 2C. | 3P-1896 | [2] | PLUG-CUP | |
| 2D. | 7W-6390 | [1] | STUD-FILTER BASE | |
| 3. | 6V-4367 | [3] | SEAL-O-RING | |
| 4. | 6V-3940M | [3] | BOLT(M8X1.25X25-MM) | |
| 5. | 7C-2891 | [3] | COVER | |
| 6. | 7C-3954 | [1] | SPRING AS | |
| 6A. | 2N-6005 | [1] | SPRING | |
| 7. | 111-2645 | [1] | VALVE-PUMP BYPASS(ENGINE OIL FILTER) | |
| 8. | 6V-8359M | [1] | BOLT(M6X1X70-MM) | |
| 9. | 7C-3083 | [1] | SEAT-RELIEF VALVE SPRING | |
| 10. | 7C-3082 | [1] | RETAINER | |
| 11. | 7C-3081 | [1] | SPACER(6.88X9.53X50-MM THK) | |
| 12. | 1A-2170 | [1] | SPRING-RETAINER | |
| 13. | 9M-0853 | [2] | PLUNGER-VALVE | |
| 14. | 288-3803 | [2] | SPRING AS | |
| | | | (EACH INCLUDES) |
| 14A. | 4N-8150 | [1] | SPRING | |
| 15. | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 16. | 8L-2786 | [1] | SEAL-O-RING | |
| 17. | 9X-2097M | [3] | STUD(M8X1.25-THD) | |
| | M | | METRIC PART |
