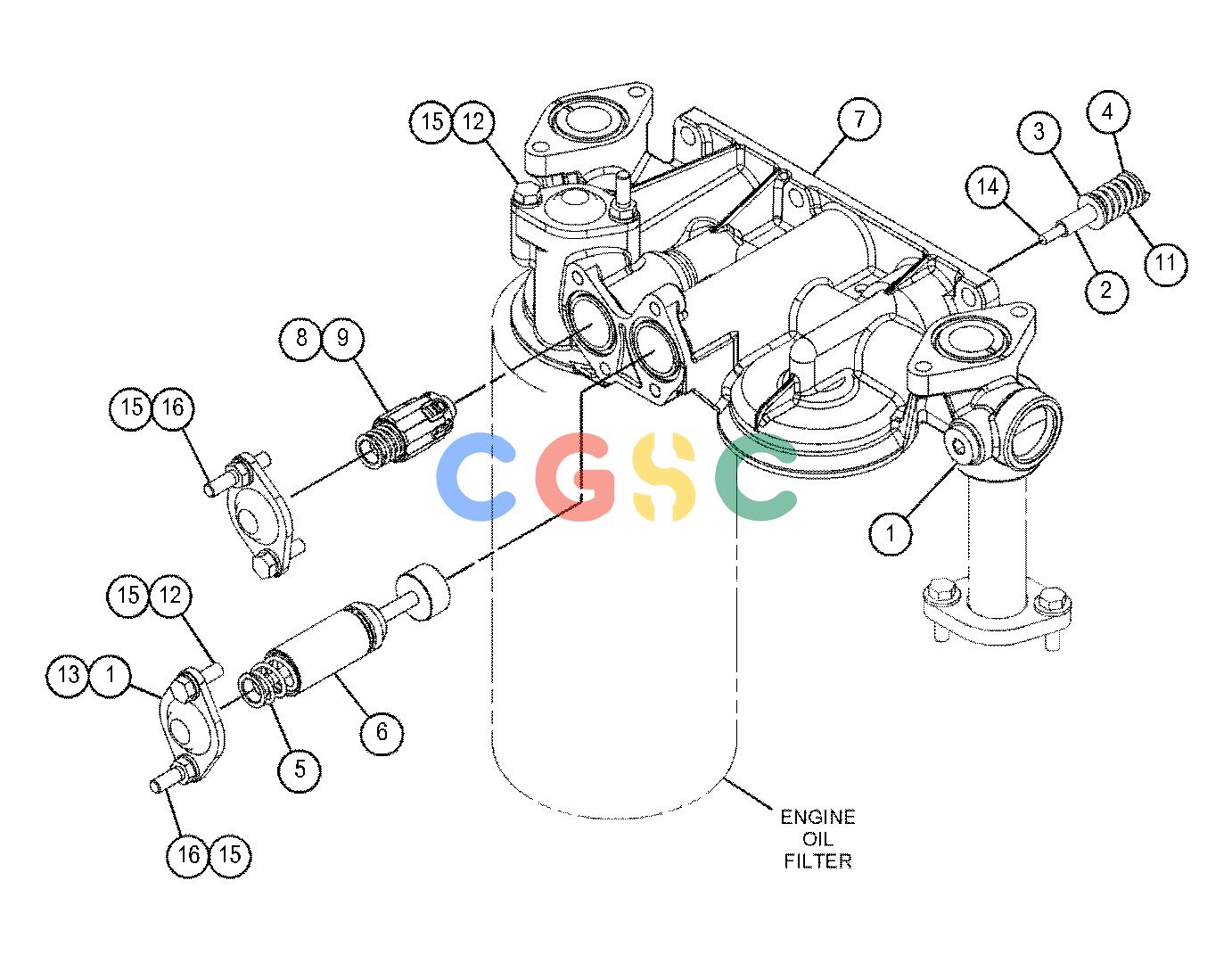

卡特零件查询（725） 532-8902: BASE GP-OIL FILTER
广数供应链运营团队, 14 02月, 2025，浏览：
259 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-2891 | [3] | COVER | |
| 2. | 7C-3081 | [1] | SPACER(6.88X9.53X50-MM THK) | |
| 3. | 7C-3082 | [1] | RETAINER | |
| 4. | 7C-3083 | [1] | SEAT-RELIEF VALVE SPRING | |
| 5. | 7C-3954 | [1] | SPRING AS | |
| 6. | 111-2645 | [1] | VALVE-PUMP BYPASS(ENGINE OIL FILTER) | |
| 7. | 166-1328 | [1] | BASE AS | |
| | 2P-4304 | [1] | STUD-HOLLOW | |
| | 3B-0623 | [1] | PLUG-CUP | |
| | 3P-1896 | [2] | PLUG-CUP | |
| | 7W-6390 | [1] | STUD-FILTER BASE | |
| 8. | 288-3803 | [2] | SPRING AS | |
| 9. | 392-9208 | [2] | PLUNGER-VALVE(RELIEF) | |
| 10. | 398-5596 | [1] | PLUG AS | |
| | 238-5080 | [1] | SEAL-O-RING | |
| | 360-3680 | [1] | PLUG | |
| 11. | 368-3986 | [1] | SPRING | |
| 12. | 6V-3940M | [3] | BOLT(M8X1.25X25-MM) | |
| 13. | 6V-4367 | [3] | SEAL-O-RING | |
| 14. | 6V-8359M | [1] | BOLT(M6X1X70-MM) | |
| 15. | 9M-1974 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 9X-2097M | [3] | STUD(M8X1.25-THD) | |
| | M | | METRIC PART |
