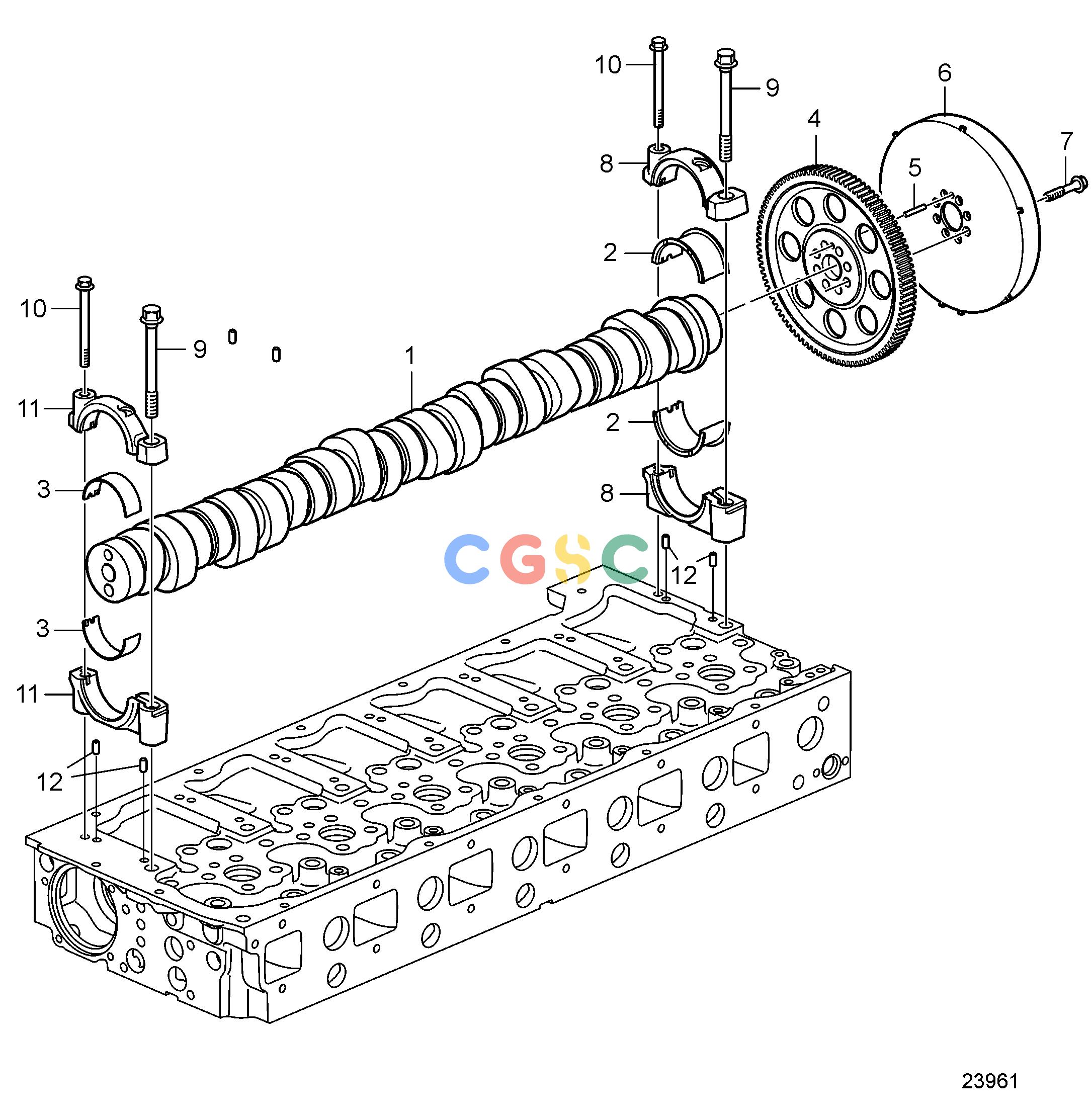

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)EngineCamshaftEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20451775
|
[1] |
Camshaft
|
|
| 2. |
8148037
|
[2] |
Bearing shell
|
Replaced by 21440994
|
| 2. |
21440994
|
[1] |
Camshaft bearing kit
|
|
| 3. |
8148038
|
[12] |
Bearing shell
|
Replaced by 21440997
|
| 3. |
21440997
|
[6] |
Camshaft bearing kit
|
|
| 4. |
8131386
|
[1] |
Gear
|
|
| 5. |
950551
|
[1] |
Pin
|
L=35mm
|
| 6. |
20450049
|
[1] |
Vibration damper
|
|
| 7. |
8131597
|
[6] |
Flange screw
|
|
| 8. |
3161082
|
[1] |
Bearing housing
|
|
| 9. |
20412482
|
[7] |
Flange screw
|
|
| 10. |
975105
|
[7] |
Flange screw
|
|
| 11. |
3161079
|
[6] |
Bearing housing
|
|
| 12. |
950542
|
[1] |
Pin
|
L=25mm
|
