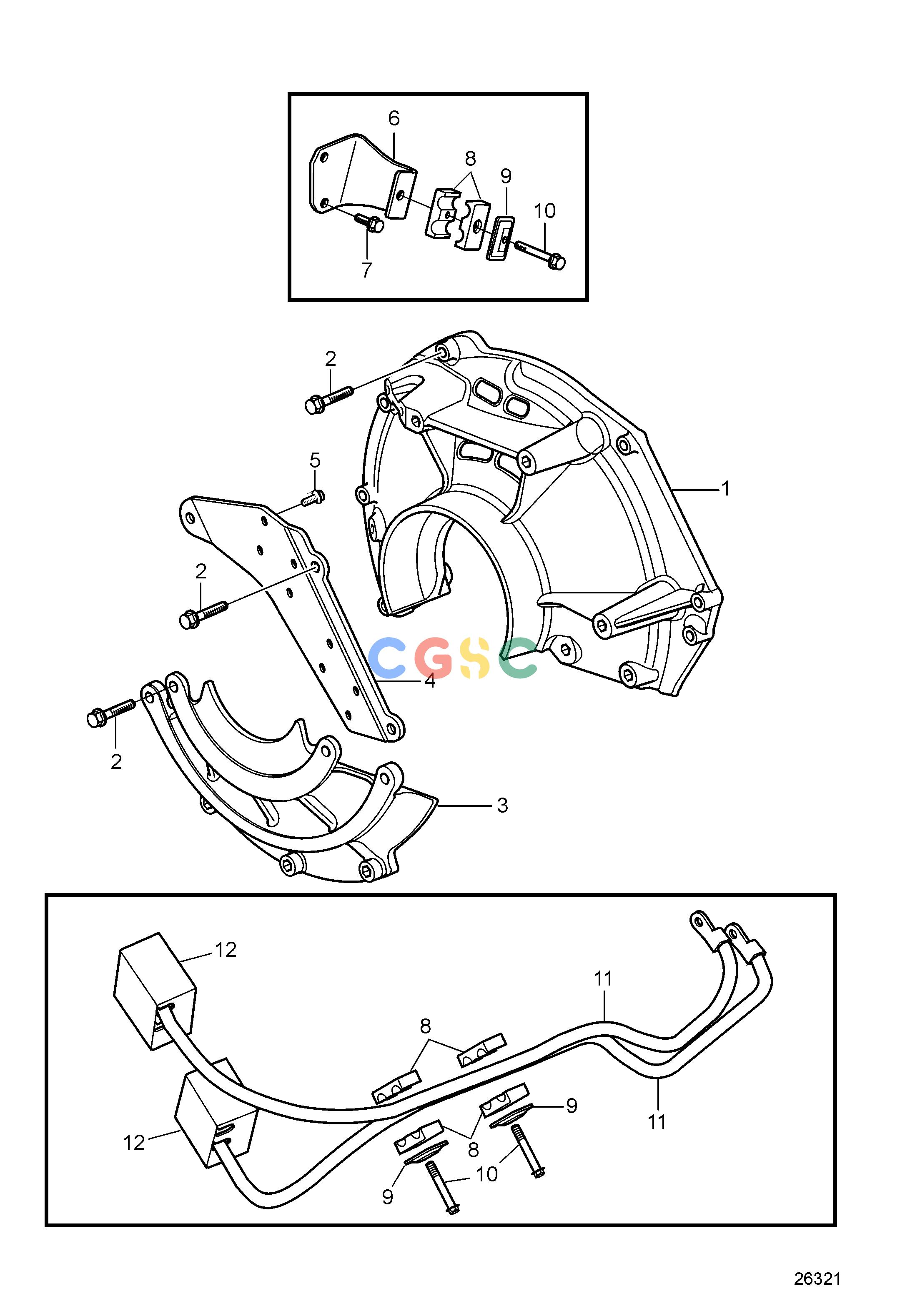

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)EngineCover. Shaft protectionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
344 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21212786
|
[1] |
Cover
|
|
| 2. |
984756
|
[13] |
Flange screw
|
|
| 3. |
21211313
|
[1] |
Bracket
|
|
| 4. |
21287112
|
[1] |
Bracket
|
|
| 5. |
984733
|
[8] |
Flange screw
|
|
| 6. |
21303334
|
[1] |
Bracket
|
|
| 7. |
984752
|
[2] |
Flange screw
|
|
| 8. |
21231524
|
[6] |
Attaching clamp
|
|
| 9. |
21231527
|
[3] |
Cover
|
|
| 10. |
994386
|
[3] |
Flange screw
|
|
| 11. |
21103353
|
[1] |
Cable kit
|
|
| 12. |
3885093
|
[2] |
Junction box
|
|
