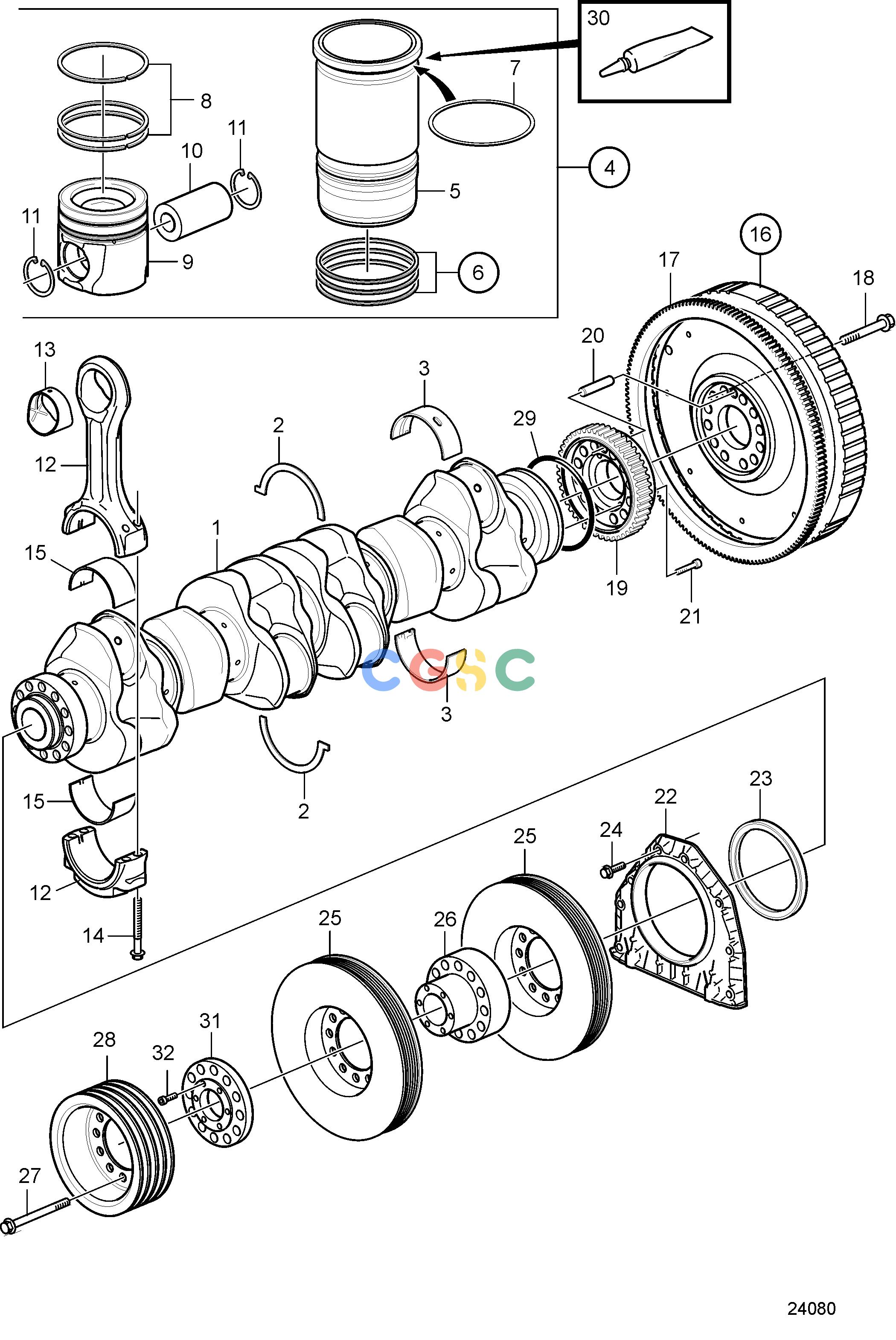

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)EngineCrank MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20585167
|
[1] |
Crankshaft
|
|
| 2. |
3093651
|
[1] |
Thrust washer kit
|
Std
|
| 2. |
3093652
|
[1] |
Thrust washer kit
|
O.S=0,1mm
|
| 2. |
3093653
|
[1] |
Thrust washer kit
|
O.S=0,20mm
|
| 2. |
3093654
|
[1] |
Thrust washer
|
O.S=0,30mm
|
| 3. |
20867178
|
[7] |
Main bearing kit
|
Std (85103707)
|
| 3. |
85103708
|
[7] |
Main bearing kit
|
O.S=0,25mm
|
| 3. |
85103709
|
[7] |
Main bearing kit
|
O.S=0,50mm
|
| 3. |
85103711
|
[7] |
Main bearing kit
|
O.D=1,0mm
|
| 4. |
3593795
|
[6] |
Cylinder liner kit
|
|
| 5. |
|
|
|
|
| 6. |
85103699
|
[1] |
Gasket kit
|
|
| 6. |
|
|
|
Upper
|
| 7. |
20463853
|
[1] |
Shim
|
TH=0,2mm
|
| 7. |
20463854
|
[1] |
Shim
|
TH=0,3mm
|
| 7. |
20463855
|
[1] |
Shim
|
TH=0,5mm
|
| 8. |
85109662
|
[1] |
Kit
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
3848691
|
[1] |
Gudgeon pin
|
|
| 11. |
3161087
|
[2] |
Lock ring
|
|
| 12. |
20480806
|
[6] |
Connecting rod
|
|
| 13. |
|
|
|
|
| 14. |
8192804
|
[24] |
Flange screw
|
|
| 15. |
85109792
|
[6] |
Kit
|
Std
|
| 16. |
3849381
|
[1] |
Flywheel
|
|
| 17. |
3838729
|
[1] |
Gear ring
|
|
| 18. |
21340868
|
[12] |
Flange screw
|
|
| 19. |
8148111
|
[1] |
Gear
|
|
| 20. |
950658
|
[1] |
Pin
|
|
| 21. |
941761
|
[2] |
Hex. socket screw
|
|
| 22. |
20777233
|
[1] |
Cover
|
|
| 23. |
85108423
|
[1] |
Crankshaft seal
|
|
| 24. |
984736
|
[8] |
Flange screw
|
|
| 25. |
3847678
|
[2] |
Vibration damper
|
|
| 26. |
3586634
|
[1] |
Spacer ring
|
|
| 27. |
965196
|
[12] |
Flange screw
|
|
| 28. |
3837937
|
[1] |
Pulley
|
|
| 29. |
949736
|
[1] |
O-ring
|
|
| 30. |
1161231
|
[1] |
Sealant
|
304ml
|
| 30. |
1161277
|
[1] |
Sealant
|
20g
|
| 31. |
3809765
|
[1] |
Spacer ring
|
|
| 32. |
20483919
|
[6] |
Hex. socket screw
|
|
