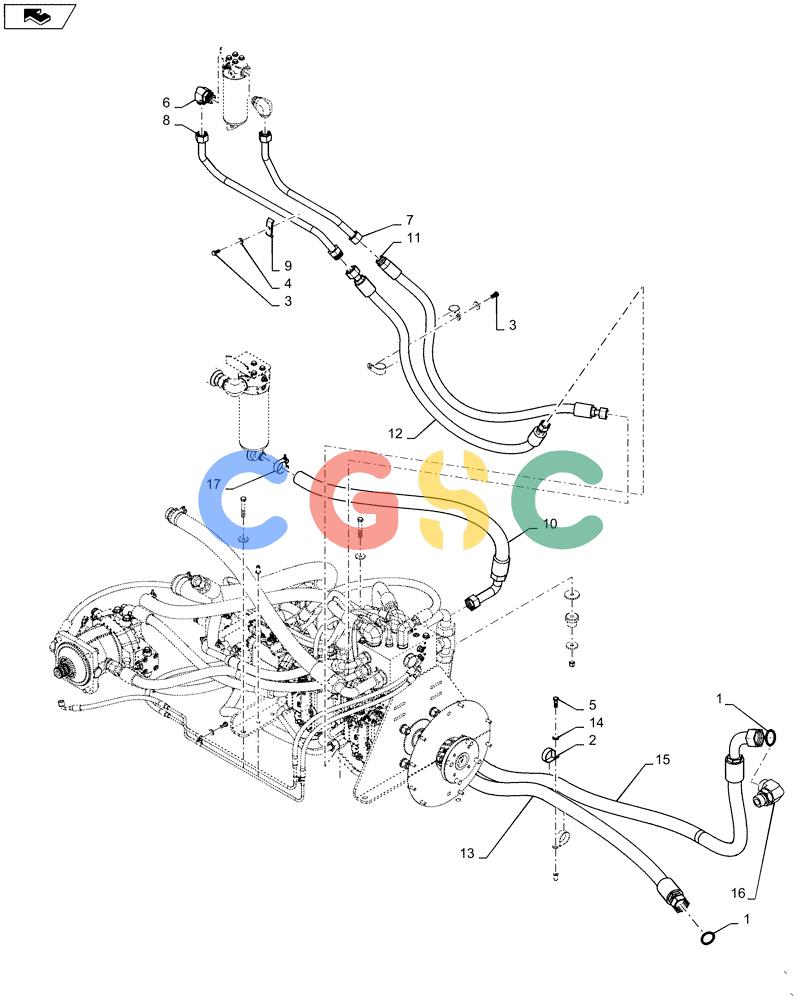

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (29.218.AO[04]) - HYDROSTATIC PUMP New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
151 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9824051 | [2] | O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro | WIN |
| 2. | 47634777 | [2] | CLAMP | BHB |
| 3. | 43139 | [1] | BOLT,M10 x 1.5 x 25mm, Cl 8.8 | NH Superseded by part number: 11106231, 11106231, BER43139 |
| 4. | 87687101 | [1] | WASHER,10.65mm ID x 31mm OD x 3.3mm Thk | IMO |
| 5. | 9706704 | [1] | BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8 | NH |
| 6. | 9846955 | [2] | 90 ELBOW | GI |
| 7. | 47598922 | [1] | TUBE | BURFilter to Pump FA |
| 8. | 47598942 | [1] | TUBE | BURPump FE to Filter |
| 9. | D40236 | [1] | CLAMP | CAS |
| 10. | 84424409 | [1] | HYDRAULIC HOSE,31.75mm ID x 1100mm L, SAE 100R4 | BURManifold to Tank |
| 11. | 47511394 | [1] | HOSE | BURFilter to FA |
| 12. | 84564374 | [1] | HYDRAULIC HOSE,25.4mm ID x 1364mm L, SAE 100R16 | BURFE to Filter |
| 13. | 47418719 | [1] | HOSE,31.5mm ID x 1788mm L, SAE 100R4 | BURManifold to Cooler |
| 14. | 87713132 | [1] | SPECIAL WASHER | BUR |
| 15. | 47431353 | [1] | HOSE,31.75mm ID x 2154.7mm L, SAE 100R4 | BURCooler to Manifold |
| 16. | 84989414 | [1] | NIPPLE | FAR |
| 17. | 214-2122 | [3] | CLAMP,39.62mm - 45.97mm | CAS |
