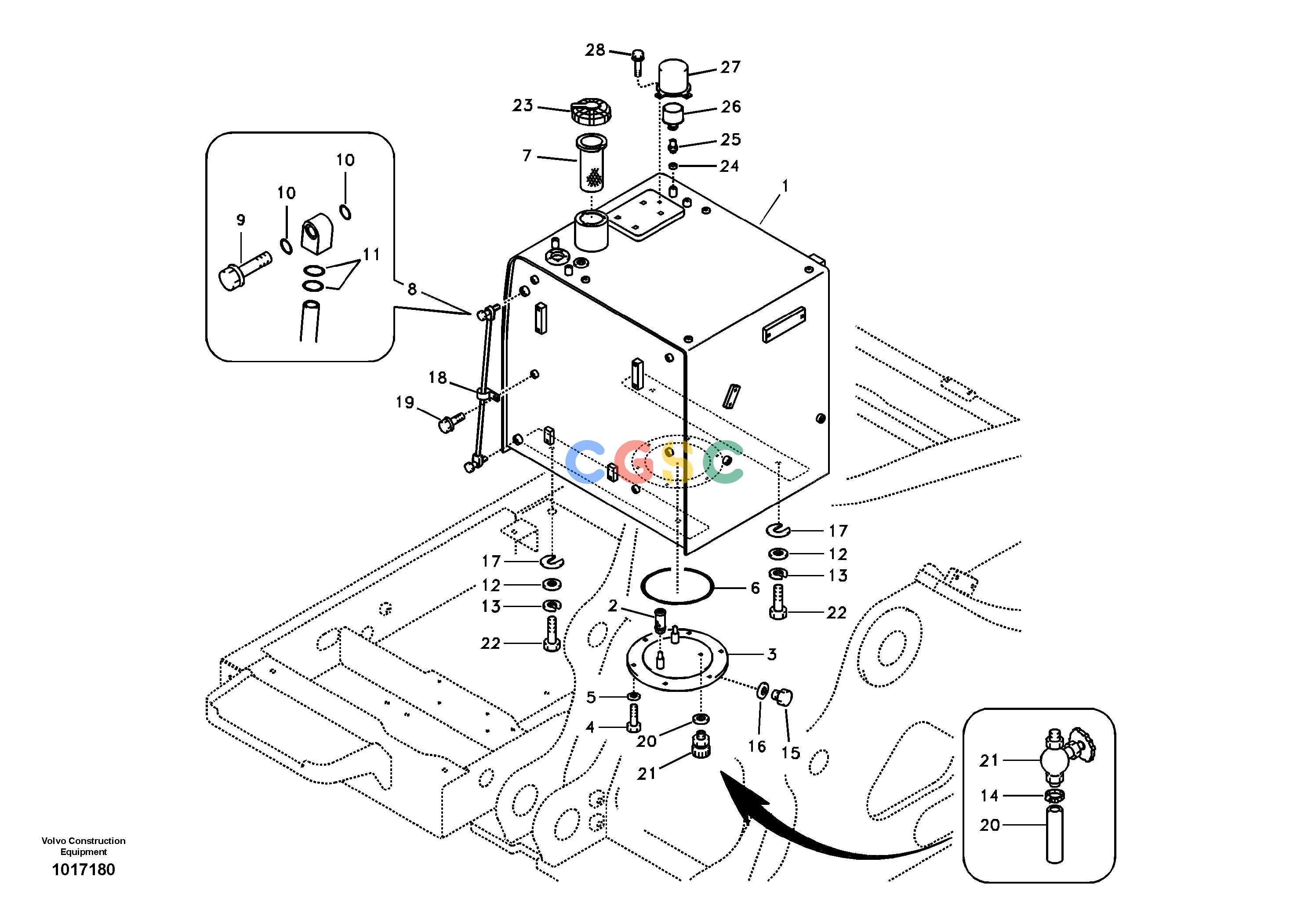

沃尔沃零件查询EC180B Fuel tank with fitting partsNone8278983-8277153NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
219 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14520731
|
[1] |
Fuel tank
|
SER NO 10001-10145
|
| |
VOE14530627
|
[1] |
Fuel tank
|
SER NO 10146-10378
|
| |
VOE14559359
|
[1] |
Fuel tank
|
SER NO 10379-
|
| 2. |
VOE14532260
|
[1] |
Strainer
|
|
| 3. |
VOE14617368
|
[1] |
Cover
|
|
| 4. |
VOE983251
|
[6] |
Hexagon screw
|
|
| 5. |
VOE992040
|
[6] |
Plain washer
|
|
| 6. |
VOE960259
|
[1] |
O-ring
|
|
| 7. |
VOE14537348
|
[1] |
Strainer
|
|
| 8. |
VOE14539976
|
[1] |
Level indicating pipe
|
SER NO 10001-10378
|
| |
VOE14539978
|
[1] |
Gauge
|
SER NO 10379-
|
| 9. |
VOE14517557
|
[2] |
Bolt
|
|
| 10. |
VOE983497
|
[4] |
O-ring
|
|
| 11. |
VOE990557
|
[4] |
O-ring
|
|
| 12. |
VOE60110287
|
[4] |
Washer
|
|
| 13. |
SA9213-20000
|
[4] |
Spring washer
|
|
| 14. |
SA9312-00006
|
[1] |
Hose clamp
|
SER NO 10001-10173
|
| 15. |
SA9415-22051
|
[1] |
Plug
|
|
| 16. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 17. |
VOE14881065
|
[5] |
Shim
|
|
| 18. |
VOE14500294
|
[1] |
Clip
|
SER NO 10001-10378
|
| 19. |
VOE946471
|
[1] |
Flange screw
|
SER NO 10001-10378
|
| 20. |
VOE14510696
|
[1] |
Hose
|
SER NO 10001-10173
|
| |
VOE949329
|
[1] |
Gasket
|
SER NO 10174-
|
| 21. |
VOE14510697
|
[1] |
Shut-off Cock
|
SER NO 10001-10173
|
| |
VOE14722461
|
[1] |
Draining valve
|
SER NO 10174-
|
| 22. |
VOE991647
|
[4] |
Hexagon screw
|
|
| 23. |
VOE14528922
|
|
Cap
|
Specific
|
| |
VOE14528919
|
|
Cap
|
Master
|
| 24. |
VOE947626
|
[1] |
Gasket
|
SER NO 10146-10227
|
| 25. |
VOE14537347
|
[1] |
Connector
|
|
| 26. |
VOE11172907
|
[1] |
Air filter
|
SER NO 10146-
|
| 27. |
VOE14529947
|
[1] |
Cover
|
|
| 28. |
VOE946441
|
[2] |
Flange screw
|
|
