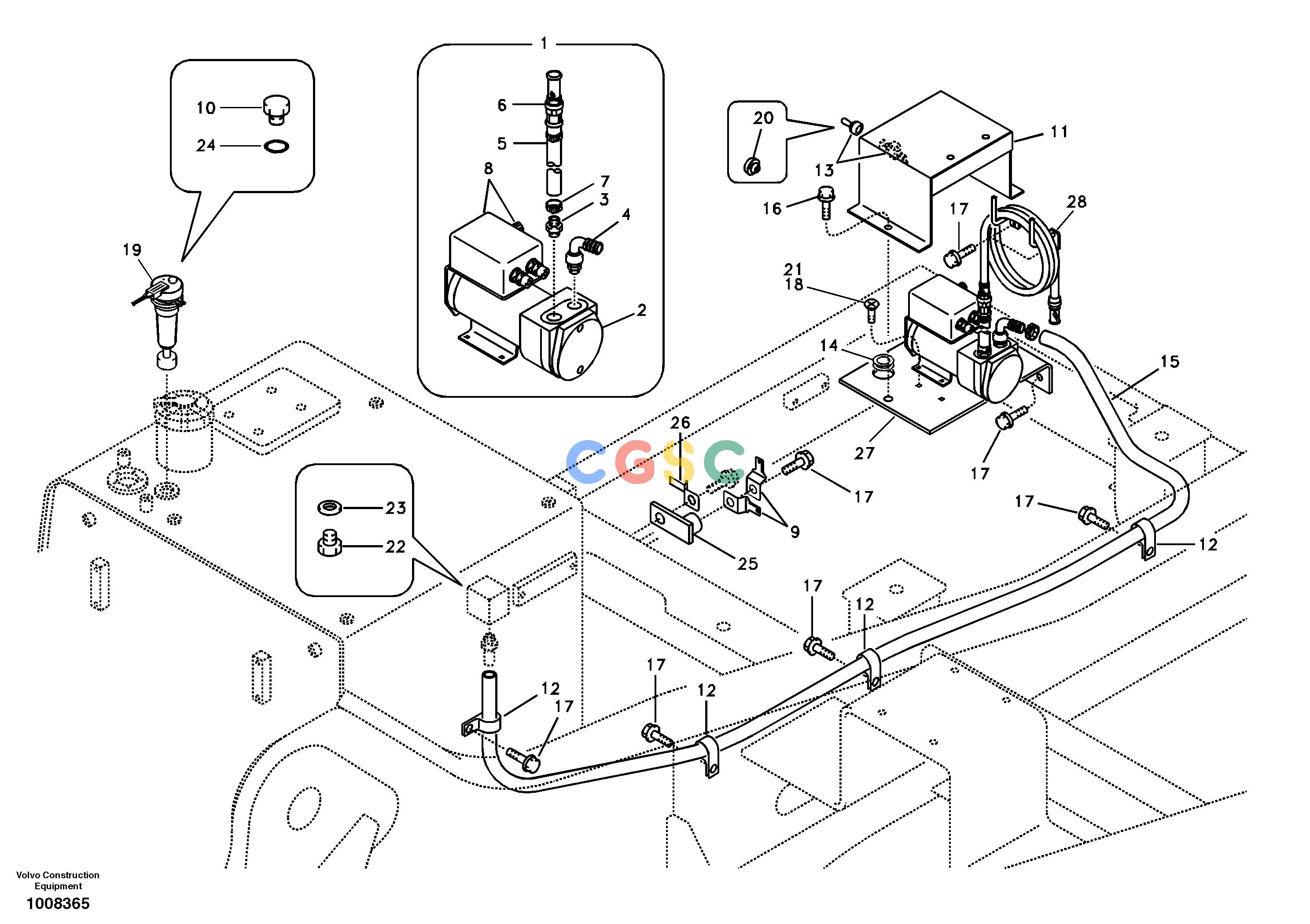

沃尔沃零件查询EC180B Fuel filling pump with assembling detailsNone8277127-8278384NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14517573
|
|
Refuelling pump
|
|
| |
VOE14544828
|
|
Fuel Fill Pump
|
|
| |
VOE14517654
|
|
Refuelling pump
|
|
| 2. |
VOE14517746
|
|
Refuelling pump
|
SER NO 10001-10367
|
| |
SA1128-00650
|
|
Fuel Fill Pump
|
|
| |
VOE14560302
|
|
Fuel pump
|
SER NO 10368-
|
| |
VOE14517746
|
|
Refuelling pump
|
SER NO 10368-
|
| 3. |
VOE14517747
|
|
Adapter
|
SER NO 10368-
|
| |
VOE14517747
|
|
Adapter
|
SER NO 10001-10367
|
| |
VOE14529317
|
|
Adapter
|
|
| 4. |
VOE14517748
|
|
Adapter
|
|
| |
VOE14529318
|
|
Adapter
|
|
| 5. |
VOE14517749
|
|
Hose
|
|
| |
VOE14517657
|
|
Hose
|
|
| 6. |
VOE14517753
|
|
Valve
|
|
| |
VOE11710987
|
|
Valve
|
|
| 7. |
VOE14517754
|
|
Clip
|
|
| |
VOE14517655
|
|
Clip
|
|
| 8. |
VOE14524955
|
|
Switch
|
|
| |
VOE11706627
|
|
Fuse
|
|
| 9. |
VOE14529136
|
[2] |
Clip
|
|
| 10. |
VOE14529323
|
[1] |
Plug
|
|
| 11. |
VOE14515791
|
|
Cover
|
|
| 12. |
VOE14500297
|
|
Clip
|
|
| |
VOE14500298
|
|
Clip
|
|
| 13. |
VOE14663553
|
|
Toggle switch
|
|
| 14. |
VOE14529352
|
|
Grommet
|
|
| 15. |
VOE14881118
|
|
Fuel hose
|
|
| |
VOE14529316
|
|
Hose
|
|
| 16. |
VOE946441
|
|
Flange screw
|
|
| 17. |
VOE946471
|
[1] |
Flange screw
|
|
| 18. |
VOE946934
|
|
Flange screw
|
|
| 19. |
VOE14508740
|
|
Sensor
|
Level
|
| 20. |
VOE14529399
|
|
Grommet
|
|
| 21. |
VOE60113094
|
|
Flange screw
|
|
| 22. |
VOE14515173
|
[1] |
Plug
|
|
| 23. |
VOE13947629
|
[1] |
Plane gasket
|
|
| 24. |
VOE990581
|
[1] |
O-ring
|
|
| 25. |
VOE14529334
|
[1] |
Bracket
|
|
| 26. |
VOE14881252
|
[1] |
Clip
|
|
| 27. |
VOE14515790
|
|
Bracket
|
|
| 28. |
VOE14529313
|
|
Stopping device
|
|
