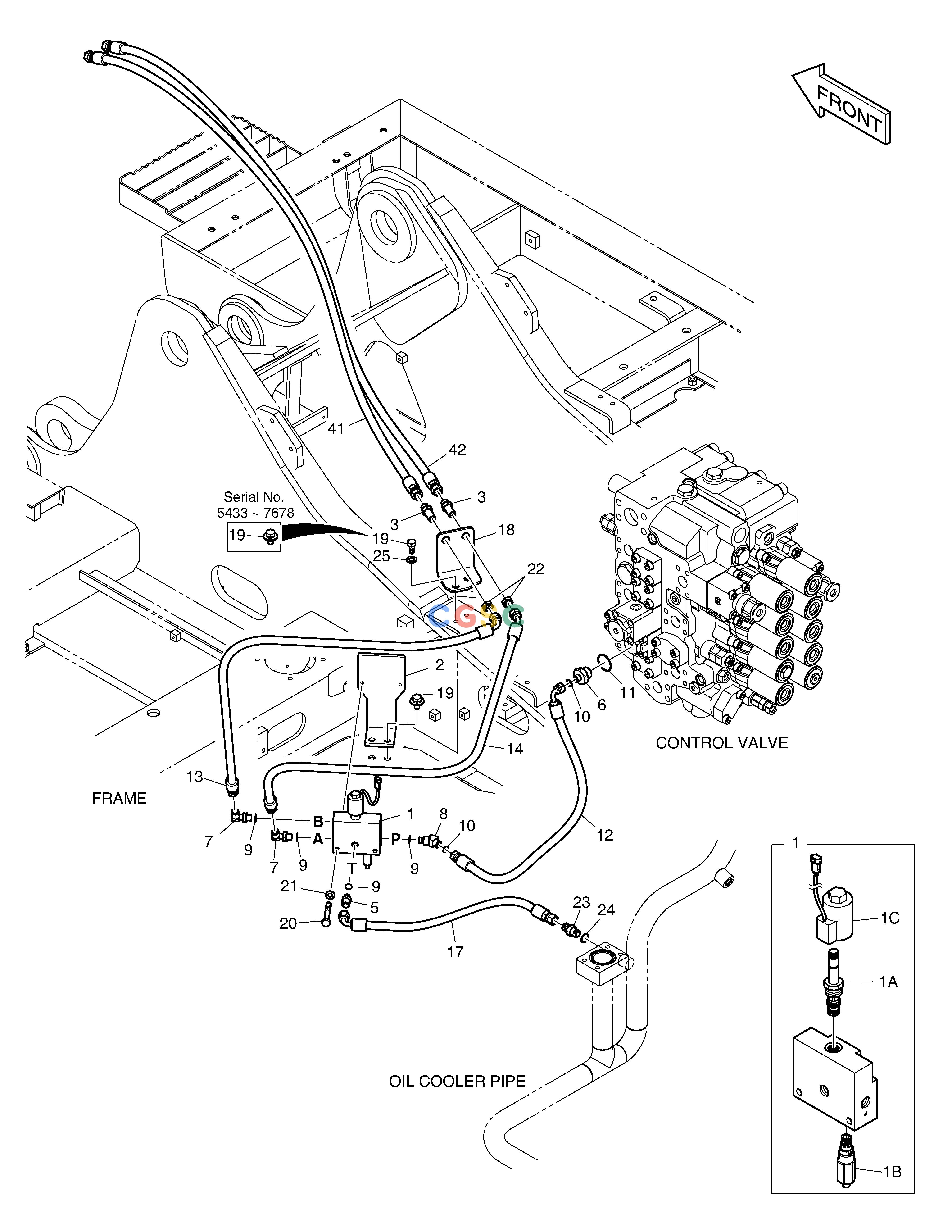

斗山零件查询MAIN PIPING - QUICK FIT DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
891 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027502A
|
[-] |
MAIN PIPING-QUICK FIT
|
|
| -. |
420212-03011
|
[-] |
|
|
| 1. |
426-00287
|
[1] |
VALVE;QUICK-FIT
|
426-00287B
|
| 1. |
426-00287B
|
[1] |
VALVE,QUICK-FIT
|
|
| 10. |
S8030061
|
[2] |
O-RING
|
|
| 11. |
S8000231
|
[1] |
O-RING
|
|
| 12. |
DS2013515
|
[1] |
HOSE
|
|
| 13. |
DS2054293
|
[1] |
HOSE
|
|
| 14. |
DS2054394
|
[1] |
HOSE
|
|
| 17. |
DS2093001
|
[1] |
HOSE
|
|
| 17. |
DS2093300
|
[1] |
HOSE
|
|
| 17. |
DS2093804
|
[1] |
|
|
| 18. |
K1000351A
|
[1] |
PLATE
|
|
| 19. |
DS0025019
|
[4] |
BOLT
|
|
| 19. |
S0515066
|
[4] |
BOLT
|
|
| 1A. |
410135-00109
|
[1] |
. VALVE,SOLENOID
|
|
| 1B. |
410126-00019
|
[1] |
. VALVE,REDUCING
|
|
| 1C. |
300715-00127
|
[1] |
|
|
| 2. |
195-03123E
|
[1] |
BRACKET
|
|
| 20. |
S0556466
|
[2] |
BOLT
|
|
| 21. |
S5102503
|
[2] |
. WASHER
|
|
| 22. |
121-00010D1
|
[2] |
NUT
|
|
| 23. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 24. |
S8000141
|
[1] |
O-RING
|
|
| 25. |
120804-00077
|
[4] |
WASHER
|
|
| 3. |
181-00078D1
|
[2] |
ADAPTER
|
|
| 41. |
DS2053868
|
[1] |
HOSE
|
|
| 42. |
DS2053869
|
[1] |
HOSE
|
|
| 5. |
2181-1126D85
|
[1] |
ADAPTER
|
|
| 6. |
DS2404024
|
[1] |
ADAPTER
|
|
| 7. |
2181-1702D3
|
[2] |
ELBOW
|
|
| 8. |
DS2338029
|
[1] |
ELBOW
|
|
| 9. |
S8000111
|
[4] |
O-RING
|
|
