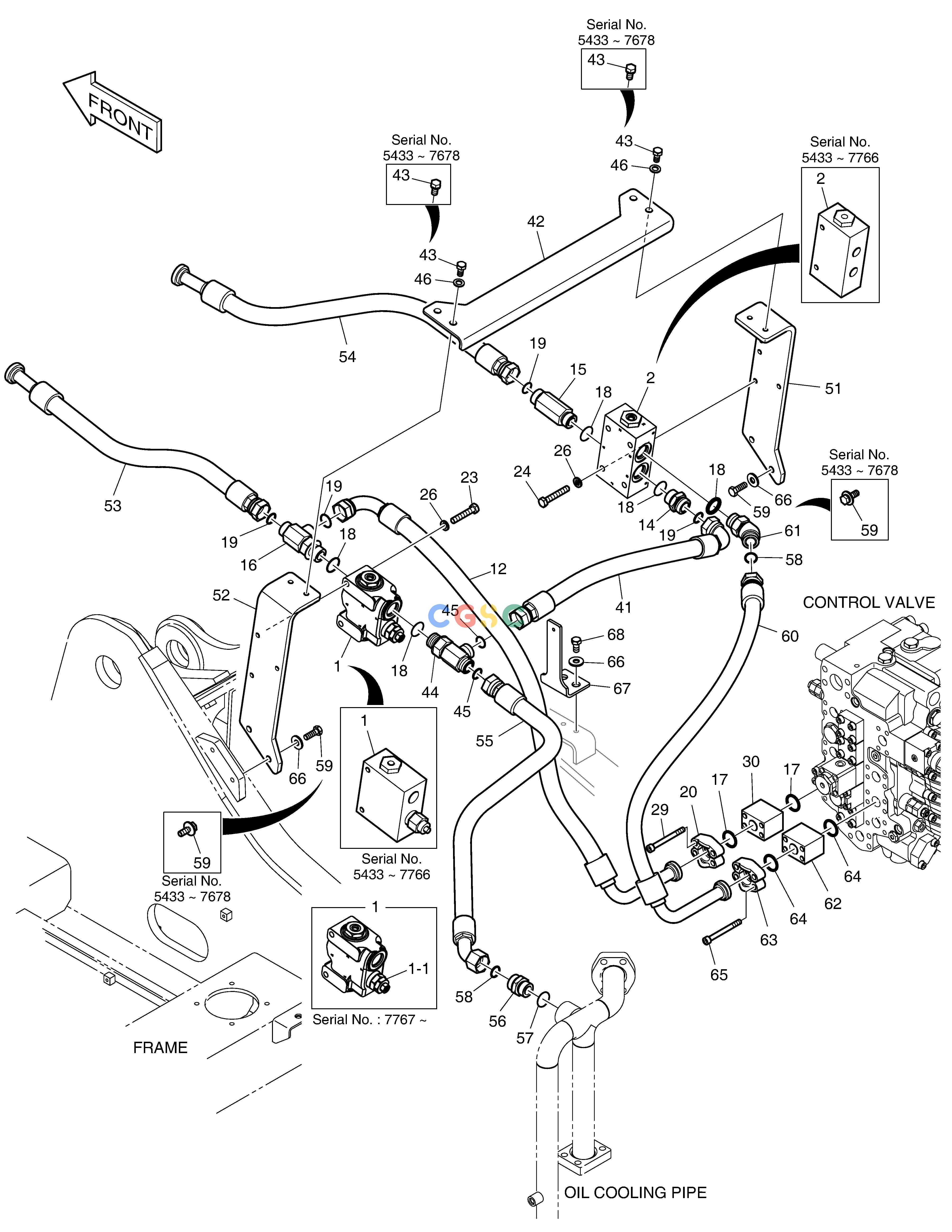

斗山零件查询MAIN PIPING - TWO WAY DX225LC (S/N 5433~) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 804 次

Pos.	Part No	Qty	Parts name	Comments
-.	K1044602A	[-]	MAIN PIPING-TWO WAY
1.	426-00248A	[1]	VALVE;SELECT	410132-00007
1.	410132-00007	[1]		410132-00025
1.	410132-00025	[1]	VALVE,SELECTOR
1-1.	410127-00463	[1]
12.	DS2026201	[1]	HOSE
14.	2181-4133D6	[1]	ADAPTER
15.	DS2232107	[1]	ADAPTER
16.	2181-2293D4	[1]	TEE
17.	2180-1026D19	[2]	O-RING
18.	S8000291	[5]	O-RING
19.	S8030161	[4]	O-RING
2.	426-00249A	[1]	VALVE;SELECT	410132-00008
2.	410132-00008	[1]
2.	410111-00130A	[1]	VALVE
20.	2181-9078	[2]	FLANGE;SPLIT
23.	S0561466	[2]	BOLT
24.	S0561266	[2]	BOLT
24.	S0561366	[2]	BOLT
26.	S5102703	[4]	WASHER
29.	S2213466	[4]	SOCKET-HEAD BOLT
30.	2181-2170	[1]	BLOCK;SPACER
41.	DS2013834	[1]	HOSE
42.	K1000358B	[1]	BRACKET
43.	DS0025019	[4]	BOLT
43.	S0515066	[4]	BOLT
44.	2181-2293D4	[1]	TEE	DS2376015
44.	DS2376015	[1]
45.	S8030161	[2]	O-RING
46.	120804-00077	[4]	WASHER
51.	195-03436B	[1]	BRACKET
52.	195-03435B	[1]	BRACKET
53.	DS2016055	[1]	HOSE
54.	DS2016055	[1]	HOSE
55.	DS2012387	[1]	HOSE
55.	DS2012216	[1]	HOSE
56.	2181-4133D6	[1]	ADAPTER
57.	S8000291	[1]	O-RING
58.	S8030161	[2]	O-RING
59.	DS0025020	[4]	BOLT
59.	S0515366	[4]	BOLT
60.	DS2018201	[1]	HOSE
61.	2181-2816D2	[1]	ELBOW
62.	2181-2170	[1]	BLOCK;SPACER
63.	2181-9078	[2]	FLANGE;SPLIT
64.	2180-1026D19	[2]	O-RING
65.	S2213466	[4]	SOCKET-HEAD BOLT
66.	120804-00079	[4]	WASHER
66.	120804-00079	[6]	WASHER
67.	110406-05157	[1]
68.	S0515066	[8]	BOLT
