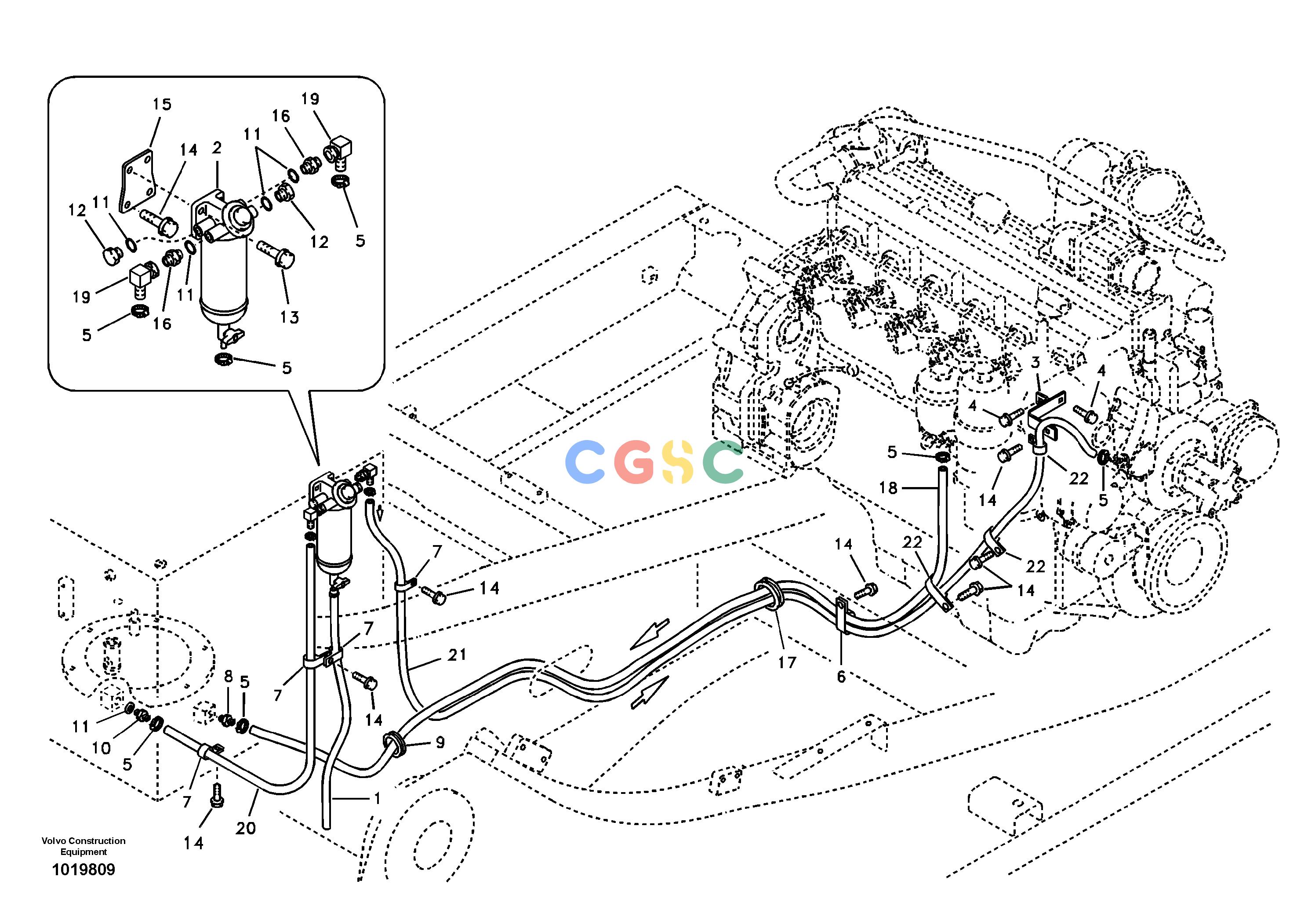

沃尔沃零件查询EC180B Fuel pipe - Fuel tankNone8278983-8280167 S/N 10229-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14881126
|
[1] |
Hose
|
|
| 2. |
VOE11110471
|
[1] |
Water separator
|
SER NO 10001-10132
|
| |
VOE11110670
|
[1] |
Water separator
|
SER NO 10133-10228
|
| |
VOE11110670
|
[0000] |
Water separator
|
SER NO 10229-
|
| |
VOE11110673
|
|
Water separator
|
SER NO 10229-
|
| |
VOE11713138
|
[1] |
Filter housing
|
|
| |
VOE3943382
|
[1] |
Bowl
|
|
| |
VOE11110736
|
|
Bowl
|
|
| |
VOE11110668
|
[1] |
Filter
|
SER NO 10001-10132
|
| |
VOE11110668
|
[1] |
Filter
|
SER NO 10133-
|
| 3. |
VOE14518856
|
[1] |
Bracket
|
|
| 4. |
VOE946544
|
[2] |
Flange screw
|
|
| 5. |
VOE943470
|
[7] |
Hose clamp
|
|
| 6. |
SA9316-02201
|
[2] |
Clip
|
SER NO 10001-10152
|
| |
SA9316-02201
|
[1] |
Clip
|
SER NO 10153-
|
| 7. |
VOE942810
|
[6] |
Clamp
|
SER NO 10001-10152
|
| |
VOE942810
|
[4] |
Clamp
|
SER NO 10153-
|
| 8. |
SA9411-08080
|
[1] |
Connector
|
|
| 9. |
VOE14529351
|
[1] |
Grommet
|
|
| 10. |
VOE14880382
|
[1] |
Hose nipple
|
|
| 11. |
VOE13947622
|
[5] |
Plane gasket
|
|
| 12. |
SA9415-22051
|
[2] |
Plug
|
|
| 13. |
VOE60113094
|
[2] |
Flange screw
|
|
| 14. |
VOE946471
|
[9] |
Flange screw
|
|
| 15. |
VOE14520654
|
[1] |
Bracket
|
|
| 16. |
SA9412-22050
|
[2] |
Connector
|
|
| 17. |
SA9751-15016
|
[1] |
Grommet
|
|
| 18. |
VOE14548268
|
[1] |
Fuel hose
|
SER NO 10001-10286
|
| |
VOE14548268
|
[1] |
Fuel hose
|
SER NO 10287-
|
| 19. |
VOE14516446
|
[2] |
Elbow
|
|
| 20. |
VOE14881101
|
[1] |
Fuel hose
|
|
| 21. |
VOE14548262
|
[1] |
Fuel hose
|
SER NO 10001-10286
|
| |
VOE14548262
|
[1] |
Fuel hose
|
SER NO 10287-
|
| 22. |
VOE942810
|
[3] |
Clamp
|
SER NO 10153-10286
|
| |
SA9315-02201
|
[3] |
Clip
|
SER NO 10287-
|
