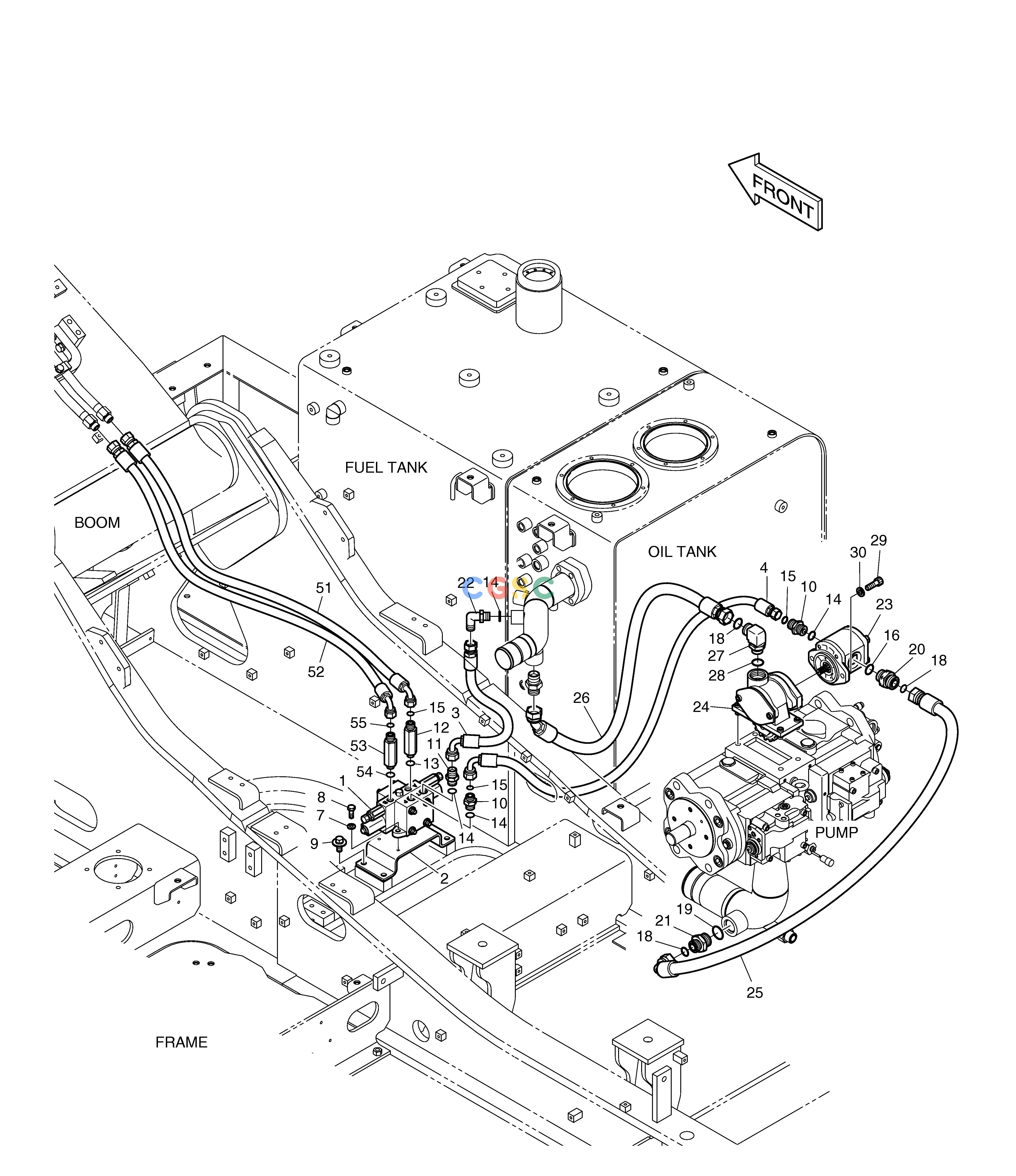

斗山零件查询MAIN PIPING-ROTATION DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
188 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027501
|
[-] |
MAIN PIPING;ROTATING
|
|
| 1. |
426-00284B
|
[1] |
VALVE;ONE SPOOL
|
|
| 10. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 11. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 12. |
DS2232108
|
[1] |
ADAPTER
|
|
| 13. |
S8000141
|
[1] |
O-RING
|
|
| 14. |
S8000181
|
[4] |
O-RING
|
|
| 15. |
S8030081
|
[3] |
O-RING
|
|
| 16. |
S8000231
|
[1] |
O-RING
|
|
| 18. |
S8030121
|
[3] |
O-RING
|
|
| 19. |
S8000291
|
[1] |
O-RING
|
|
| 2. |
K1000352A
|
[1] |
BRACKET
|
|
| 20. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 21. |
2181-4133D12
|
[1] |
ADAPTER
|
DS2232003
|
| 21. |
DS2232003
|
[1] |
ADAPTER
|
|
| 22. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 23. |
K1000410
|
[1] |
PUMP;GEAR
|
|
| 24. |
K1001252B
|
[1] |
PTO ASS'Y
|
K1006551
|
| 24. |
K1006551
|
[1] |
PTO ASS'Y
|
|
| 25. |
2184-1197D31
|
[1] |
HOSE
|
|
| 26. |
DS2012392
|
[1] |
HOSE
|
|
| 27. |
2181-2294D2
|
[1] |
ELBOW
|
|
| 28. |
S8000241
|
[1] |
O-RING
|
|
| 29. |
S2212266
|
[2] |
BOLT
|
|
| 3. |
DS2055292
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 30. |
S5102603
|
[2] |
. WASHER
|
|
| 4. |
DS2013517
|
[1] |
HOSE
|
|
| 51. |
DS2013672
|
[1] |
HOSE
|
|
| 52. |
DS2013672
|
[1] |
HOSE
|
|
| 53. |
DS2232108
|
[1] |
ADAPTER
|
|
| 54. |
S8000141
|
[1] |
O-RING
|
|
| 55. |
S8030081
|
[1] |
O-RING
|
|
| 7. |
S5110503
|
[3] |
WASHER
|
|
| 7. |
S5102503
|
[3] |
. WASHER
|
|
| 8. |
S2209066
|
[3] |
BOLT
|
|
| 8. |
S0508966
|
[3] |
BOLT
|
|
| 9. |
DS0025017
|
[4] |
BOLT
|
|
