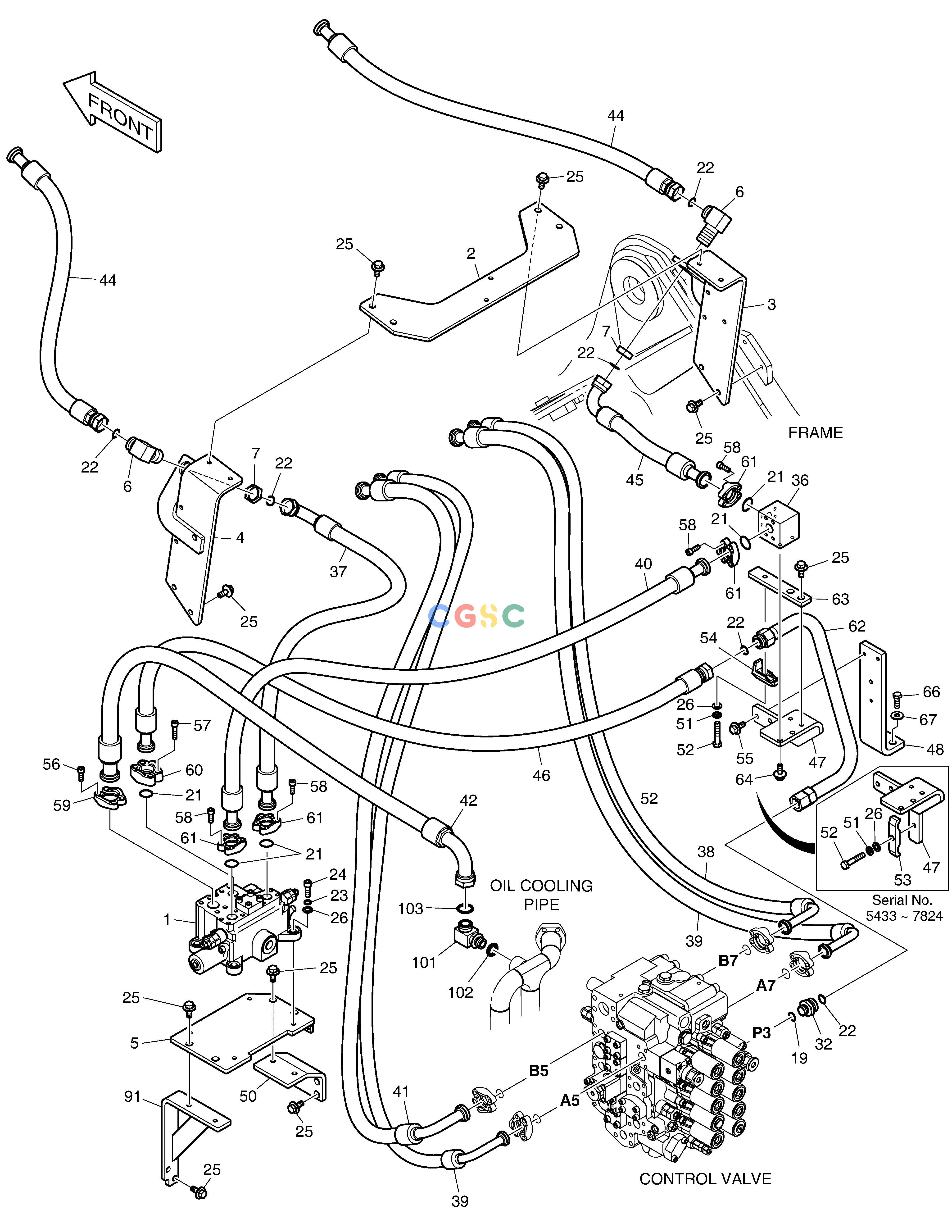

斗山零件查询MAIN PIPING-ARTI.BOOM DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
595 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044632
|
[-] |
ARTI BOOM PIPING
|
|
| 1. |
K1033235A
|
[1] |
VALVE;CONTROL
|
|
| 101. |
DS2304096
|
[1] |
ELBOW
|
|
| 102. |
S8000291
|
[1] |
O-RING
|
|
| 103. |
2180-1026D37
|
[1] |
O-RING
|
|
| 19. |
S8000241
|
[1] |
O-RING
|
|
| 2. |
K1023207B
|
[1] |
BRACKET
|
|
| 21. |
2180-1026D19
|
[5] |
O-RING
|
|
| 22. |
S8030161
|
[6] |
O-RING
|
|
| 23. |
S5110703
|
[4] |
WASHER
|
|
| 24. |
S2215366
|
[4] |
BOLT
|
|
| 25. |
DS0025020
|
[20] |
BOLT
|
|
| 26. |
S5010713
|
[6] |
WASHER;PLAIN
|
|
| 26. |
S5010713
|
[5] |
WASHER;PLAIN
|
|
| 3. |
K1023208A
|
[1] |
BRACKET
|
|
| 32. |
DS2232232
|
[1] |
ADAPTER
|
|
| 36. |
423-00180
|
[1] |
BLOCK
|
|
| 37. |
DS2025095
|
[1] |
HOSE
|
|
| 38. |
DS2040690
|
[1] |
HOSE
|
|
| 38. |
DS2040580
|
[1] |
HOSE
|
|
| 39. |
DS2040691
|
[2] |
HOSE
|
|
| 4. |
K1023209A
|
[1] |
BRACKET
|
|
| 40. |
DS2038252
|
[1] |
HOSE
|
|
| 41. |
DS2040689
|
[1] |
HOSE
|
|
| 42. |
DS2025094
|
[1] |
HOSE
|
|
| 44. |
DS2016110
|
[2] |
HOSE
|
|
| 45. |
DS2025096
|
[1] |
HOSE
|
|
| 46. |
DS2016109
|
[1] |
HOSE
|
|
| 47. |
K1029830
|
[1] |
BRACKET
|
|
| 47. |
110420-01308
|
[1] |
|
|
| 48. |
K1029829
|
[1] |
BRACKET
|
|
| 5. |
K1024011C
|
[1] |
BRACKET
|
|
| 50. |
K1029831B
|
[1] |
BRACKET
|
|
| 51. |
S5102703
|
[2] |
WASHER
|
|
| 51. |
S5102703
|
[1] |
WASHER
|
|
| 52. |
S0561066
|
[2] |
BOLT
|
|
| 52. |
S0561066
|
[1] |
BOLT
|
|
| 53. |
2124-1025D5
|
[1] |
CLAMP;PIPE
|
|
| 54. |
2124-1026D3
|
[1] |
CLAMP;PIPE
|
|
| 55. |
DS0025034
|
[2] |
BOLT
|
|
| 56. |
S2215266
|
[4] |
BOLT
|
|
| 57. |
S2215466
|
[4] |
BOLT
|
|
| 58. |
S2212266
|
[16] |
BOLT
|
|
| 59. |
4215-1003D7
|
[2] |
FLANGE;HALF
|
|
| 6. |
DS2290010
|
[2] |
ELBOW
|
|
| 60. |
2181-9081
|
[2] |
FLANGE;SPLIT
|
|
| 61. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 62. |
K1029852
|
[1] |
PIPE
|
|
| 62. |
420207-03839
|
[1] |
|
|
| 63. |
K1029832
|
[1] |
BRACKET
|
|
| 64. |
DS0025016
|
[2] |
BOLT
|
|
| 66. |
S0515366
|
[2] |
BOLT
|
|
| 67. |
120804-00079
|
[2] |
WASHER
|
|
| 7. |
121-00010D9
|
[2] |
NUT
|
|
| 91. |
K1029828A
|
[1] |
BRACKET
|
|
