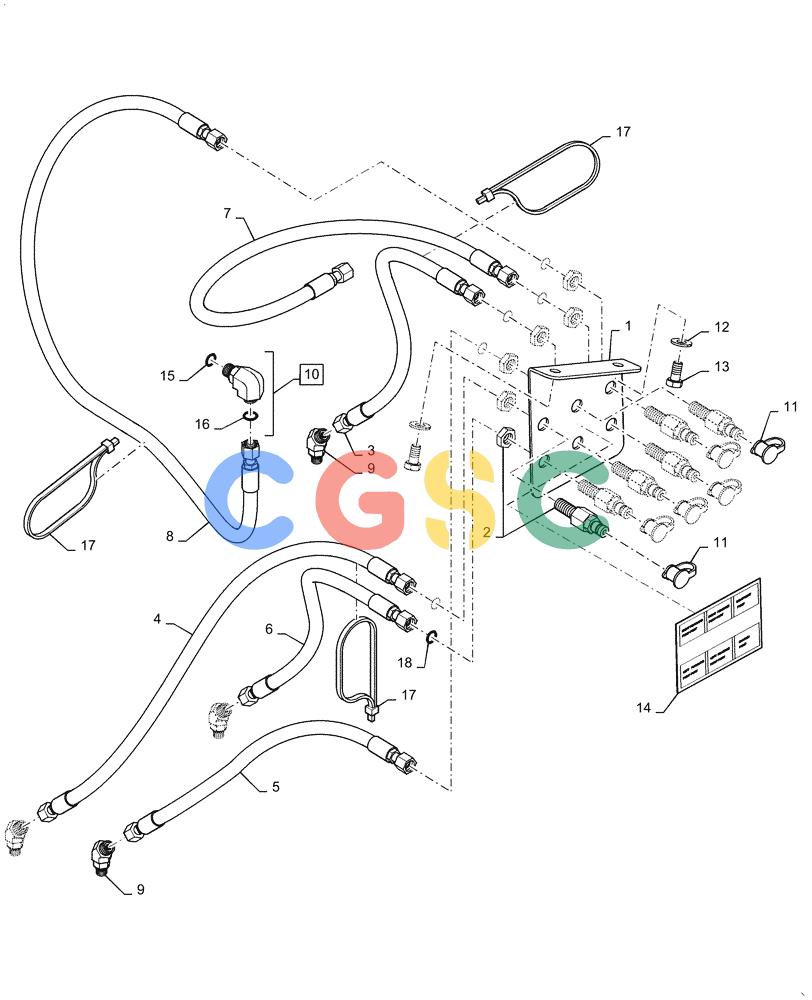

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (35.525.AA[02]) - DIAGNOSTIC HOSE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
579 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87604302 | [1] | MOUNTING PLATE | BURDiagnostic |
| 2. | 47376296 | [6] | NIPPLE | BURDiagnostic Bulkhead |
| 3. | 47594710 | [1] | HOSE | BURDiagnostic Left Reverse Superseded by part number: 47620322 |
| 4. | 47595361 | [1] | HOSE | BURDiagnostic Right Forward |
| 5. | 47595372 | [1] | HOSE | BURDiagnostic Right Reverse |
| 6. | 47594913 | [1] | HOSE | BURDiagnostic Left Forward Superseded by part number: 47620288 |
| 7. | 47547429 | [1] | HOSE | BURDiagnostic Charge Pressure |
| 8. | 47548478 | [1] | HOSE,6.35mm ID x 1374mm L, SAE 100R16 | BURDiagnostic Equipment |
| 9. | 201-331 | [4] | ELBOW,45º, 9/16"-18 x 7/16"-20. Adj, ORFS | CAS |
| 10. | 201-303 | [1] | ELBOW,90º, 9/16"-18 x 7/16"-20 Adj, ORFS | CASIncl 15, 16 Superseded by part number: 87681199 |
| 11. | H434163 | [6] | DUST CAP | CAS Superseded by part number: 86502604 |
| 12. | 87655046 | [2] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BURM10 x 10.65 x 23.0 x 2.2 Hts Boron |
| 13. | 43138 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8 | NH |
| 14. | 87435632 | [1] | DECAL | BURDiagnostics |
| 15. | 238-6011 | [7] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro | CAS Superseded by part number: 9825770 |
| 16. | 9617873 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | NH |
| 17. | L18331 | [7] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
