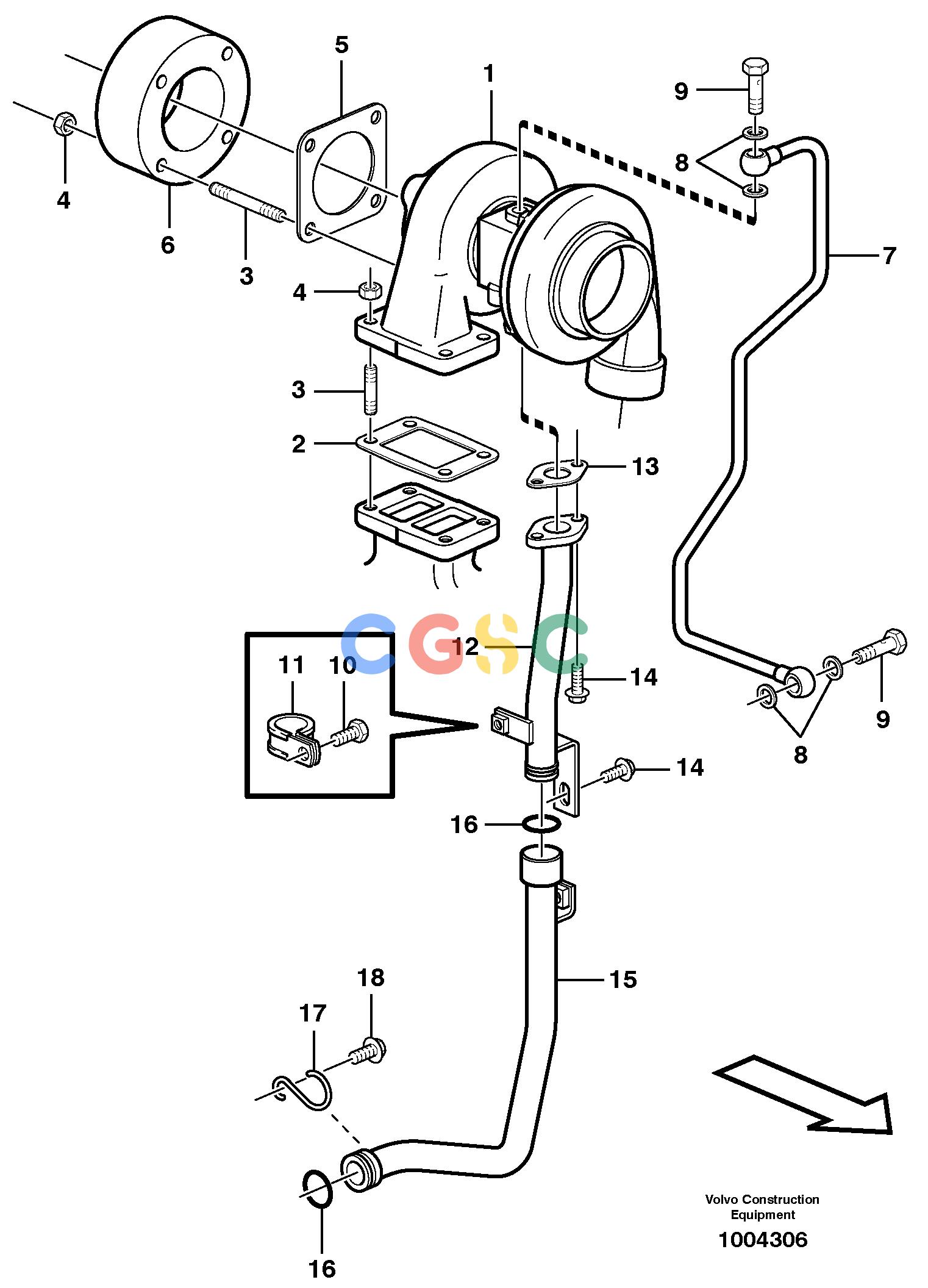

沃尔沃零件查询EC180B Turbocharger with fitting partsNone8278916-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
736 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20515585
|
[1] |
Turbocharger
|
|
| 2. |
VOE20405970
|
[1] |
Gasket
|
|
| 3. |
VOE20412314
|
[8] |
Stud
|
|
| 4. |
VOE20412308
|
[8] |
Hexagon nut
|
|
| 5. |
VOE20405969
|
[2] |
Gasket
|
|
| 6. |
VOE20459237
|
[1] |
Flange
|
|
| 7. |
VOE20459187
|
[1] |
Oil line
|
|
| 8. |
VOE21022795
|
[4] |
Sealing ring
|
|
| 9. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 10. |
VOE20405792
|
[1] |
Screw
|
|
| 11. |
VOE20450987
|
[1] |
Clamp
|
|
| 12. |
VOE20521749
|
[1] |
Return line
|
|
| 13. |
VOE21242584
|
[1] |
Gasket
|
|
| 14. |
VOE20405885
|
[2] |
Screw
|
|
| 15. |
VOE20521748
|
[1] |
Return line
|
|
| 16. |
VOE20405822
|
[2] |
Sealing ring
|
|
| 17. |
VOE21524802
|
[1] |
Hook
|
|
| 18. |
VOE20405792
|
[1] |
Screw
|
|
