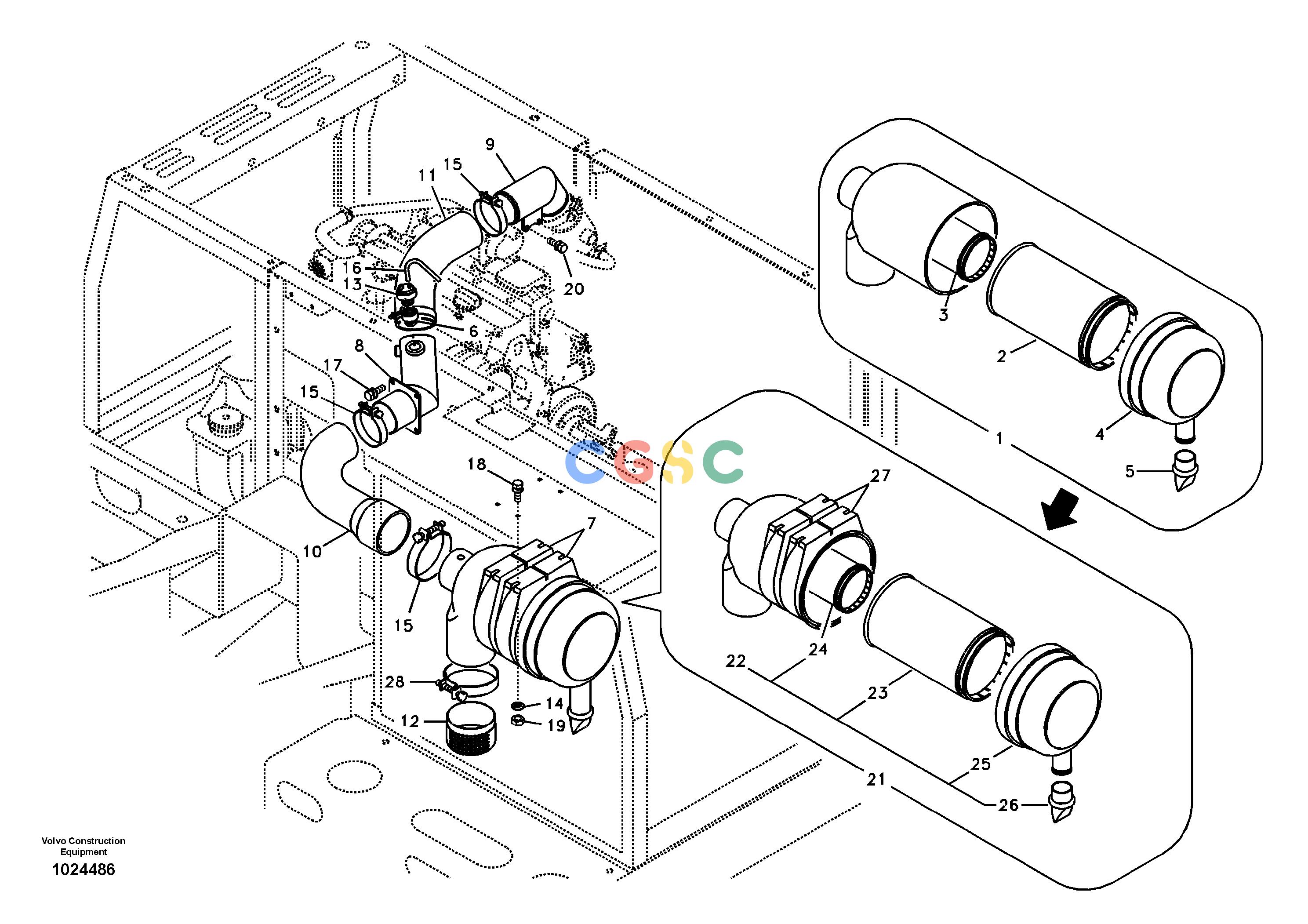

沃尔沃零件查询EC180B Inlet systemNone8278983-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
452 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14505986
|
[1] |
Air cleaner
|
SER NO 10001-10206
|
| 2. |
VOE11110283
|
[1] |
Air filter
|
SER NO 10001-10206
|
| 3. |
VOE11110284
|
[1] |
Air filter
|
SER NO 10001-10206
|
| 4. |
VOE11709257
|
[1] |
End plate
|
SER NO 10001-10206
|
| 5. |
VOE11701952
|
[1] |
Valve
|
SER NO 10001-10206
|
| 6. |
VOE14506431
|
[1] |
Connecting bellows
|
|
| 7. |
VOE14505988
|
[2] |
Band
|
SER NO 10001-10206
|
| 8. |
VOE14518259
|
[1] |
Connector
|
|
| 9. |
VOE14516271
|
[1] |
Connector
|
|
| 10. |
VOE14515729
|
[1] |
Hose
|
|
| 11. |
VOE14518258
|
[1] |
Hose
|
|
| 12. |
VOE14517184
|
[1] |
Screen
|
SER NO 10001-10335
|
| 13. |
VOE22996282
|
[1] |
Vacuum switch
|
Air
SER NO 10001-10252
|
| |
VOE22996282
|
[1] |
Vacuum switch
|
Air
SER NO 10253-
|
| 14. |
VOE993835
|
[4] |
Plain washer
|
|
| 15. |
VOE14883778
|
[0004] |
Hose clamp
|
|
| 16. |
VOE949800
|
[1] |
Hose
|
|
| 17. |
VOE946440
|
[4] |
Flange screw
|
|
| 18. |
VOE60113082
|
[4] |
Flange screw
|
|
| 19. |
VOE983303
|
[4] |
Hexagon nut
|
|
| 20. |
VOE60113250
|
[2] |
Flange screw
|
|
| 21. |
VOE14542153
|
[1] |
Air Cleaner
|
SER NO 10207-
|
| 22. |
VOE14505986
|
[1] |
Air cleaner
|
SER NO 10207-
|
| 23. |
VOE11110283
|
[1] |
Air filter
|
SER NO 10207-
|
| 24. |
VOE11110284
|
[1] |
Air filter
|
SER NO 10207-
|
| 25. |
VOE11701952
|
[1] |
Valve
|
SER NO 10207-
|
| 26. |
VOE11709257
|
[1] |
End plate
|
SER NO 10207-
|
| 27. |
VOE14530507
|
[2] |
Clamping band
|
SER NO 10207-
|
| 28. |
VOE14883778
|
[1] |
Hose clamp
|
SER NO 10001-10335
|
