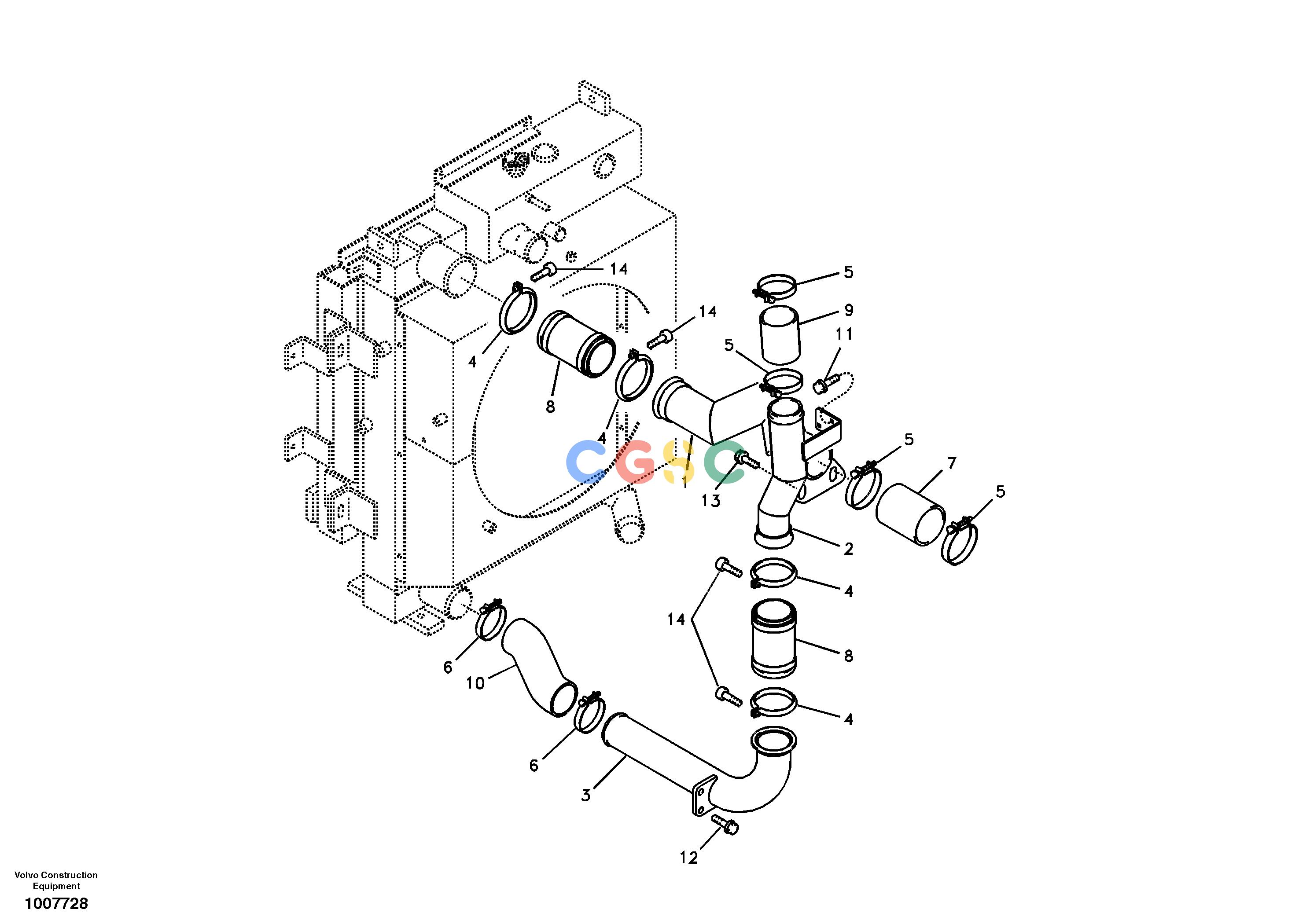

沃尔沃零件查询EC180B Charge air cooler, plumbingNone8278983-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
427 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14519716
|
[1] |
Pipe
|
|
| 2. |
VOE14518257
|
[1] |
Pipe
|
|
| 3. |
VOE14518255
|
[1] |
Pipe
|
|
| 4. |
VOE20739572
|
[4] |
V-clamp
|
|
| 5. |
SA9313-10300
|
[4] |
Hose clamp
|
|
| 6. |
SA9313-10263
|
[2] |
Hose clamp
|
|
| 7. |
VOE14512404
|
[1] |
Hose
|
|
| 8. |
VOE11110498
|
[2] |
Charge air hose
|
|
| 9. |
VOE11110354
|
[1] |
Charge air hose
|
|
| 10. |
VOE14515768
|
[1] |
Hose
|
|
| 11. |
VOE946173
|
[2] |
Flange screw
|
|
| 12. |
VOE946441
|
[2] |
Flange screw
|
|
| 13. |
VOE946441
|
[2] |
Flange screw
|
|
| 14. |
VOE969587
|
[4] |
Six point socket screw
|
SER NO 10001-10019
|
| |
VOE969589
|
[4] |
Six point socket screw
|
SER NO 10020-
|
