纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (35.741.AD[01]) - TILT CYLINDER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
956 次

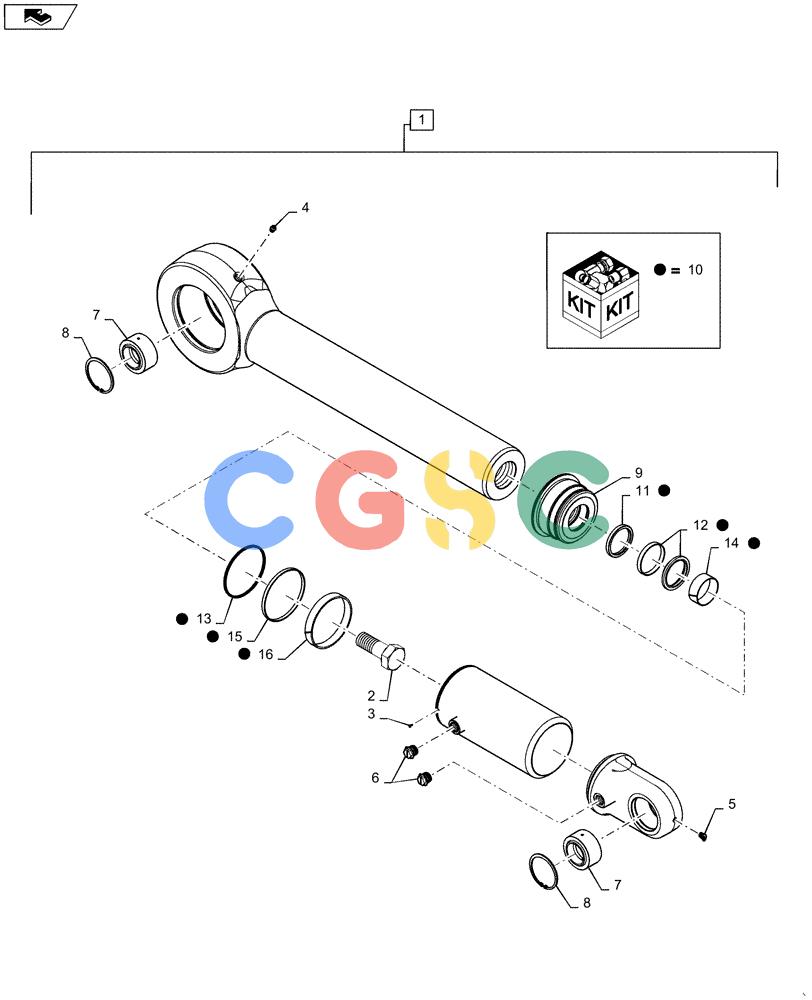

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84390531 | [1] | HYDRAULIC CYLINDER | BURTilt; Incl 2 - 9, 11 - 16 Superseded by part number: 47446374 |
| 1. | 47446374R | [1] | REMAN-HYD CYLINDER | BURReman for New PN 84390531 |
| 1. | 47446374C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 2. | 86982443 | [1] | SPECIAL BOLT | BUR |
| 3. | G109395 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | CAS Superseded by part number: 86642312 |
| 4. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 5. | 219-36 | [1] | LUBE NIPPLE,45º, 1/8" NPT x 7/8" lg | CAS Superseded by part number: 80717 |
| 6. | 353-780 | [2] | PLUG,Sltd Hd, 7/8"-14, w/O-Ring | CASShipping Superseded by part number: 86625121 |
| 7. | D23601 | [2] | HOUSING | CASSpherical Bearing 2.00" ID Superseded by part number: 86000739 |
| 8. | 100-21315 | [4] | SNAP RING,3.156", Int, #315 | CAS Superseded by part number: 9670291 |
| 9. | 84205602 | [1] | GLAND | BUR |
| 10. | 84479824 | [1] | SEAL KIT | BUR127.0 x 63.5; Incl 11 - 16 |
| 11. | D95146 | [1] | WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk | CAS |
| 12. | 1542879C1 | [1] | SEAL KIT | IH |
| 13. | 87615485 | [1] | SEAL,118.72mm ID x 125.88mm OD x 4.85mm Thk | BURStatic Head |
| 14. | G109908 | [1] | BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L | CASRod Bearing |
| 15. | 87715789 | [1] | SEAL | BURPiston; 4-Piece; 127.0 Bore |
| 16. | G102090 | [1] | RING | CASWear |
