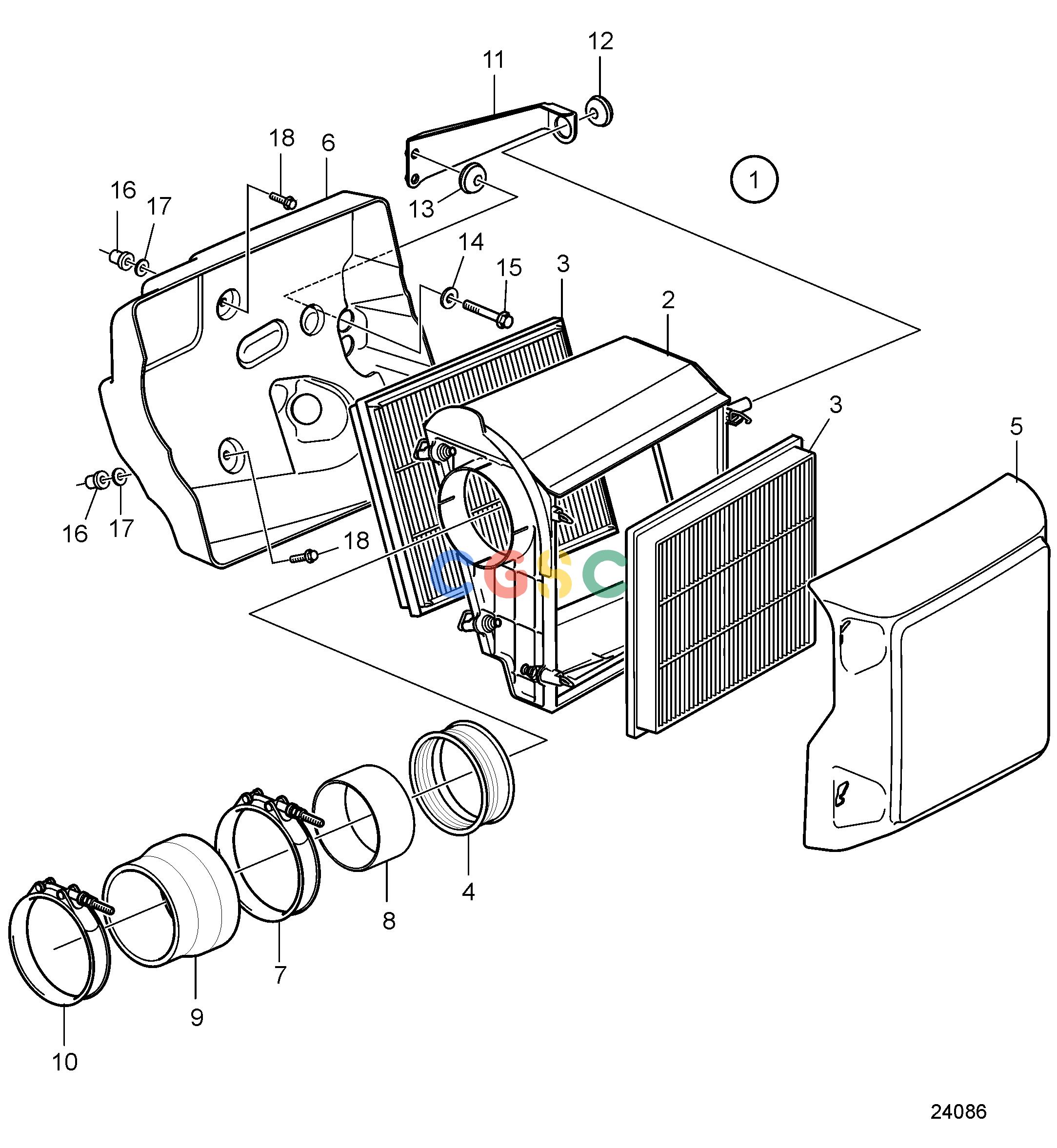

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Intake and Exhaust SystemAir FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
797 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21111213
|
[1] |
Air cleaner
|
|
| 2. |
3808327
|
[1] |
Housing
|
|
| 3. |
3818541
|
[2] |
Insert
|
|
| 4. |
3808001
|
[1] |
Gasket
|
|
| 5. |
40005821
|
[1] |
Sound trap
|
|
| 6. |
40005827
|
[1] |
Sound trap
|
|
| 7. |
1544734
|
[1] |
Hose clamp
|
|
| 8. |
3847923
|
[1] |
Back-up ring
|
|
| 9. |
3595436
|
[1] |
Rubber collar
|
|
| 10. |
1544733
|
[1] |
Hose clamp
|
|
| 11. |
3888871
|
[1] |
Anchorage
|
|
| 12. |
990240
|
[1] |
Grommet
|
|
| 13. |
992404
|
[2] |
Grommet
|
|
| 14. |
992404
|
[2] |
Grommet
|
|
| 15. |
994386
|
[2] |
Flange screw
|
|
| 16. |
930760
|
[2] |
Expanding nut
|
|
| 17. |
976943
|
[2] |
Washer
|
|
| 18. |
984727
|
[2] |
Flange screw
|
|
